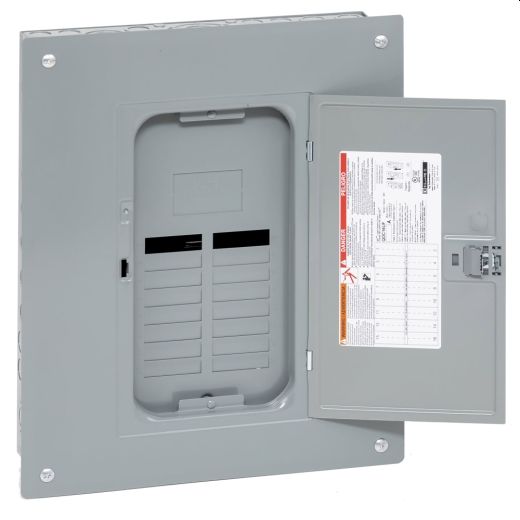

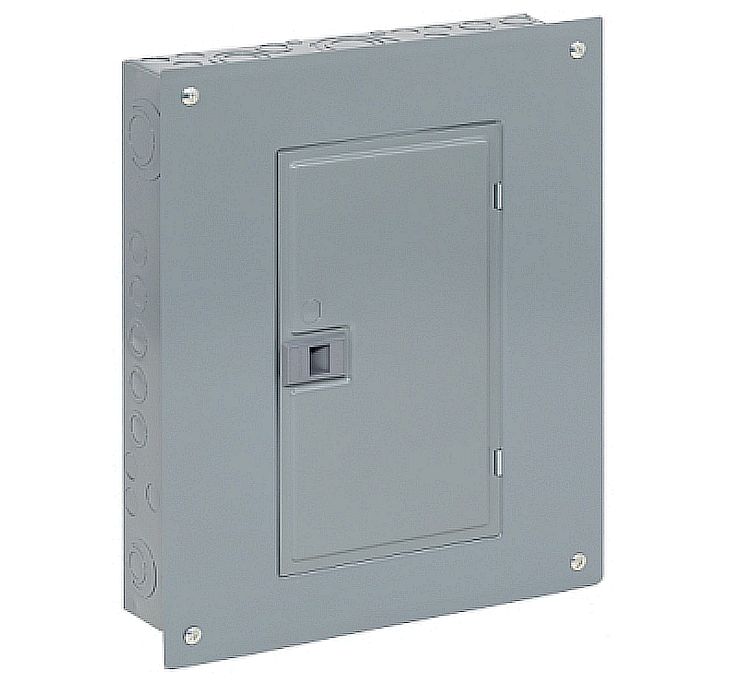

125-Amp QO™ Load Center
- Mfg.#
- QO112L125PGC
- Sku#
- 990937
* Estimated stock levels as of Thu, Feb 26, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
QO™ Load Centers offer premium features by allowing QO™ breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO™ Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO™ Load Centers enable the use of a full complement of accessories. This 1 phase load center has 12 spaces and 24 circuits. This system provides 125A convertible main lugs in a NEMA 1 enclosure. It also includes plug on neutral, ground bar, combination cover, and UL rated.
Specifications
General
| Amps | 125 |
|---|---|
| Box Size | 6 |
| Bus Bar Material | Tin-plated, copper |
| Color | Gray |
| Cover Type | Combination flush/surface cover |
| Enclosure Rating | NEMA 1 for indoor |
| Grounding Type | Grounding bar included (not installed) |
| Includes | Grounding bar included (not installed) |
| Indoor/Outdoor | Indoor |
| Load Centers & Distribution Type | Main Lug Load Center |
| Maximum Single Pole Circuits | 24 |
| Maximum Tandem Circuits | 12 |
| Misc | Ambient Air Temperature for Operation:23 °F (-5 °C), 104 °F (40 °C) |
| Number of Circuits | 12 |
| Number of Phases | 1 |
| Provided Equipment | Grounding bar, Cover |
| Spaces | 12 |
| Type | Main Lug Load Center |
| Volts | 120/240 |

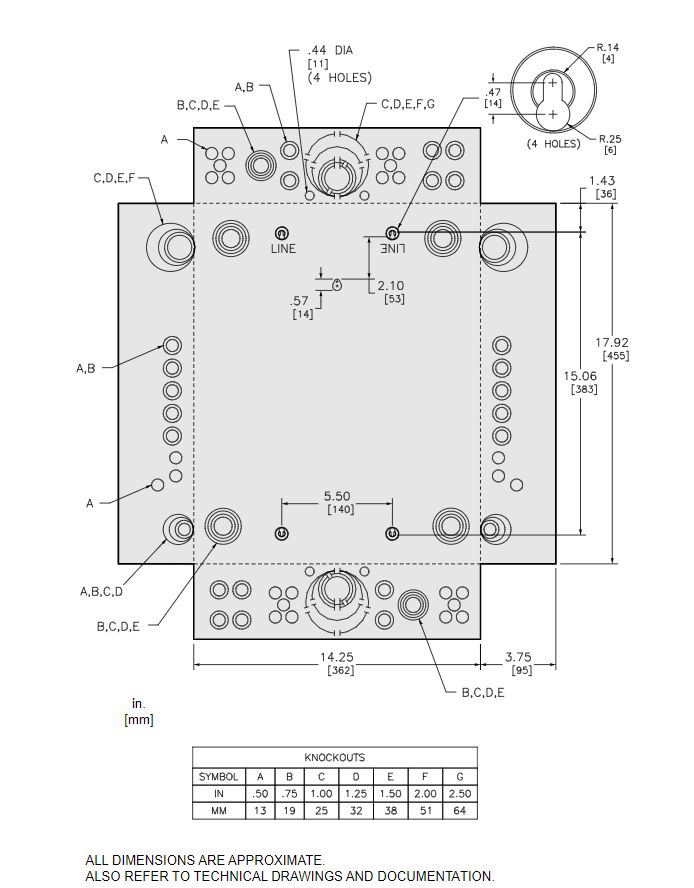

Dimensions
| Depth | 3.74 in (95 mm) |
|---|---|
| Height | 17.91 in (455 mm) |
| Weight | 16.01 lb |
| Width | 14.25 in (362 mm) |
Manufacturing Details
The following information is subject to change without notice
| Country of Origin | US |
|---|---|
| Prop 65 Warning |
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
|
| Shop USA | Yes |
Label Information
| Certification, Codes, Standards | UL listed, Rated 120/240 VAC and 65,000 AIR short circuit current rating |
|---|
