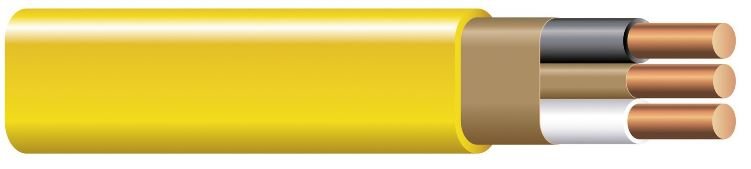

12/2nm-Wgx1000 Type Nm-B Sheathed Cable, 12 Awg, Yellow Nylon Sheath, Per Foot
- Mfg.#
- 12/2NM-WGX1000
- Sku#
- 7205099
- SIMpull jacket designed for easier pulling
- Color-coded jacket
- Tear resistant
* Estimated stock levels as of Thu, Mar 19, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
Inner conductors are type THHN, rated 90-degree C, 600 V. Solid strands. Outer jacket is PVC, rated at 75-degree C. Amp rating of the product is limited to that for 60° C rated conductors per the National Electric Code Article 336. Dwellings not exceeding 3 floors above grade. Exposed or concealed wiring. May be fished through walls, ceilings and masonry blocks. Use for new wiring or replacement wiring. Only for use in normally dry locations. UL listed.
Per Foot
Specifications
General
| Amps | 20 |
|---|---|
| Application | For residential wiring such as branch circuits for outlets, switches and other loads |
| Color | Yellow |
| Conductor Insulation | Thermoplastic |
| Conductor Material | Copper |
| Conductor Size | 12 AWG |
| Current Rating | 15 A |
| Insulation | PVC |
| Insulation Material | Thermoplastic |
| Number of Conductors | 1 |
| Number of Strands | 1 |
| Operating Temperature | 90-Degree C |
| Resistance | Gasoline, Heat, Moisture, Oil |
| Sheath Color | Green |
| Sheath Diameter | 102 mil |
| Sheath Material | Nylon |
| Strands per Conductor | 19 |
| Type | Solid |
| Usage | For Residential Wiring as Branch Circuits for Outlets, Switches and other Loads |
| Voltage Rating | 600 V |
| Wire Size | 12 AWG |
Dimensions
| Length | 1 ft |
|---|
Manufacturing Details
The following information is subject to change without notice
| Country of Origin | United States |
|---|---|
| Shop USA | Yes |
Label Information
| Certification, Codes, Standards | ASTM B-3 and B-8 Specified; Federal Specification A-A-59544 and National Electrical Code/NFPA 70 Standard and REACH/RoHS Compliant and UL Standard 719/UL 83 (Conductor Construction) Listed |
|---|
Related Documents
Install Sheet (PDF)
