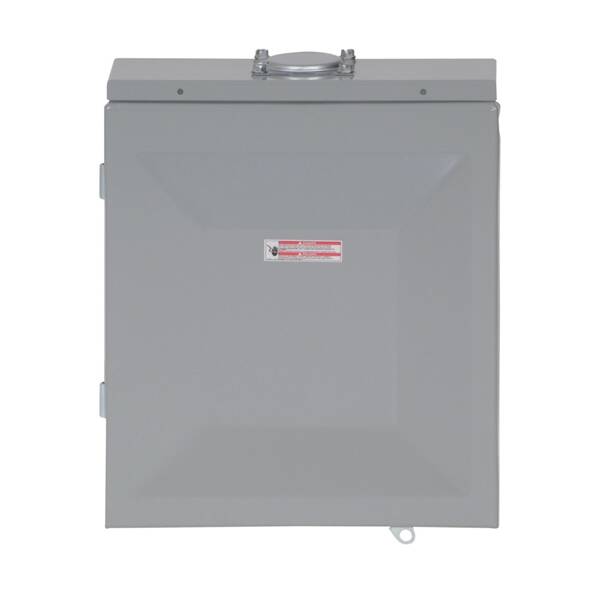

BR Series Plug-In Mounting 125-AMP 4-Space Main Lug Breaker/Load Center
- Mfg.#
- BRC48L125RP
- Sku#
- 687111
- Larger knockout provides easier installation and time savings
- Top or bottom feed, straight-in wiring saves labor and material, one panel for either top or bottom applications
- 2/0 lug easily removable and can be installed in any location on the neutral bar
- Type BR AFCI breakers, compact design for easier wiring and improved wireway access, optional LED indicates one of six trip codes for circuit diagnostics, provides a clean gutter space
- Excellent conductivity and corrosion resistance, copper bus options available
* Estimated stock levels as of Mon, Apr 20, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
Load Centers are enclosures specifically designed to house the branch circuit breakers and wiring required to distribute power to individual circuits. They contain either a main breaker when used at the service entrance point or a main lug when used as a sub-panel to add circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.
Specifications
General
| Amps | 236 |
|---|---|
| Breaker/Load Center Type | Main Lug |
| Bus Bar Material | Aluminum |
| Buss Bar Material | Aluminum |
| Cable Size | #14 to 1/0 AWG |
| Color | Light Gray |
| Current Rating | 125 A |
| Enclosure Material | Metal |
| Enclosure Type | NEMA 3R |
| Interrupt Rating | 10 kA |
| Mounting Type | Plug-In |
| Number of Circuits | 8 |
| Number of Phases | 1 |
| Spaces | 4 |
| Type | Main Lug Load Center |
| Voltage Rating | 120/240 V |
| Volts | 120-240 |
| Wiring Configuration | 3-Wire |
