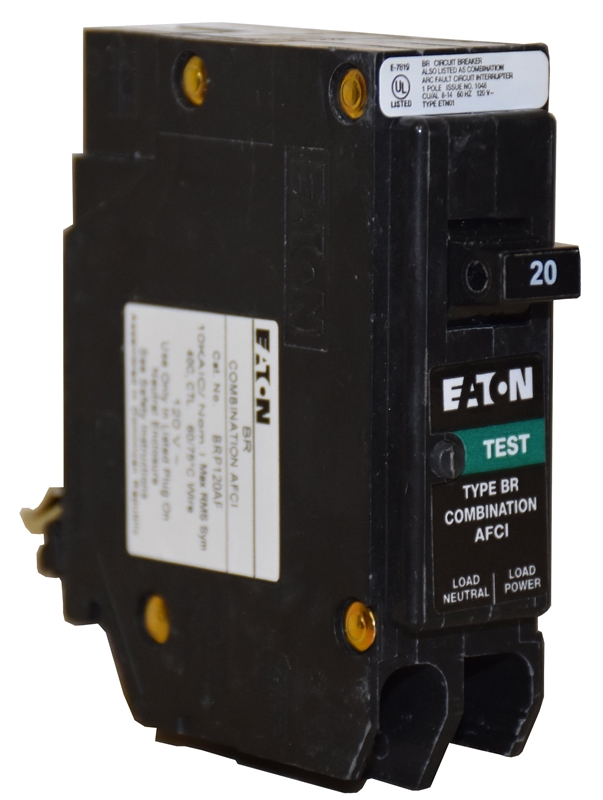

120-Volt Plug-On Mounting Arc-Fault Type Br Circuit Breaker
- Mfg.#
- 2374684
- Sku#
- 601377
* Estimated stock levels as of Wed, Apr 1, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
Plug-on combination type arc fault circuit breakers, 10,000 A interrupting capacity. Combination type arc fault circuit interrupter includes all of the protection offered by the branch feeder AFCI (mitigation of parallel arcing faults in the complete circuit, including connected cords). In addition it provides direct detection of persistent low current arcing faults down to 5 A with associated mitigation of fire hazards in the cords connected to the outlets. Parallel arcing faults can occur from line to neutral or line to ground. These arcing faults are in parallel with the load and produce the most energy of all arcing faults. The current level of low current arcing faults is limited by the load.
Specifications
General
| Amps | 20 |
|---|---|
| Circuit Breaker Type | Standard Single-Pole Circuit Breaker |
| Interrupt Rating | 10 kA |
| Mounting Type | Plug |
| Number of Phases | 1 |
| Poles | 1 |
| Series | BR |
| Suitable for | BR Series Load Centers |
| Type | Circuit Breaker |
| Volts | 120/240 |
| Wire Size | 14 to 4 AWG |
Dimensions
| Height | 1-1/8 in |
|---|---|
| Length | 6 in |
| Width | 3.5 in |
Manufacturing Details
The following information is subject to change without notice
| Country of Origin | US |
|---|---|
| Manufacturer Warranty | 10 Years |
| Shop USA | Yes |
Label Information
| Certification, Codes, Standards | UL Listed |
|---|
PLEASE NOTE: Product information for this item was provided by a third-party source and has not been verified. Please use our feedback button to report any errors. Read our Terms of Use.
