200-Amp QO™ Load Center
- Mfg.#
- QO130M200PC
- Sku#
- 5751698
* Estimated stock levels as of Thu, Feb 26, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description

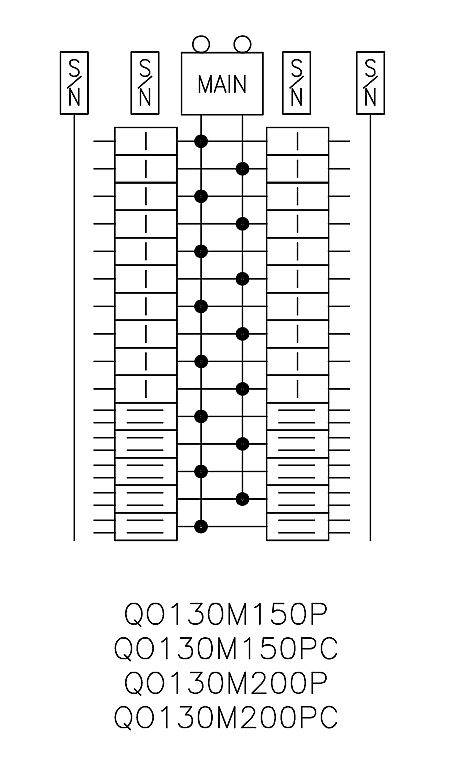

QO™ Circuit Breaker Load Centers, QO130M200PC, from Square D™ are Underwriters Laboratories (UL) Listed and CSA rated panel boards. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO™ Load Centers enable the use of a full complement of accessories. This 1 phase load center has 30 spaces and 30 circuits. This system provides a 200A convertible main breaker in a NEMA 1 enclosure. It also includes plug on neutral, combination cover, and is UL rated.
Specifications
General
| Amps | 200 |
|---|---|
| Bus Bar Material | Tin plated copper busbar |
| Cover Type | Combination flush/surface cover |
| Electrical Connection | Lugs |
| Enclosure Material | Welded sheet steel |
| Enclosure Rating | NEMA 1 indoor |
| Finish | Surface: Baked enamel Gray |
| Grounding Type | Grounding bar (ordered separately) |
| Load Centers & Distribution Type | Main Breaker Load Center |
| Material | Steel |
| Maximum Single Pole Circuits | 40 |
| Maximum Tandem Circuits | 10 |
| Misc | Max Short Circuit Current Rating: 22 kA; Ambient Air Temperature for Operation: 23 °F (-5 °C), 104 °F (40 °C) |
| Mounting Type | Plug-On |
| Number of Phases | 1 |
| Spaces | 30 |
| Type | Main Breaker Load Center |
| Volts | 120/240 |
| Wire Size | AWG 4...250 kcmil aluminium/copper |
| Wiring Configuration | 3-wire |
Dimensions
| Depth | 4-1/4 in |
|---|---|
| Height | 29.84 in (758 mm) |
| Width | 14.25 in (362 mm) |
Manufacturing Details
The following information is subject to change without notice
| Country of Origin | US |
|---|---|
| Prop 65 Warning |
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
|
| Shop USA | Yes |
Label Information
| Certification, Codes, Standards | UL Listed |
|---|
