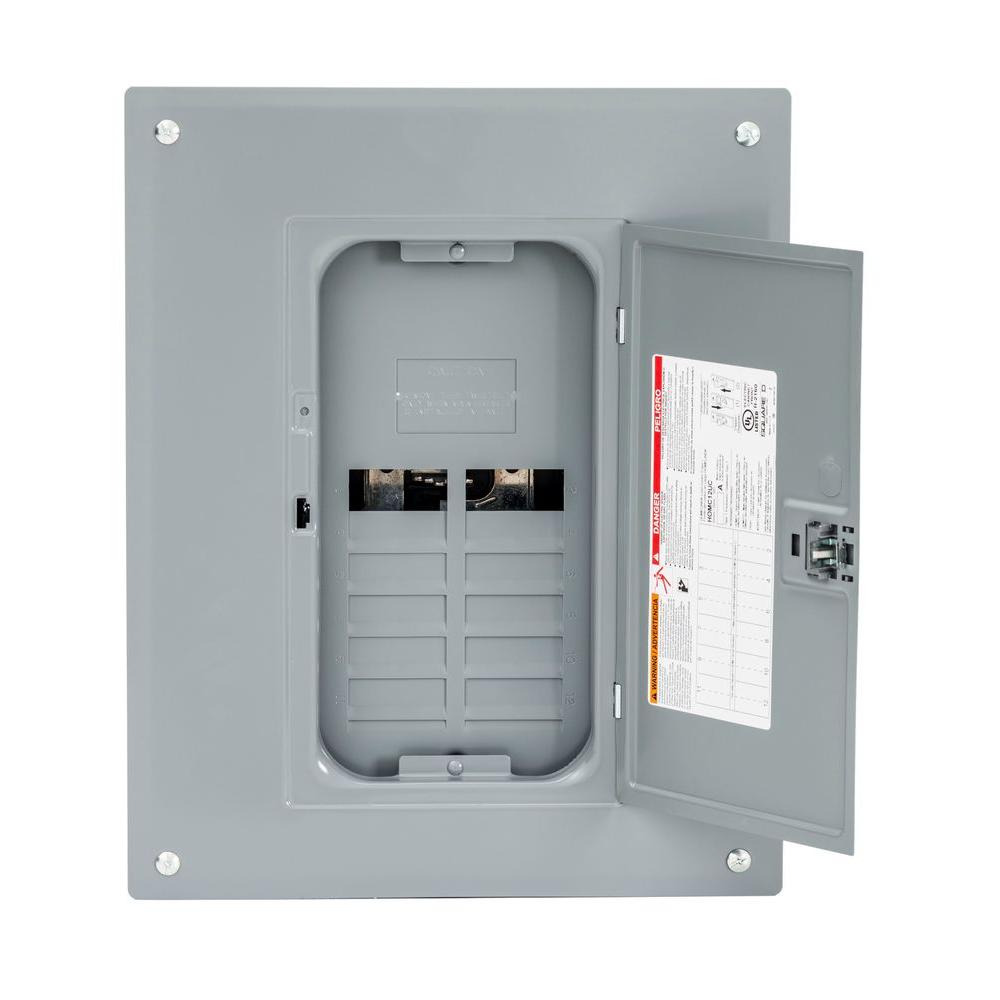

Homeline™ 125-Amp Plug-On Neutral Load Center
- Mfg.#
- HOM1224L125PC
- Sku#
- 5751417
* Estimated stock levels as of Sun, Mar 15, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
The Homeline™ load center offer features Homeline™ circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline™ load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline™ load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline™ load center is supplied with convertible mains that are rated at 125A 120/240 VAC single phase. Homeline™ load center provides a 10 kA breaking capacity. This system provides 12 spaces in a NEMA 1 indoor enclosure with a combination flush/surface cover. The electrical connections are box lugs. The box lugs will accept a wire range of 6 AWG to 1 AWG copper or 6 AWG to 2/0 AWG aluminum wire. This Homeline™ load center has a height of 17.92 inches, a width of 14.25 inches, and depth of 3.74 inches. Homeline™ load centers are UL Listed.
Specifications
General
| Amps | 125 |
|---|---|
| Bus Bar Material | Tin-plated Aluminum |
| Connection Type | Lugs |
| Cover Type | Combination flush/surface cover |
| Electrical Connection | Lugs |
| Enclosure Rating | NEMA 1 indoor |
| Finish | Surface: Baked enamel Gray |
| Indoor/Outdoor | Indoor |
| Load Centers & Distribution Type | Main Breaker Load Center |
| Maximum Single Pole Circuits | 24 |
| Maximum Tandem Circuits | 12 |
| Misc | Ambient Air Temperature for Operation:23 °F (-5 °C); 104 °F (40 °C) |
| Mounting Type | Plug-On |
| Number of Circuits | 24 |
| Number of Phases | 1 |
| Spaces | 12 |
| Type | Main Breaker Load Center |
| Volts | 120/240 |
| Wire Size | AWG 6...AWG 2/0 aluminium; AWG 6...AWG 1 copper |
| Wiring Configuration | 3-wire |
Dimensions
| Depth | 3.74 in (95mm) |
|---|---|
| Height | 17.91 in (455mm) |
| Width | 14.25 in (362mm) |
Manufacturing Details
The following information is subject to change without notice
| Country of Origin | US |
|---|---|
| Prop 65 Warning |
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
|
| Shop USA | Yes |
Label Information
| Certification, Codes, Standards | UL listed file E-6294 |
|---|
Related Documents
Brochure (PDF)
Installation Guide (PDF)
