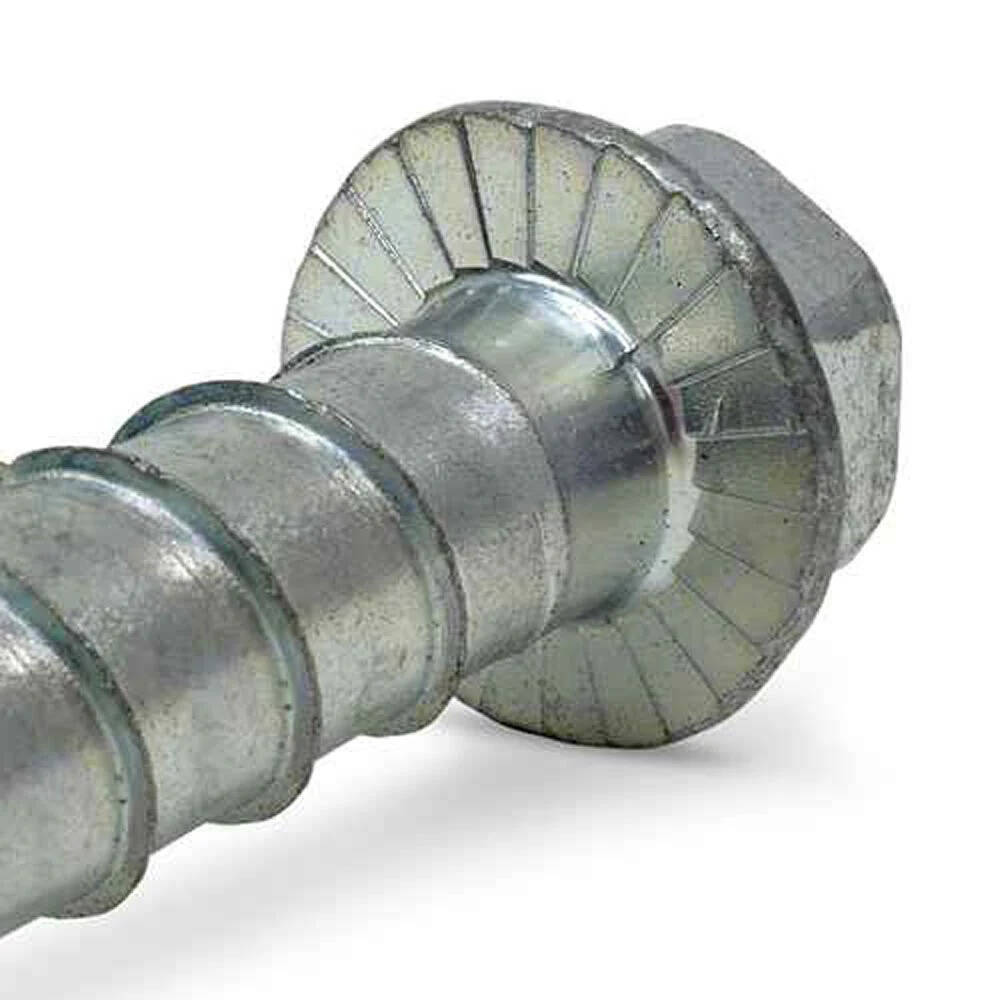

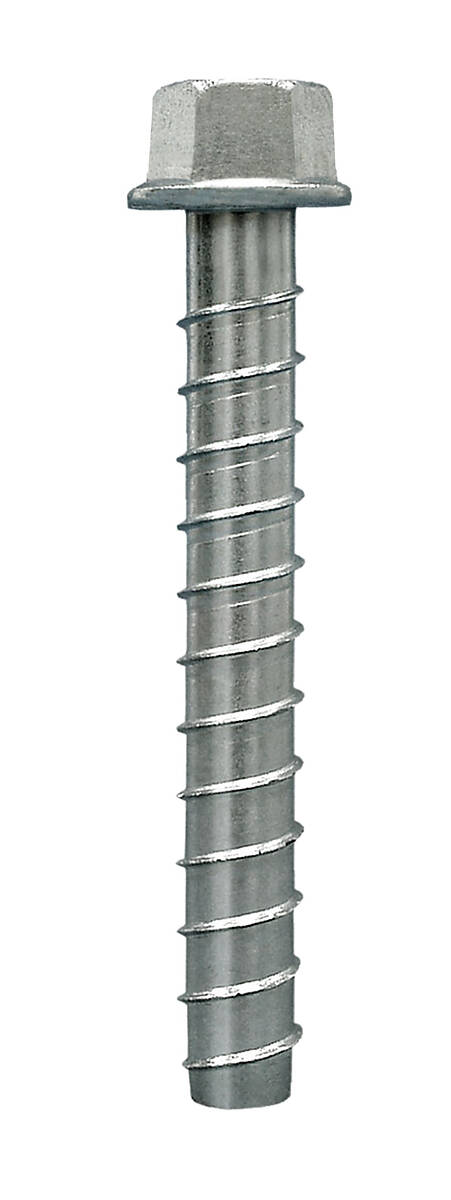

5/8 X 5-Inch Titen HD® Heavy-Duty Screw Anchor
- Mfg.#
- THDB62500H
- Sku#
- 4554754
- Qualified for static, wind and seismic loading conditions
- Thread design undercuts to efficiently transfer the load to the base material
- Specialized heat-treating process creates tip hardness for better cutting without compromising the ductility
- No special drill bit required — designed to install using standard-sized ANSI tolerance drill bits
- Hex-washer head requires no separate washer, unless required by code, and provides a clean installed appearance
* Estimated stock levels as of Wed, Apr 1, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
A high-strength screw anchor for use in cracked and uncracked concrete, as well as uncracked masonry. The Titen HD offers low installation torque and outstanding performance. The Titen HD screw anchor is designed for a wide variety of applications such as sill plates, ledgers, post bases, seating, and other holdown applications. The screw anchor is easy to remove when used in temporary applications such as bracing and formwork, or when a fixture needs to be relocated.
Specifications
General
| For Use In | Use in dry interior environments only |
|---|---|
| Material | Zinc Plated / Carbon Steel |
| Pack Qty | 10 |
| TPI | 2 1/2 in |
| Type | Screw/Anchor |
| Wrench Size | 15/16 in |
Dimensions
| Diameter | 5/8 in |
|---|---|
| Hole Size | 3/4 to 13/16 in |
| Length | 5 in |
| Size | 5/8 x 5 in |
Manufacturing Details
The following information is subject to change without notice
| Shop USA | Yes |
|---|
