5 1/2-Inch x 7/8-Inch Brass Plated Vintage Mortise Style Lock Assembly Kit Cast Steel
- Mfg.#
- E 2294
- Sku#
- 4349775
- The vintage look of this Mortise Lock Assembly Kit is a great match for the old lock sets found in period homes and used with antique and vintage door hardware, the kit is an economical replacement for indoor mortise locks

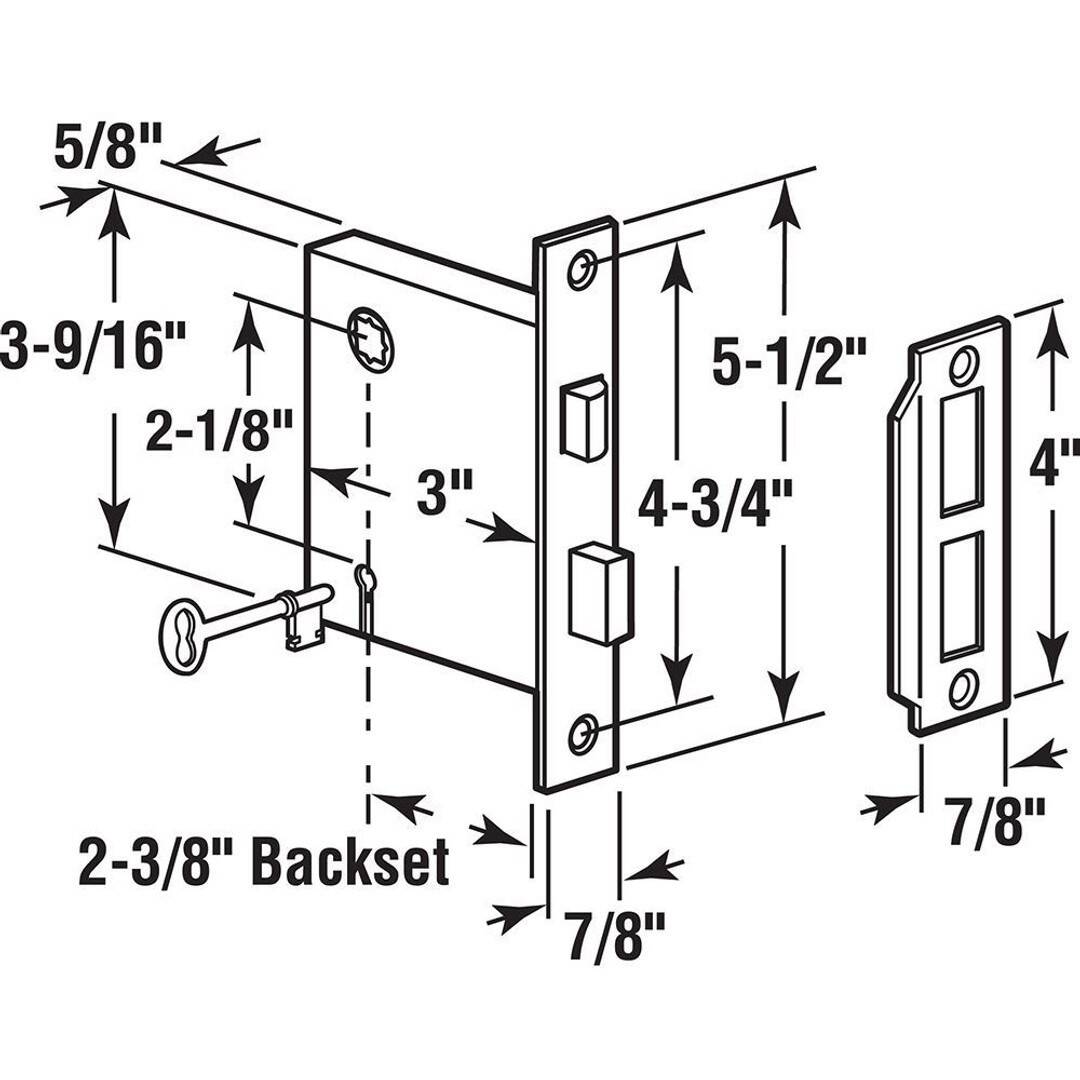

- The mortise lock slides into the existing door pocket to fix a broken lock if it has 3-9/16 inch height, 3 inch width, 1/2 inch depth, 2-3/8 inch backset, 9/32 inch square spindle drive that accepts a max spindle size of 1/4 inch
- The mortise caselock ships handed (to close in a certain direction) but the latch can easily be reversed for opposite swinging doors, please refer to the video for instructions
* Estimated stock levels as of Mon, May 18, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description

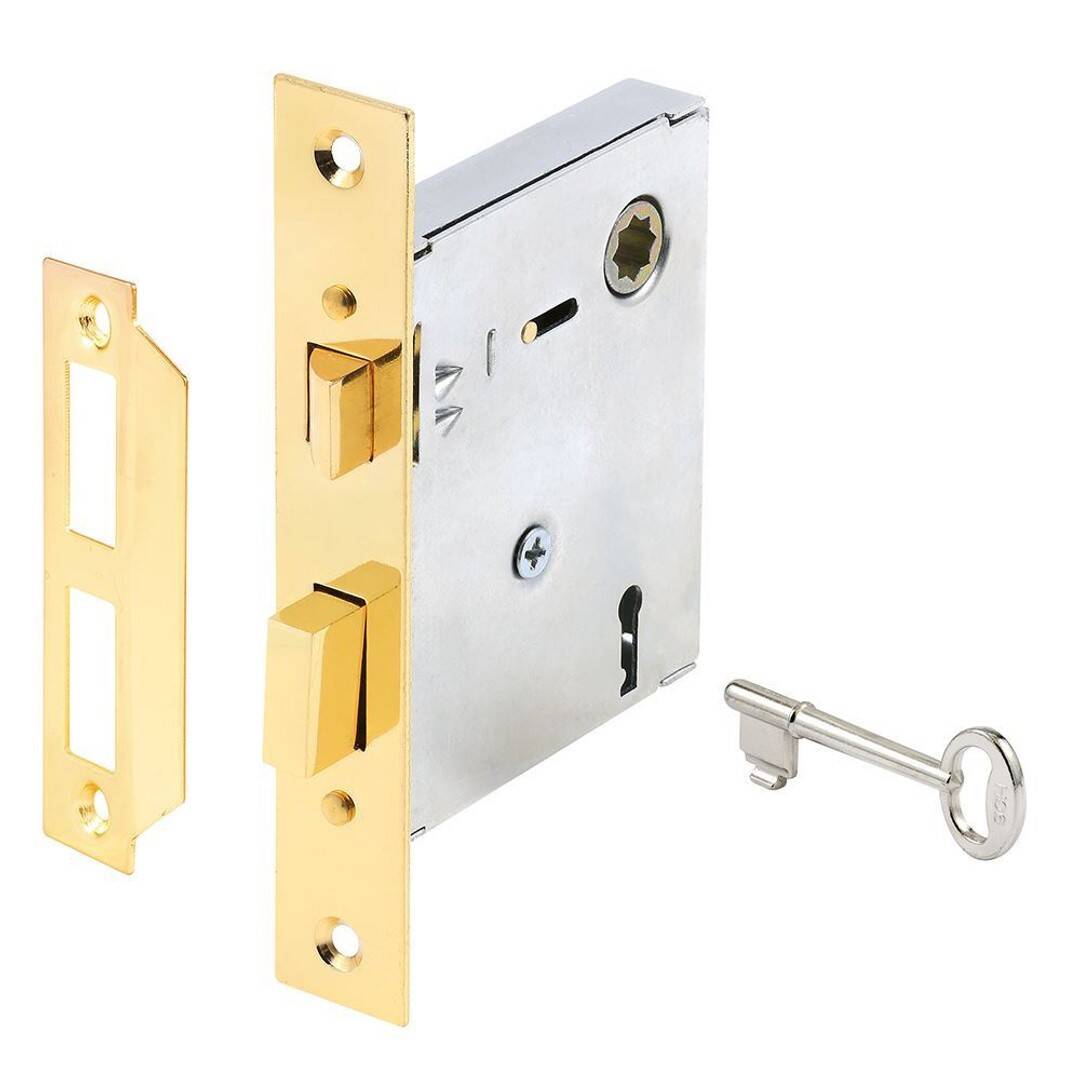

When it’s time to replace damaged or missing vintage-style mortise door locks, look no further than Prime-Line’s E 2294 Mortise Lock Assembly Kit. The cast steel construction and brass plated finish closely match the mortises of period homes and are perfect for antique doors. The skeleton key locking system and vintage look of the faceplate won’t take away from the originality of the antique hardware throughout the home.
The mortise lock assembly set has a 2-3/8 inch backset with a 9/32 inch square spindle drive that accepts a maximum spindle size of 1/4 inch. The kit includes a latch and deadbolt strike with fasteners (door knobs, square spindle, and trim plates sold separately) and two skeleton-style keys. Although the E 2294 lock set ships handed (to close in a certain direction), the latch can easily be reversed for opposite swinging doors.
Installation of the brass-plated steel mortise lock set is quick and easy, and all mounting screws are included. The mortise lock easily slides into the existing door pocket for an economical replacement of damaged or missing vintage lock sets that will perfectly complement the antique design of your home.
Specifications
General
| Finish | Brass |
|---|---|
| Type | Mortise Lock Kit |
Dimensions
| Size | 5 1/2-In x 7/8-In |
|---|
