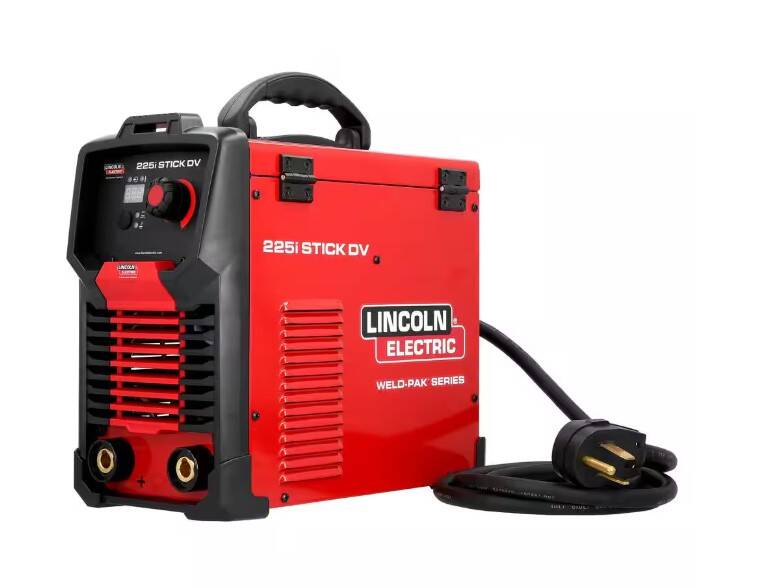

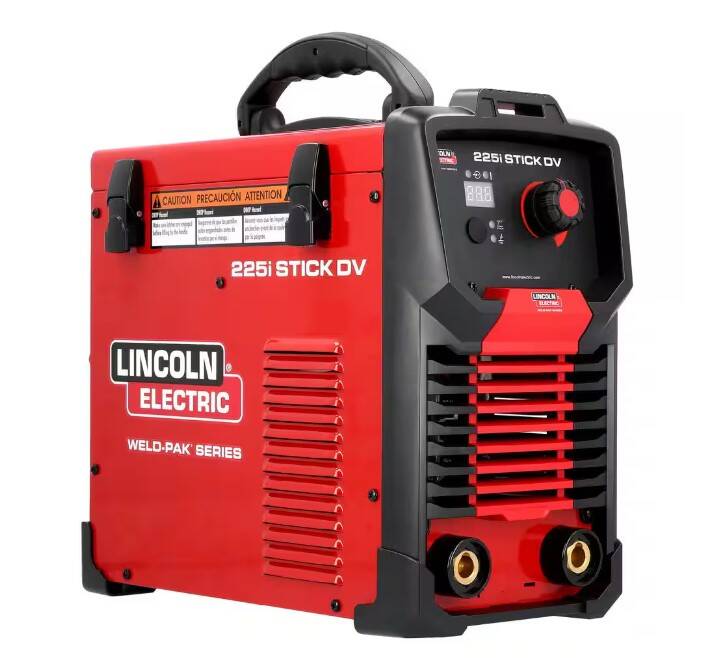

225-Amp 120/230-Volt Weld Pak Electric Stick/Tig Welder
- Mfg.#
- K5419-1
- Sku#
- 4163010

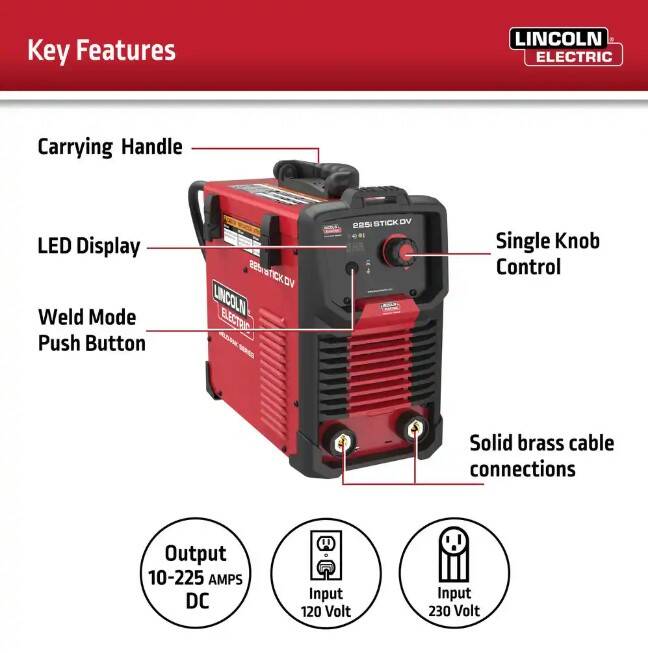

- Dual Voltage
- Lightweight & Portable
- LED Display
- Single Knob Control
- Weld Mode Push Button
* Estimated stock levels as of Fri, Apr 3, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description

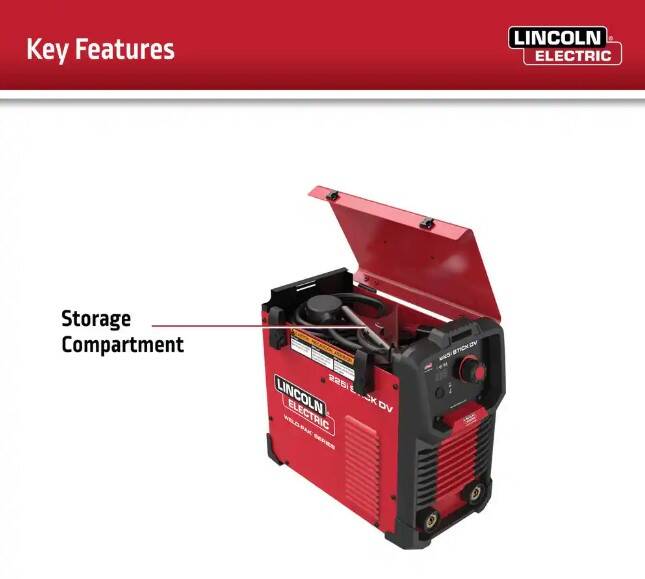

The dual voltage Weld-Pak® 225i Stick DV stick/TIG Welder has a 10 to 225 amp DC output that supports mild steel stick electrode diameters from 5/64” to 5/32”. Weighing in at 20 lbs., it is lightweight and portable. The case has a tool box top for storing cables or tools. The smooth arc provides strong welds on 12 gauge sheet metal to 5/16” thick steel. It has a 30% duty cycle at 225 amps when connected to 230VAC. Touch Start TIG® welding is supported. A simple display allows you to dial in the weld settings so you can get started quickly and easily on any job, anywhere – maintenance work, fabrication, light structural and everything in between.
Specifications
General
| Duty cycle | 30 |
|---|---|
| Hertz | 60 |

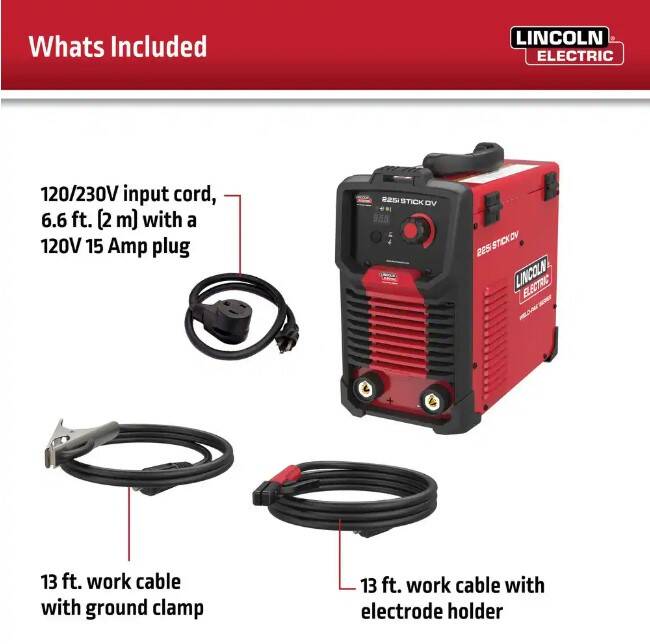

| Includes | (1) Stick/TIG Welder, (1) 6.6 ft Input Cord with 120V 15 Amp Plug, (1) 13 ft Work Cable with Ground Clamp, (1) 13 ft Work Cable with Electrode Holder |
| Input Power | 120 |
| Item Weight | 20 lbs |
| Maximum Amps | 225 |
| Rated Output | 29 volts |
| Rod Size | .15625 |
| Type | Welding Machine |

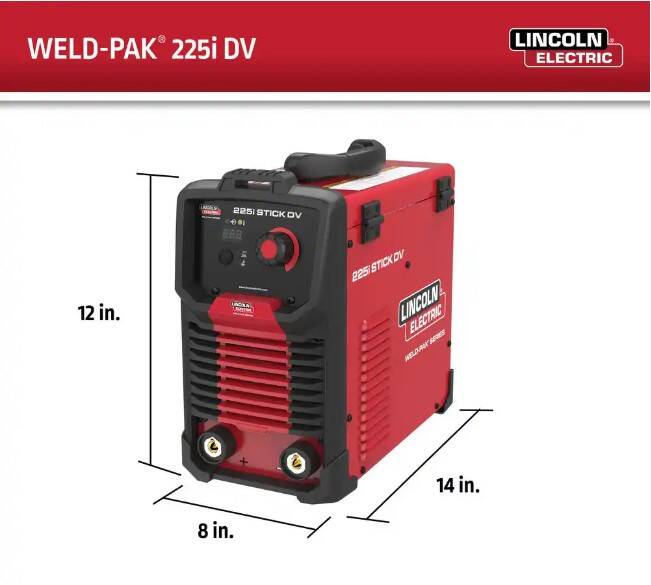

Dimensions
| Depth | 14 in |
|---|---|
| Height | 12 in |
| Width | 8 in |
Manufacturing Details
The following information is subject to change without notice
Related Documents
InstructionsPDF (PDF)
