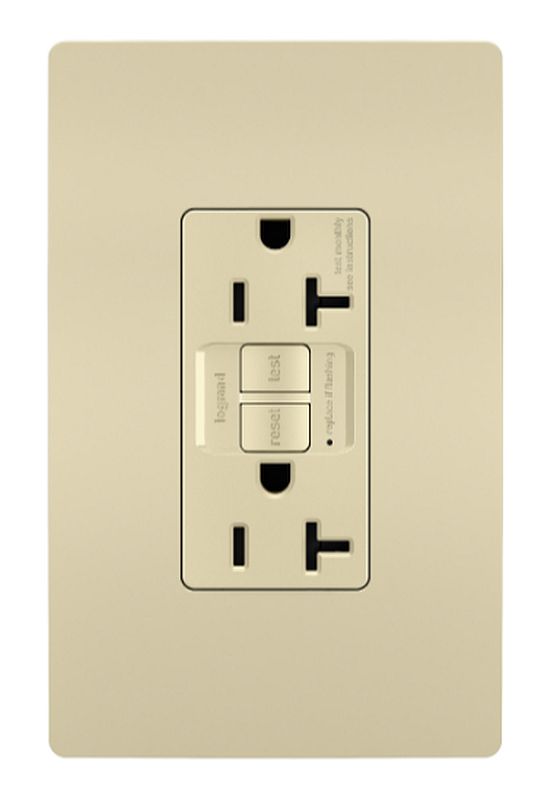

radiant® 20-Amp 125-Volt Commercial / Residential Self-Test GFCI Duplex Receptacle, 1-Pack, Ivory
- Mfg.#
- 2097ICCD12
- Sku#
- 4094843
- Conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the trip indicator light (red LED) flashes to signal that the GFCI should be replaced
- Thinner than competitors' GFCI Receptacles: leaves more room for wires in the box
- Feed-thru wiring configuration allows GFCI to protect downstream receptacles
- Prevents line-load reversal miswire: no power to the face or downstream receptacles if wired incorrectly
- Side or internal screw-pressure-plate back wire with #10-#14 AWG solid or stranded copper wire and two back wire holes per terminal
* Estimated stock levels as of Wed, Mar 25, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
GFCI receptacles from the radiant® Collection self-test automatically every three seconds to ensure reliable protection from shock due to ground fault occurrences. Meeting National Electrical Code requirements for ground fault protection, GFCI receptacles make it easier to recognize and fix trips right where they happen no more confusion at the breaker box. 20A outlets are ideal for use with larger appliances, as well as to meet regional requirements (Chicago, Canada). GFCI protection is required by code in bathrooms, kitchens, garages, basements, outdoor areas, and for any other outlets found within six feet of a sink or water source. GFCI outlets should always be used when replacing existing GFCI outlets during renovation. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately. Spec-Grade devices are engineered to meet federal specifications for use in commercial installations.
Specifications
General
| Color | Ivory |
|---|---|
| Color Family | White / Off-White |
| Current Rating | 20 A |
| Indoor/Outdoor | Indoor |
| Material | Nylon |
| Mounting Type | Box |
| NEMA Configuration | 5-20R |
| Number of Gangs | 1 |
| Number of Poles | 2-Pole |
| Number of Receptacles | 2 |
| Number of Wires | 3 |
| Operating Temperature | -35 to 66°C |
| Outlets & Plugs Amp Rating | 20-Amp |
| Outlets & Plugs Application | Commercial / Residential |
| Outlets & Plugs NEMA Configuration | 5-20R |
| Outlets & Plugs Pack QTY | 1-Pack |
| Outlets & Plugs Style | Self-Test |
| Outlets & Plugs Voltage Rating | 125-Volt |
| Outlets & Plugs Wiring Type | Back Side |
| Series | radiant® |
| Type | GFCI Duplex Receptacle |
| Voltage Rating | 125 V |
| Wire Size | 14 to 10 AWG |
Dimensions
| Depth | 1.03 in |
|---|---|
| Dimensions | 1.62 in W x 1.13 in D x 4.19 in H |
| Height | 4.2 in |
| Width | 1.73 in |
Manufacturing Details
The following information is subject to change without notice
| Country of Origin | CN |
|---|---|
| Manufacturer Warranty | 1 yr Limited |
Label Information
| Certification, Codes, Standards | cULus Listed |
|---|
