50-CFM Bath Exhaust Fan
- Mfg.#
- 688ES
- Sku#
- 4082137
- 10 Min Install: Easy installation without the need for attic access or additional drywall cutting.
- Efficient Ventilation: 50 CFM offering efficient exhaust ventilation to remove odors and pollutants from rooms up to 45 sq. ft.
- ENERGY STAR Certified: Reduces energy consumption by over 50% compared to standard bath fans.
- No Cut Install: Compact housing with foldable mounting brackets for no cut and versatile installation.
* Estimated stock levels as of Sat, Apr 11, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description

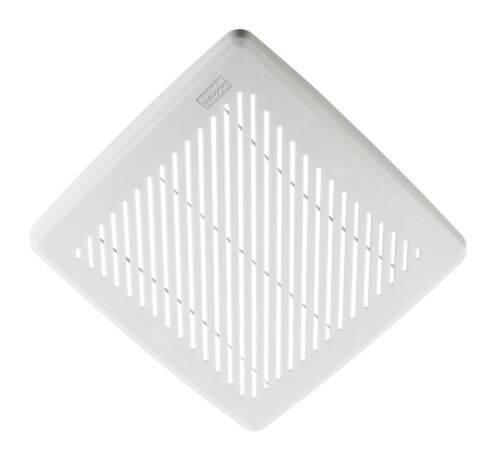

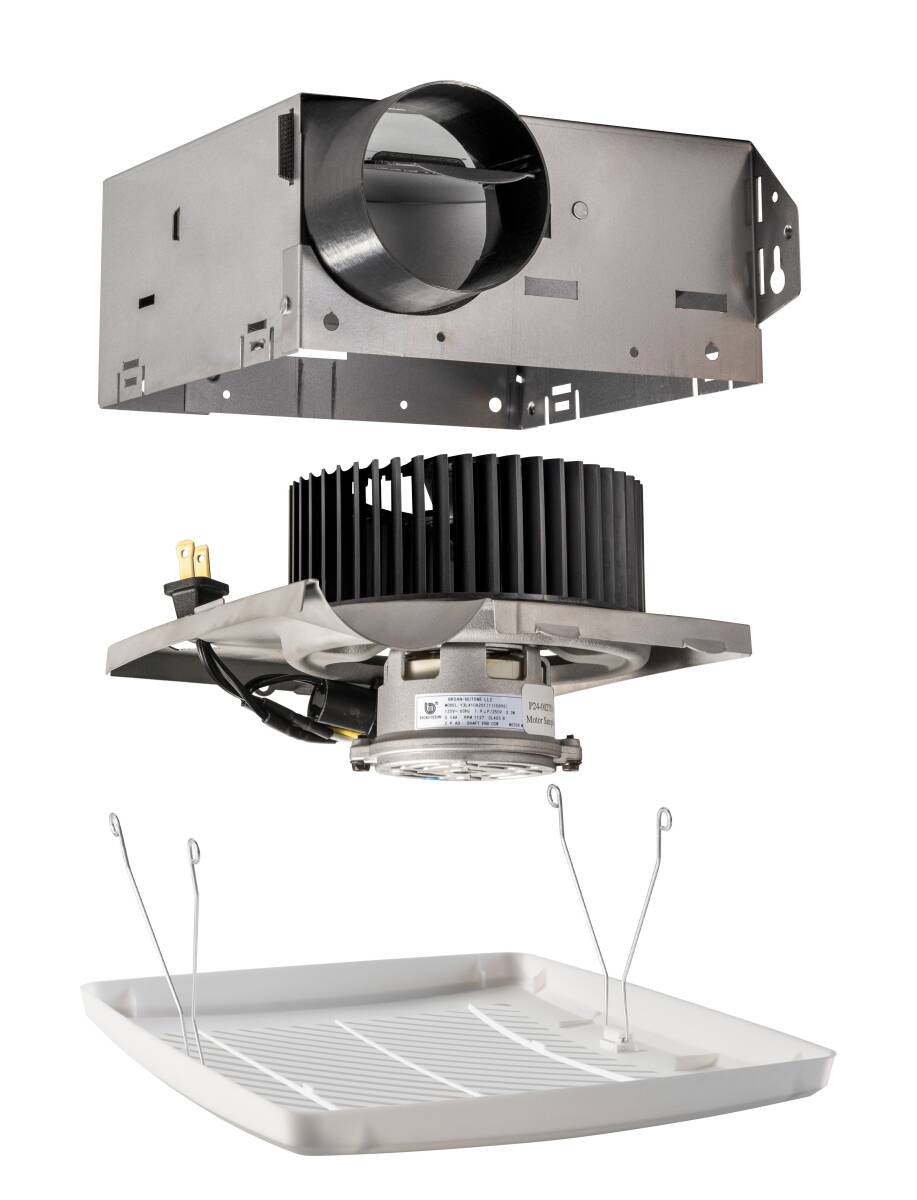

The Broan-NuTone® Energy Star bathroom exhaust fan is a versatile, compact, and economical ventilation solution. Designed for easy installation, this fan can be installed in just 10 minutes without the need for attic access or drywall cutting. Featuring a louvered grille, galvanized steel housing, and double-strength mounting flanges, it delivers powerful ventilation performance at 2.0 sones, helping to prevent mold and mildew. Additionally, the fan includes a removable motor assembly and a plug-in, permanently lubricated motor for easy service and cleaning.
Specifications
General
| Amps | 0.3 |
|---|---|
| CFM | 50 |
| CFM Range | Small Room (50 sq. ft.), 0 - 79 CFM |
| Color | White |
| Grill Width | 8.75 in |
| Grille Length | 9 in |
| Sones | 2 |
| Sound Level | Quiet, 1.5 - 2.5 sones |
| Type | Bathroom Exhaust Fan |
| Volts | 120 |
Label Information
| Certification, Codes, Standards | Energy Star |
|---|
