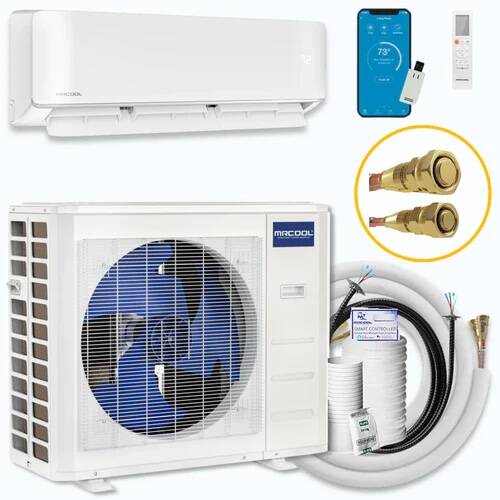

DIY 5th Generation 230-Voltage 24,000-BTU Ductless Mini Split Heat Pump System
- Mfg.#
- DIY24HPWM230D25
- Sku#
- 4046348
- Easy DIY installation
- Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit.
- Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
- The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
* Estimated stock levels as of Sun, May 24, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description

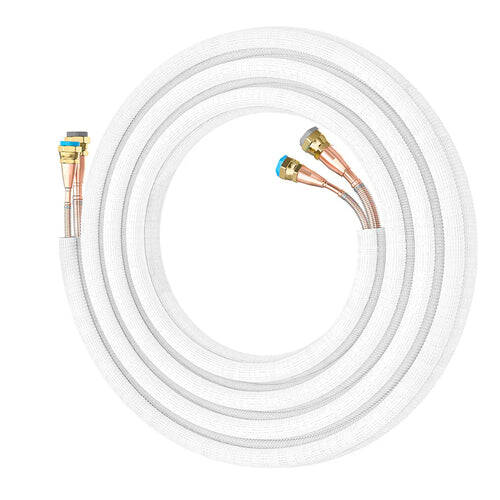

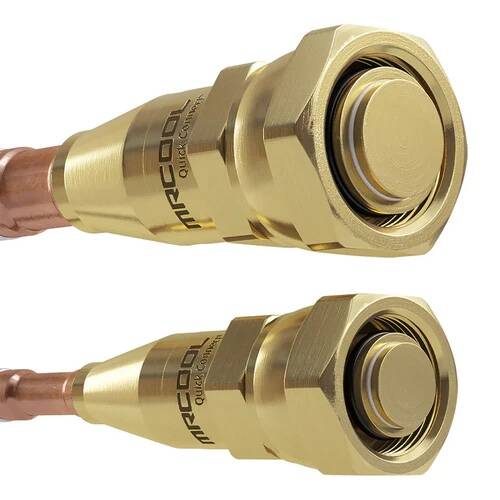

MRCOOL® 5th Generation DIY® 24K BTU 22.7 SEER2 Ductless Heat Pump Single Zone Mini-Split System. Designed for an easy and hassle-free installation, this system requires no special tools or prior experience and effectively heats or cools spaces up to 1,050 sq. ft. The 25-foot DIY® QuickConnect® line set is pre-charged with R-454B refrigerant which eliminates the need for vacuuming, making installation faster, easier, and more cost-effective. The included DIYPRO® cable removes the need for electrical conduit, offering added durability against the outdoor elements and wildlife. Control using the SmartHVAC app for Apple and Android devices, and hands-free voice commands via Amazon Alexa and Google Assistant. The Gold Fin® Condenser provides superior corrosion resistance for coastal homes, ensuring long-lasting performance in harsh conditions.
Specifications
General
| BTU | 23000 |
|---|---|
| Color Family | White / Off-White |
| Compressor Type | Rotary |
| EER Rating | 12.7 |
| HSPF | HSPF2-4 (9.5), HSPF2-5 (7.1) |
| Includes | 1 x MRCOOL DIY 24K 5th Gen Condenser, 1 x MRCOOL DIY 24K 5th Gen Air Handler, 1 x 25 ft. 3/8 x 5/8 Line Set, 1 x MRCOOL Remote Control |
| Line Length | 25 ft |
| Refrigerant | R-454B; 67.37 oz |
| SEER | 22.7 |
| Series | DIY 5th gen Single-Zone Mini-splits |
| Type | Ductless Mini-Split Heat Pump |
| Voltage | 208/230 |
Dimensions
| Weight | 155.64 lbs |
|---|
Manufacturing Details
The following information is subject to change without notice
| Manufacturer Warranty | Registered Extended Limited Lifetime. 5 Years for Parts. 7 Years for Compressor. |
|---|
Label Information
| Certification, Codes, Standards | UL LISTED, ETL LISTED, ENERGY STAR CERTIFIED, AHRI CERTIFIED |
|---|
Related Documents
Brochure (PDF)
Warranty (PDF)
Installation Guide (PDF)
