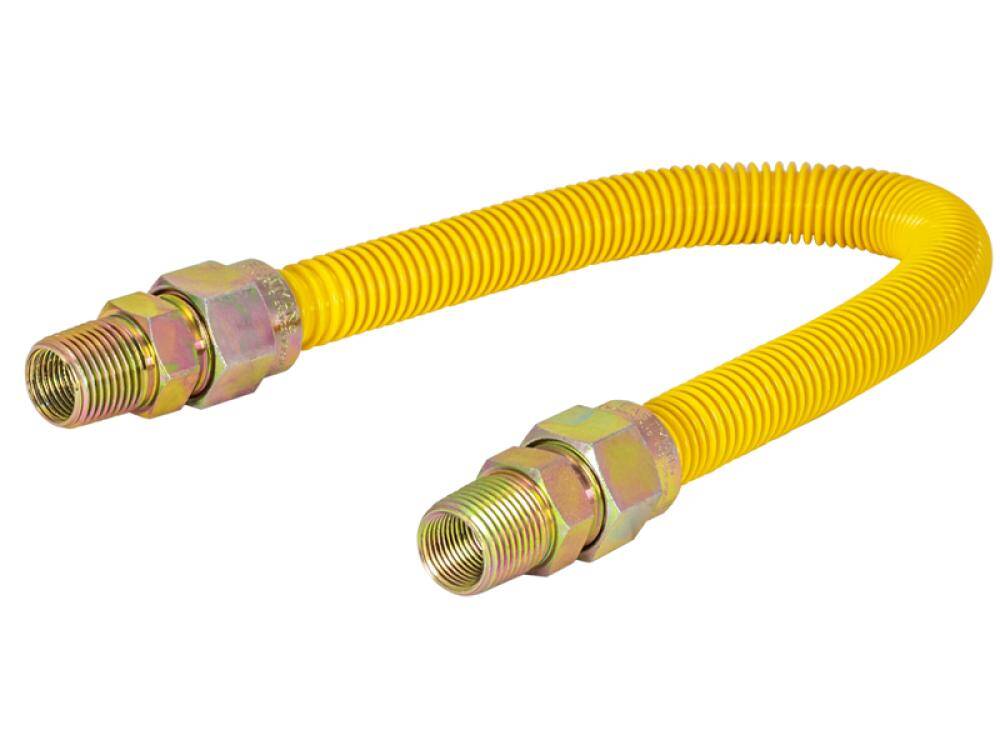

1/2-Inch FIP X 1/2-Inch MIP (Tapped 3/8-Inch FIP) X 48-Inch Yellow Epoxy/Stainless Steel Gas Connector
- Mfg.#
- 30YE515048B
- Sku#
- 3963600
- Yellow epoxy coated stainless steel 304 (ASTM 240).
- For most ranges and boilers with gas ratings up to 180,000 BTUs.
- Provides extra protection from corrosion, household chemicals, and plumbing repair products.
- Gas connector and fittings used for Natural Gas and LP.
- Zinc-Plated Steel S45C Fittings.
* Estimated stock levels as of Sat, Apr 11, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
The Eastman® Steel-Flex® gas connector is made of stainless steel with a yellow epoxy coating. The deep corrugations of the connector provide structural support against crushing, kinking and cracking. The epoxy coating is designed to withstand long exposure to household chemicals and harsh environments. This is a highly durable connector with zinc-plated steel FIP fittings. CSA certified in both US and Canada. This connector can be used as a gas supply line in HVAC applications, water heaters, ranges, and other appliances. Works with propane or natural gas.
Specifications
General
| Application | For most ranges and boilers with gas ratings up to 180,000 BTUs; for Natural Gas and LP |
|---|---|
| Coating | DuraCoat epoxy |
| Color | Yellow |
| Connection | Female X Male (Tapped FIP) |
| Connection Type | FIP X MIP (Tapped FIP) |
| Finish | Zinc-Plated Steel S45C Fittings |
| Indoor/Outdoor | Indoor/Outdoor |
| Inlet Connection Size | 1/2 in. FIP |
| Material | Yellow Epoxy/Stainless Steel |
| Outlet Connection Size | 1/2 in. MIP |
| Pressure Rating | 0.5 psi |
| Temperature Rating | -20 Degrees F to 150 Degrees F |
| Type | Gas Connector |
Dimensions
| Inside Diameter | 1/2 in |
|---|---|
| Length | 48 in |
| Nominal Size | 1/2 in |
| Outside Diameter | 5/8 in |
Manufacturing Details
The following information is subject to change without notice
| Prop 65 Warning |
This product can expose you to one or more chemicals,including Lead,which are known to the State of California to cause cancer,birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
|
|---|
Label Information
| Certification, Codes, Standards | ANSI Z 21.24/CSA 6.10, ANSI Z 21.69/CSA 6.16, ANSI Z 21.75/CSA 6.27, Commonwealth of Massachusetts Board of State Examiners (except 48 in., 60 in., 72 in.), City of New York-MEA #376-92-M. |
|---|
Related Documents
Brochure (PDF)
Installation Guide (PDF)
