Yellow Epoxy/Stainless Steel Gas Dryer Installation Kit, With ARMOR BOOST™ Thermal Excess Flow Valve
- Mfg.#
- 20YE52V05148K
- Sku#
- 3963444
- Fits most dryers with gas ratings up to 60,500 BTUs.
- Gas connector and fittings used for Natural Gas and Liquid Propane (LP).
- Approved for indoor and outdoor use.
- Easy to install, no special tools required.
- ArmorBoost EFV protects against ruptures and disconnects.
* Estimated stock levels as of Sat, Apr 11, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description

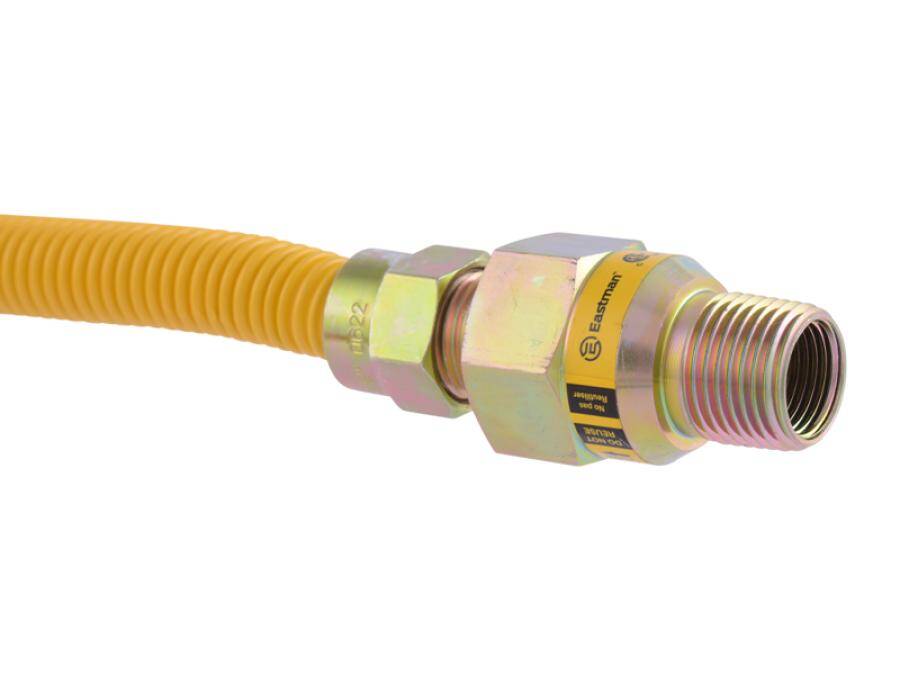

The Eastman™ 1/2-IN OD gas dryer connector kit is designed to connect most major brands of gas dryers to a shut-off valve. The connector is certified for use with most dryers with gas ratings up to 60,500 BTUs. The gas dryer connector kit includes an ArmorBoost™ EFV (thermal excess flow valve). The ArmorBoost™ EFV from Eastman™ is designed to help protect you and your family from catastrophic ruptures or disconnects in your gas line. The ArmorBoost™ valve immediately restricts gas flow to help protect you from the build-up of flammable gas. The valve will remain activated until the gas line is properly repaired. For added protection, the ArmorBoost™ EFV features a special fire-safe thermal ring that expands to stop gas flow when extreme temperatures of 350? + are reached. The DuraCoat™ Epoxy Coating provides extra protection from corrosion, chemical stains from common household products, and UV rays and is approved for indoor/outdoor use.

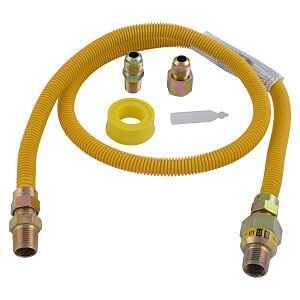

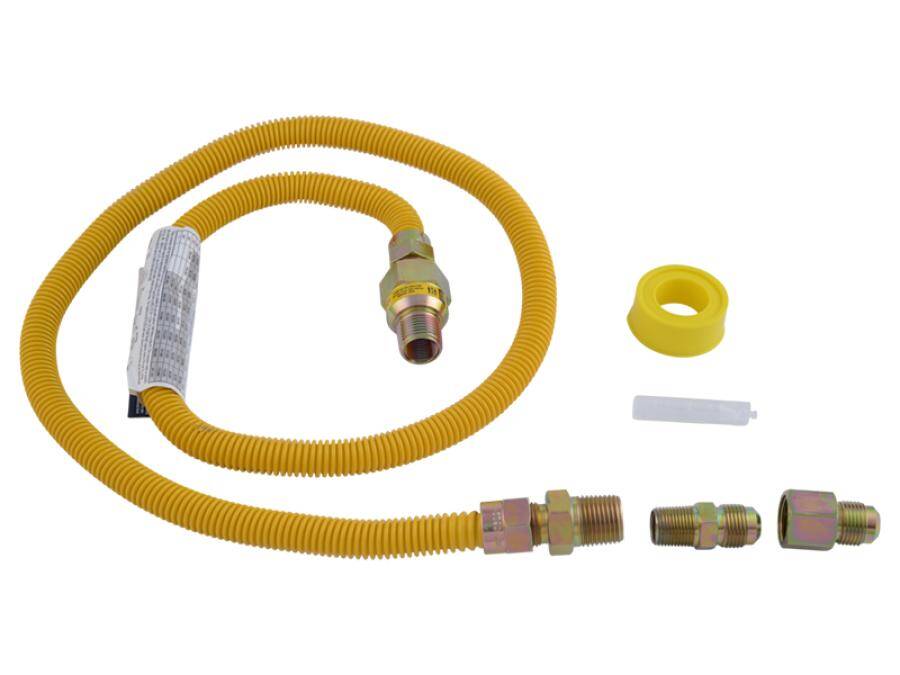

This kit includes (1) 48-IN 1/2-IN OD epoxy-coated gas dryer connector, (1) 1/2-IN MIP (Tapped 3/8-IN FIP) ArmorBoost™ EFV auto shut-off valve, (1) 3/8-IN MIP (Tapped 1/4-IN FIP) fitting, (1) 1/2-IN FIP fitting, (1) 1/2-IN MIP (tapped 3/8-IN FIP), (1) leak detector solution, (1) thread sealant. The gas connector is to be used for natural gas or LP water heaters, dryers, and moderate usage appliances. The connector is certified for indoor and outdoor use on appliances up to 60,500 BTUs. DuraCoat epoxy coating protects against corrosion, stains, and UV.
Specifications
General
| Application | For most dryers with gas ratings up to 60,500 BTUs; or Natural Gas and Liquid Propane (LP) |
|---|---|
| Coating | DuraCoat epoxy |
| Color | Yellow |
| Finish | DuraCoat™ Epoxy Coating |
| Includes | (1) 48-IN 1/2-IN OD epoxy-coated gas dryer connector, (1) 1/2-IN MIP (Tapped 3/8-IN FIP) ArmorBoost™ EFV auto shut-off valve, (1) 3/8-IN MIP (Tapped 1/4-IN FIP) fitting, (1) 1/2-IN FIP fitting, (1) 1/2""MIP (tapped 3/8” FIP), (1) leak detector solution, (1) thread sealant |
| Indoor/Outdoor | Indoor/Outdoor |
| Material | Yellow Epoxy/Stainless Steel |
| Temperature Rating | -20 Degrees F to 150 Degrees F |
| Type | Dryer Installation Kit |
Dimensions
| Length | 48 in |
|---|---|
| Nominal Size | 48 in |
| Outside Diameter | 1/2 in |
Manufacturing Details
The following information is subject to change without notice
| Prop 65 Warning |
This product can expose you to one or more chemicals,including Lead,which are known to the State of California to cause cancer,birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
|
|---|
Label Information
| Certification, Codes, Standards | ANSI Z 21.24/CSA 6.10, ANSI Z 21.69/CSA 6.16, ANSI Z 21.75/CSA 6.27, Commonwealth of Massachusetts Board of State Examiners (except 48", 60", 72"), City of New York-MEA #376-92-M |
|---|
