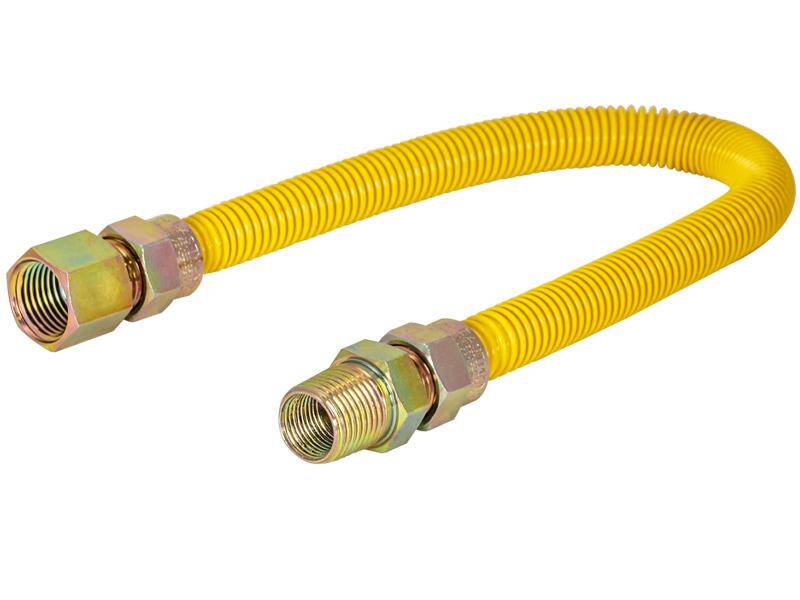

1/2-Inch FIP X 1/2-Inch MIP (Tapped 3/8-Inch FIP) X 24-Inch Yellow Epoxy/Stainless Steel Gas Connector
- Mfg.#
- 20YE515024B
- Sku#
- 3963378
- For water heaters and dryers with gas ratings up to 102,000 BTUs.
- Gas connector and fittings used for Natural Gas and Liquid Propane.
- Approved for indoor and outdoor use.
- Easy to install, no special tools required.
- Stainless steel flexible connectors with deep corrugations enhance flexibility.
* Estimated stock levels as of Sat, Apr 11, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
The Eastman™ 1/2 in. OD gas connector is designed to connect most major brands of water heaters, dryers, and moderate usage appliances to a shut-off valve. The connector is certified for use with most water heaters and dryers with gas ratings up to 102,000 BTUs. DuraCoat™ Epoxy Coating provides extra protection from corrosion, chemical stains from common household products, and UV rays and is approved for indoor/outdoor use. The gas connector is to be used for natural gas or LP water heaters, dryers, and moderate usage appliances. The connector is certified for indoor and outdoor use on appliances up to 102,000 BTUs. DuraCoat epoxy coating protects against corrosion, stains, and UV.
Specifications
General
| Application | For water heaters and dryers with gas ratings up to 102,000 BTUs; For Natural Gas and Liquid Propane. |
|---|---|
| Coating | DuraCoat epoxy |
| Color | Yellow |
| Connection | Male x Female |
| Connection Type | FIP x MIP |
| Finish | Zinc-plated steel S45C |
| Indoor/Outdoor | Indoor/Outdoor |
| Inlet Connection Size | 1/2 in. FIP |
| Material | Yellow Epoxy/Stainless Steel |
| Outlet Connection Size | 1/2 in. MIP |
| Pressure Rating | 0.5 psi |
| Series | EZ-20 |
| Temperature Rating | -20 Degrees F to 150 Degrees F |
| Type | Gas Connector |
Dimensions
| Length | 24 in |
|---|---|
| Nominal Size | 1/2 in |
| Outside Diameter | 1/2 in |
Manufacturing Details
The following information is subject to change without notice
| Prop 65 Warning |
This product can expose you to one or more chemicals,including Lead,which are known to the State of California to cause cancer,birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
|
|---|
Label Information
| Certification, Codes, Standards | ANSI Z 21.24/CSA 6.10, ANSI Z 21.69/CSA 6.16, ANSI Z 21.75/CSA 6.27, Commonwealth of Massachusetts Board of State Examiners (except 48 in., 60 in., 72 in.), City of New York-MEA #376-92-M. |
|---|
Related Documents
Brochure (PDF)
Installation Guide (PDF)
