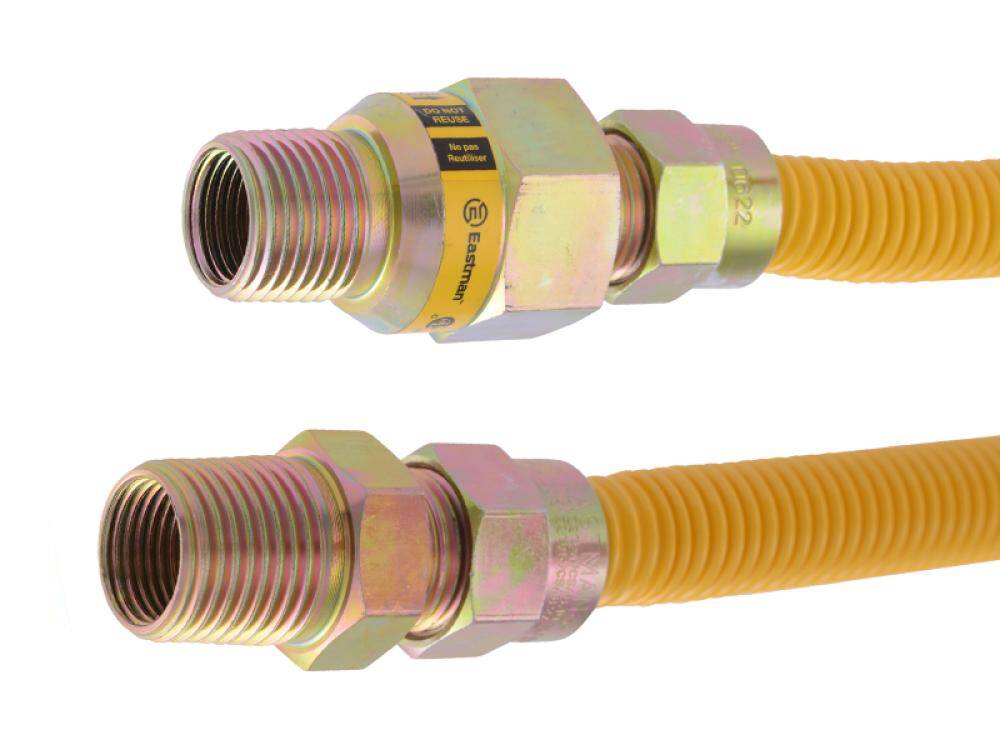

Gas Connector, 1/2 in, FIP x MIP, Stainless Steel, Epoxy-Coated, 48 in L, 1/2 in OD
- Mfg.#
- 20YE50V148B
- Sku#
- 3963345
- For water heaters and dryers with gas ratings up to 93,100 BTUs
- Gas connector and fittings used for Natural Gas and Liquid Propane
- Approved for indoor and outdoor use
- Easy to install, no special tools required
- ArmorBoost EFV protects against ruptures and disconnects
* Estimated stock levels as of Wed, Apr 1, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
The Eastman™ 1/2 in. OD gas connector is designed to connect most major brands of water heaters, dryers, and moderate usage appliances to a shut-off valve. This gas connector includes an ArmorBoost™ EFV (thermal excess flow valve). The ArmorBoost™ EFV from Eastman™ is designed to help protect you and your family from catastrophic ruptures or disconnects in your gas line. The ArmorBoost™ valve immediately restricts gas flow to help protect you from the build-up of flammable gas. The valve will remain activated until the gas line is properly repaired. For added protection, the ArmorBoost™ EFV features a special fire-safe thermal ring that expands to stop gas flow when extreme temperatures of 350? + are reached. DuraCoat™ Epoxy Coating provides extra protection from corrosion, chemical stains from common household products, and UV rays and is approved for indoor/outdoor use.
Specifications
General
| Application | For water heaters and dryers with gas ratings up to 93,100 BTUs; for Natural Gas and Liquid Propane |
|---|---|
| Coating | DuraCoat epoxy |
| Color | Yellow |
| Connection | Male (tapped FIP) X Male (tapped FIP) |
| Connection Type | Tapped FIP X MIP |
| Finish | DuraCoat™ Epoxy Coating |
| Indoor/Outdoor | Indoor/Outdoor |
| Inlet Connection Size | 1/2 in MIP |
| Material | Yellow Epoxy/Stainless Steel |
| Outlet Connection Size | 1/2 in. MIP |
| Pressure Rating | 0.5 psi |
| Temperature Rating | -20 Degrees F to 150 Degrees F |
| Type | Gas Connector |
Dimensions
| Length | 48 in |
|---|---|
| Nominal Size | 3/8 x 1/2 in |
| Outside Diameter | 1/2 in |
Manufacturing Details
The following information is subject to change without notice
| Prop 65 Warning |
This product can expose you to one or more chemicals,including Lead,which are known to the State of California to cause cancer,birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
|
|---|
Label Information
| Certification, Codes, Standards | ANSI Z 21.24/CSA 6.10, ANSI Z 21.69/CSA 6.16, ANSI Z 21.75/CSA 6.27, Commonwealth of Massachusetts Board of State Examiners (except 48 in., 60 in., 72 in.), City of New York-MEA #376-92-M |
|---|
Related Documents
Brochure (PDF)
Installation Guide (PDF)
