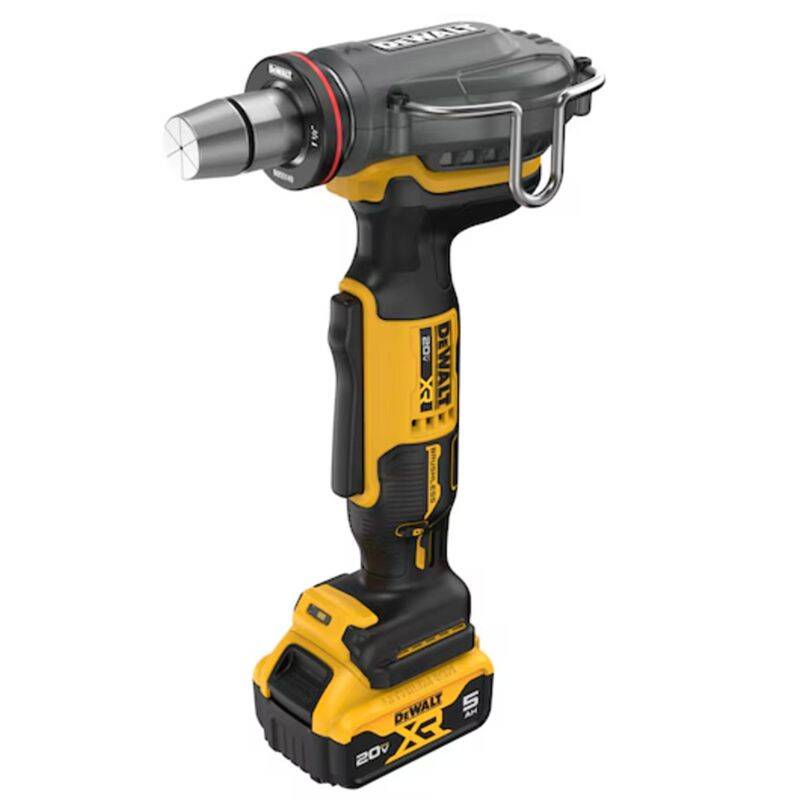

1-1/2-Inch 20-Volt Max XR Pex Expander Kit
- Mfg.#
- DCE410P1
- Sku#
- 3955549
- Lightest solution for expanding 1-1/4-inch and 1-1/2-inch PEX piping
- Automatic rotating head action for even pipe expansion
- Expands 3/8 - 1-1/2-inch ASTM F1960 approved PEX and PE-RT pipe
- Make up to 81 expansions on 1-1/2-inch PEX-A pipe per 5Ah battery
- Lightweight, right angle design for use in tight spaces with a secondary lower grip allowing for greater overhead reach
* Estimated stock levels as of Fri, Apr 10, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
The 20V MAX XR® 1-1/2-inch PEX Expander is the lightest cordless pro-grade solution for expanding 1-1/4 and 1-1/2-inch PEX pipe. DCE410 can expand 3/8 - 1-1/2-inch expansion-type PEX, including Uponor® ProPEX® tubing, and provides up to 20% faster speed of expansion than the Milwaukee® 2632 M18 PEX Expander. This kit includes 1, 1-1/4, and 1-1/2-inch expansion heads, and is compatible with the existing DEWALT 3/8 - 1-inch expansion heads (sold separately). The tool features a long, ergonomically designed body with upper and lower grip locations to optimize pipe expansions in overhead and body-height positions. Achieve even expansion surfaces with the auto-rotating head mechanism. Light up workspaces with the onboard LED and store the tool using its side-mounted hang hook. Experience significant runtime from a brushless motor that allows you to work all day on one battery. Add Bluetooth® tracking capabilities to this tool by pairing a Tool Connect™ Chip DCE042 (sold separately), via the CHIP-READY™ pocket on the foot of the tool.
* Maximum initial battery voltage (measured without a workload)
Specifications
General
| Battery Amp Hour | 5 |
|---|---|
| Color | Black, Yellow |
| Color Family | Yellow |
| Corded/Cordless | Cordless |

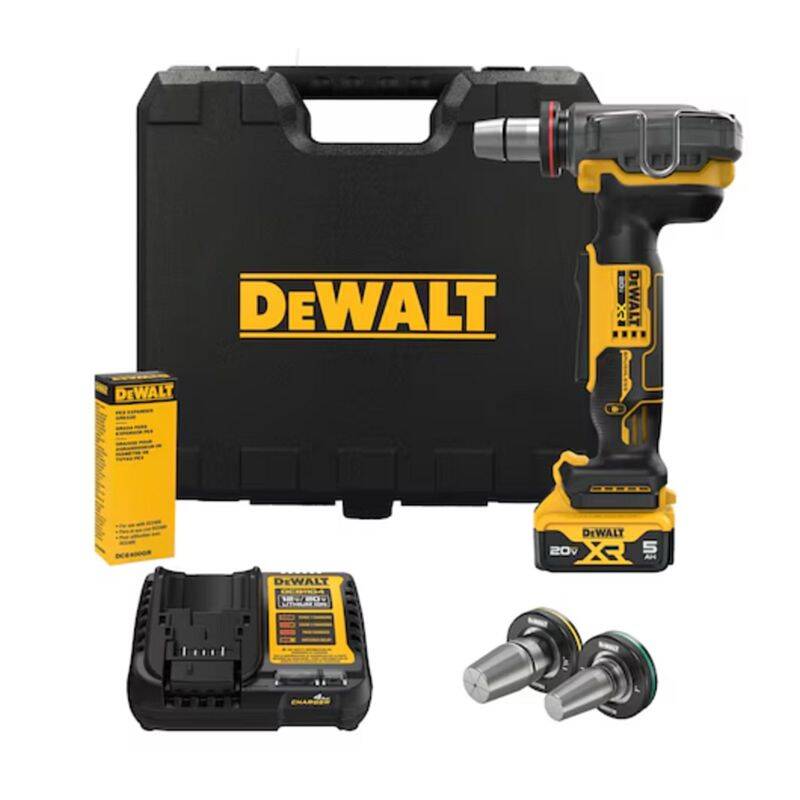

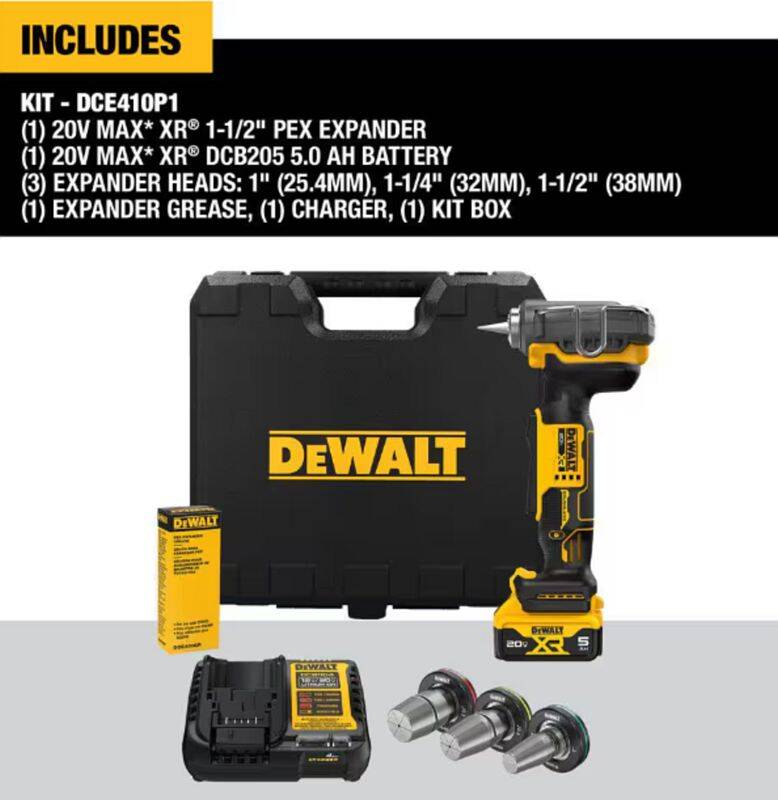

| Includes | Expander Tool, 1 20V Max XR 5AH Battery, Charger, 3 Expander Heads, Grease, Kit Box |
| Motor | Brushless |
| Number of Batteries Included | 1 |
| Type | PEX Expander |
| Voltage | 20 |
Dimensions
| Depth | 16.563 in |
|---|---|
| Height | 16.25 in |
| Weight | 19.32 lb |
| Width | 6.75 in |
Manufacturing Details
The following information is subject to change without notice
| Manufacturer Warranty | 3 yr limited |
|---|---|
| Shop USA | No |
