400-Amp HVAC Digital Clamp Meter
- Mfg.#
- CL320
- Sku#
- 3943016
- Clamp Meter measures AC current and NCVT via clamp and AC/DC voltage, resistance, frequency, DC microamps, capacitance, duty cycle, diode test, and continuity via test-leads, and temperature with thermocouple
- Non-contact voltage tester integrated into the clamp jaw
- Backlit LCD for ease of viewing in low light
- Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
- Test lead holder on side of clamp and optional magnetic hanger for meter (Cat. Nos. 69445 or 69417) for hands free operation
* Estimated stock levels as of Mon, Apr 20, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description

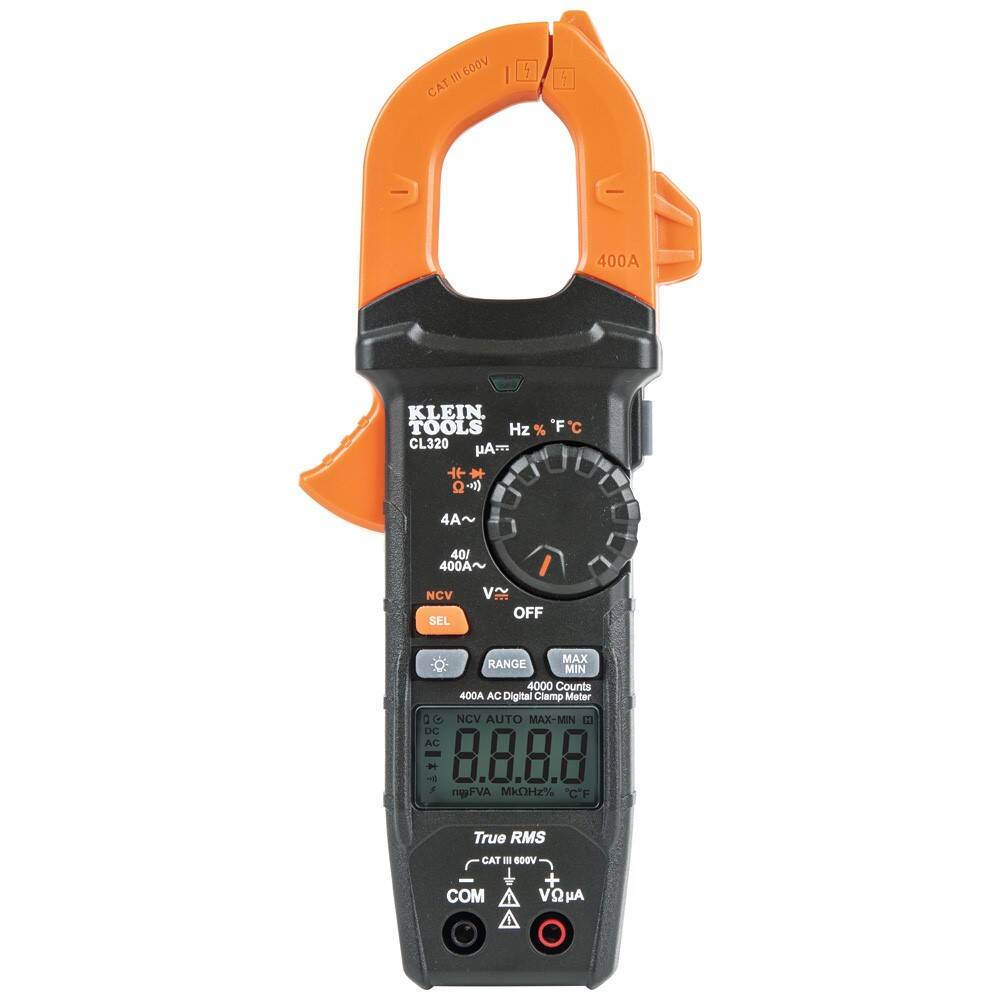

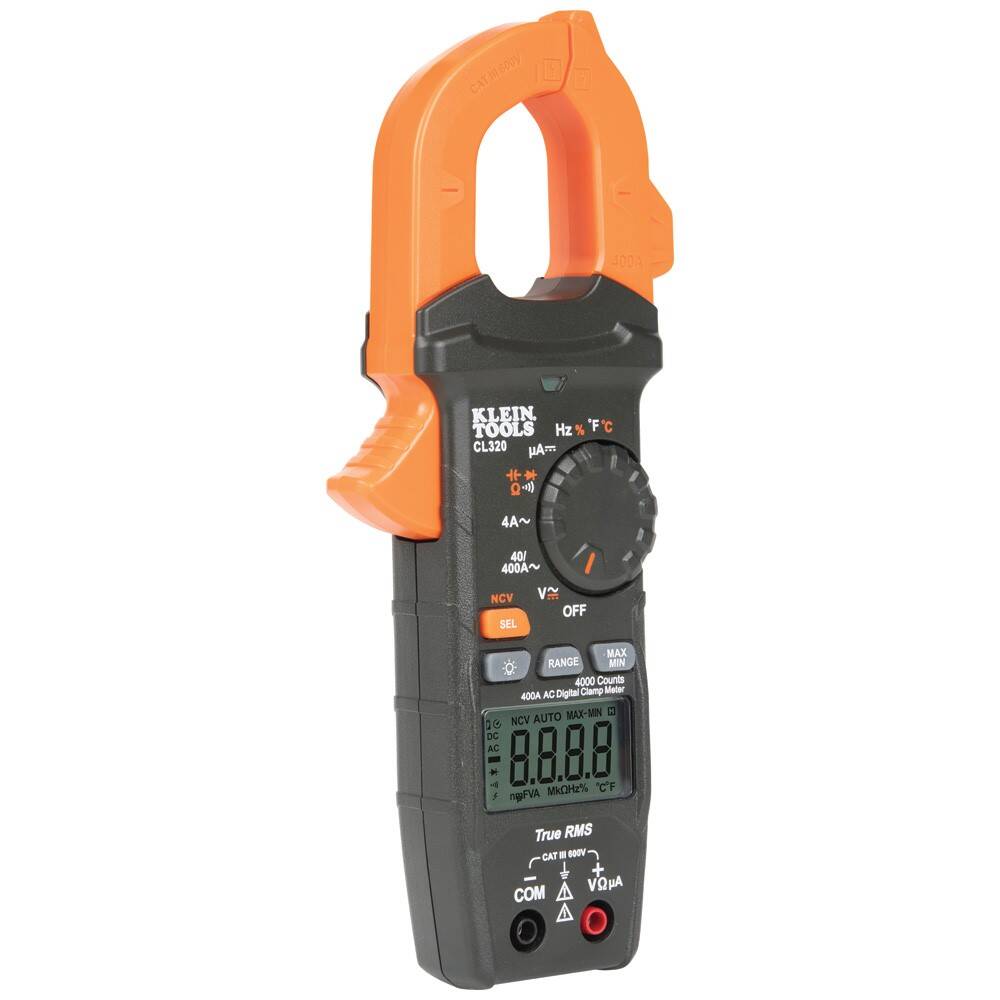

Klein Tools CL320 Clamp Meter is an automatically ranging true root mean square (TRMS) digital clamp meter that measures AC current and NCVT via the clamp, AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance, and tests diodes via test-leads, and temperature via a thermocouple probe. Features include Auto Range to improve efficiency and speed when making measurements; Diode Test to troubleshoot malfunctioning diodes; Max/Min to understand the variability from average of an electrical property being measured, and DC Microamps measurements when working with flame sensors.
Specifications
General
| Battery Type | AAA |
|---|---|
| Frequency Hz | 10 Hz -60 kHz |
| Functions | TRMS, AC Current, NCVT, AC/DC Voltage, Resistance, DC microamp, Frequency, Capacitance, Duty Cycle, Diode Test, Continuity, and Temperature |

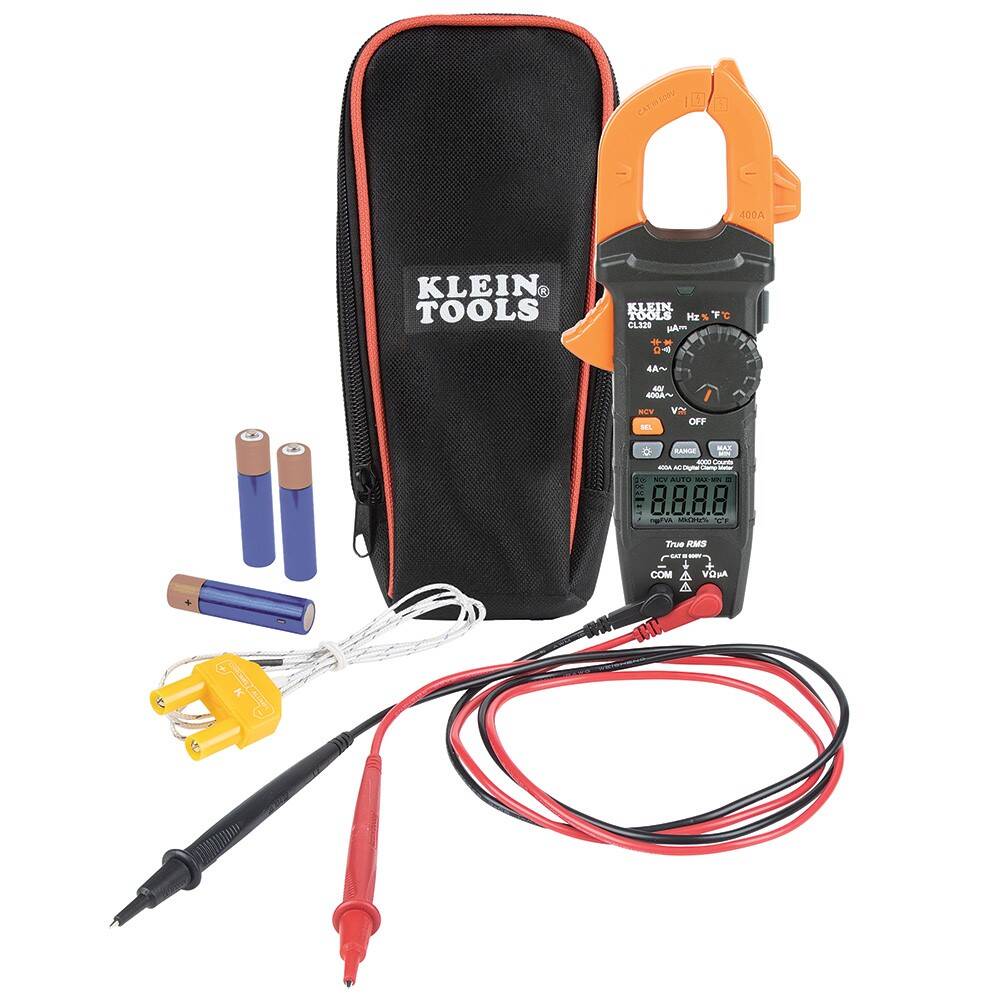

| Includes | Digital Clamp Meter; Carrying Case; Instructions; Test Leads; Thermocouple; Batteries |
| Jaw Size | 1.6 in |
| LCD Display | Backlit LCD |
| Material | ABS, Electronics |
| Temperature Range | -40° - 1832°F (-40° - 1000°C) |
| Type | Digital Clamp Meter |
| Volts | 600 |
Dimensions
| Height | 1.5 in |
|---|---|
| Length | 8.45 in |
| Width | 3.5 in |
