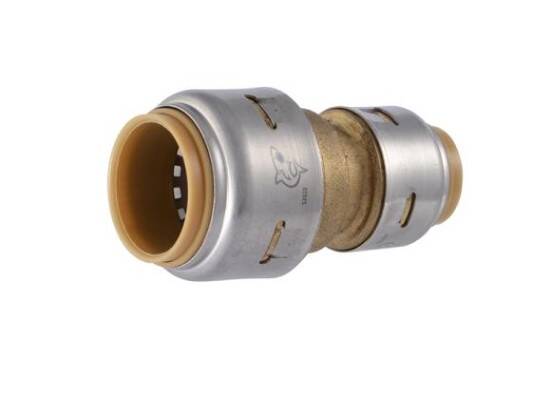

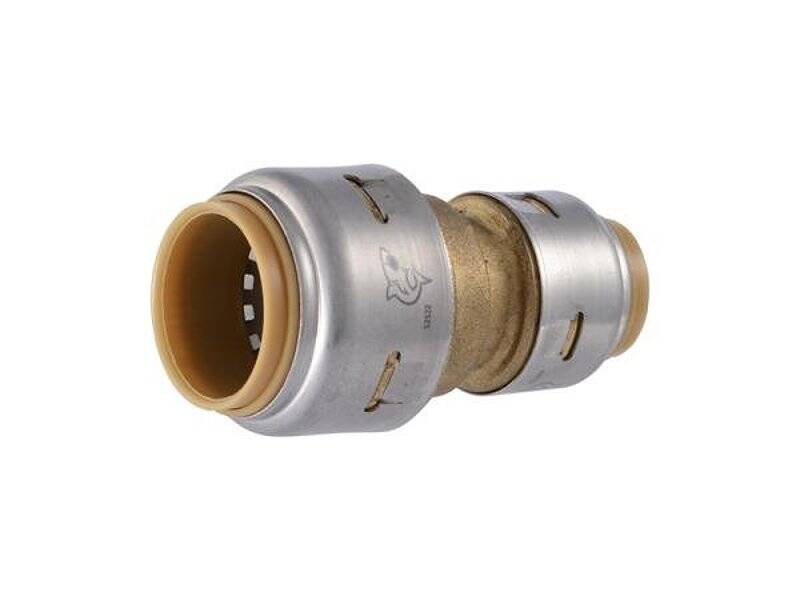

1/2 -Inch X 3/4-Inch Max Brass Reducing Pipe Coupling
- Mfg.#
- UR058A
- Sku#
- 3849072
- Fastest way to connect PEX, copper, CPVC, PE-RT or HDPE SDR-9 pipe.*
- Half the insertion effort, double the pressure rating.**
- Can be installed on wet lines and pressure tested immediately.
- Stainless steel retainer adds strength and durability.
- High-performance DZR lead-free brass body.
* Estimated stock levels as of Sun, Apr 12, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
SharkBite Max reducing couplings are designed to connect two different sizes of pipe. Compatible with PEX, copper, CPVC, PE-RT or HDPE SDR-9 pipe. The faster install time and versatile use reduces installation errors.
Specifications
General
| Connection | Push-to-Connect |
|---|---|
| Material | DZR Brass; Lead Free |
| Operating Temperature | 200° F |
| Pressure Rating | 250 PSI |
| Suitable for | PEX Copper CPVC PE-RT or HDPE SDR-9 Pipe |
| Type | Reducing Coupling |
Dimensions
| Nominal Size | 1/2 in x 3/4 in |
|---|
Manufacturing Details
The following information is subject to change without notice
| Manufacturer Warranty | 25-year warranty when properly installed on PEX, copper, CPVC and PE-RT. 5-year warranty when properly installed with HDPE SDR-9. |
|---|---|
| Prop 65 Warning |
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
|
Label Information
| Certification, Codes, Standards | ASSE 1061, CSA B125.3, NSF/ANSI 14, NSF/ANSI/CAN 372, ASTM E84, CAN/ULC S102.2, UL 263, ASTM E119, CAN/ULC S102 |
|---|
