- Some stock photographs may show options that are not included. Please check product description.

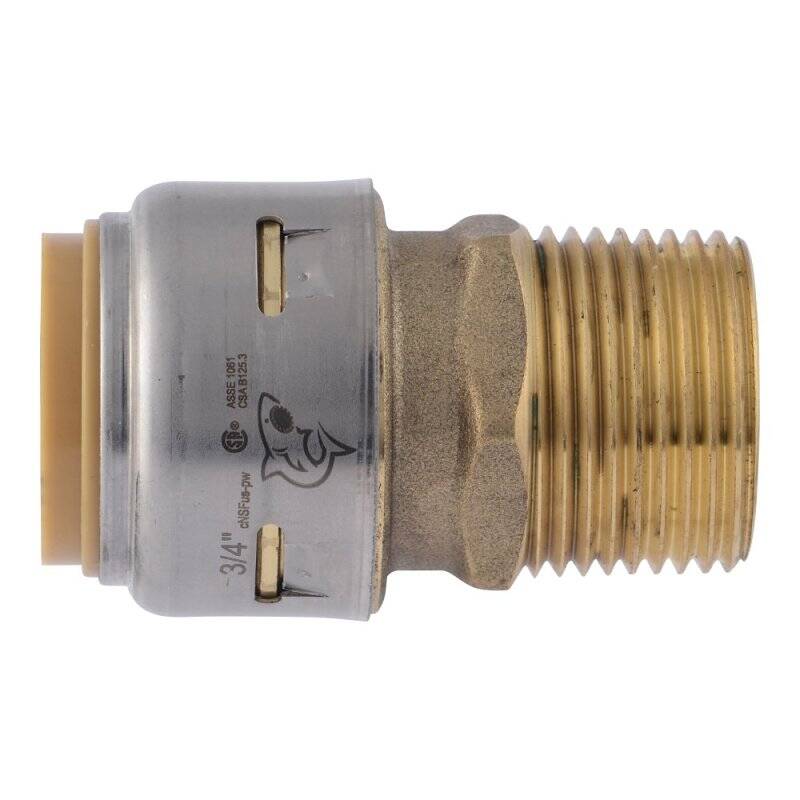

3/4-Inch X 3/4-Inch Max Brass Male Adapter Coupling
- Mfg.#
- UR134A
- Sku#
- 3848991
- Half the insertion effort for smoother and faster connections, double the burst pressure
- Can be installed on wet lines and pressure tested immediately
- Stainless steel retainer adds strength and durability
- High-performance DZR lead-free brass body
- No special tools, crimping, soldering or glue required
* Estimated stock levels as of Sat, Apr 11, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
SharkBite Max brass push-to-connect couplings make for quick and easy installations. Use the straight coupling to quickly connect two pieces of PEX, copper, CPVC, PE-RT or HDPE SDR-9 pipe in any combination. Approved for behind-the-wall and underground (when wrapped) applications, Max brass couplings offer the versatility to be permanently installed or provide a temporary fix while you work. SharkBite Max push-to-connect brass pipe connectors are ideal for working in tight spaces and can be leveraged wherever repairs are needed. The faster install time and versatile use reduces installation errors, allowing pros to schedule more jobs in a day.
Specifications
General
| Connection | Push-to-Connect |
|---|---|
| Material | DZR Brass |
| Operating Temperature | 200° F |
| Pressure Rating | 250 PSI |
| Suitable for | PEX Copper CPVC PE-RT or HDPE SDR-9 Pipe |
| Type | Pipe Coupling |
Dimensions
| Nominal Size | 3/4 in PTC x 3/4 in MNPT |
|---|
Manufacturing Details
The following information is subject to change without notice
| Manufacturer Warranty | 25-year warranty when properly installed on PEX, copper, CPVC and PE-RT. 5-year warranty when properly installed with HDPE SDR-9. |
|---|
Label Information
| Certification, Codes, Standards | ASSE 1061, CSA B125.3, NSF/ANSI 14, NSF/ANSI/CAN 61, NSF/ANSI/CAN 372, ASTM E84, CAN/ULC S102.2, UL 263, ASTM E119, CAN/ULC S101 |
|---|
Videos
Related Documents
Brochure (PDF)
Installation Sheet (PDF)
Warranty (PDF)
