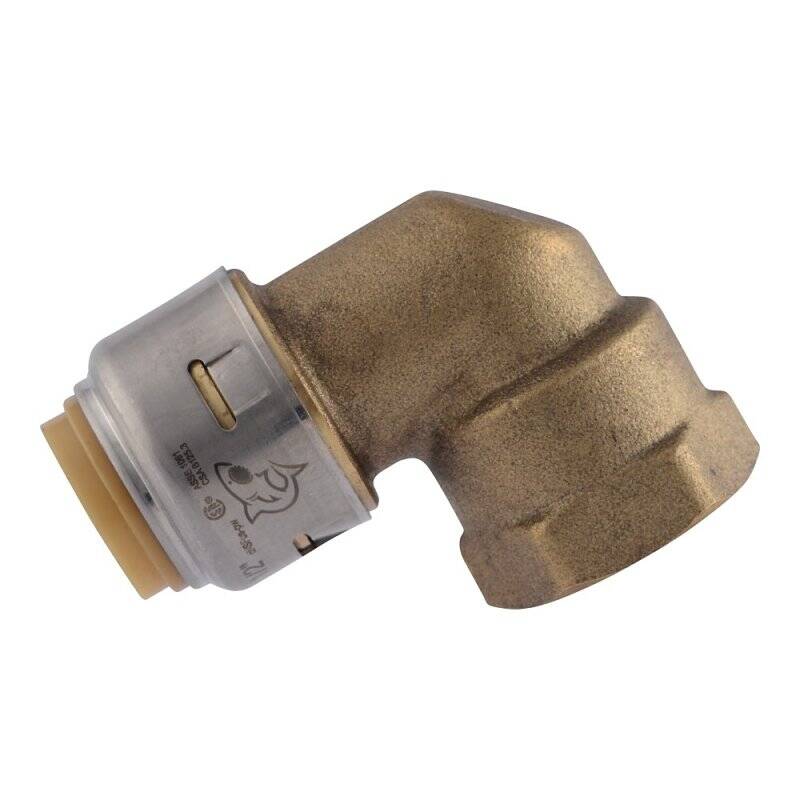

1/2 X 1/2-Inch Brass Push Female Adapter Elbow
- Mfg.#
- UR308A
- Sku#
- 3848892
- No special tools, crimping, glue or soldering required
- Can be installed in wet lines
- Approved for underground and behind-the-wall applications with no access panels (wrapping required when burying underground)
- Remove using a disconnect clip or disconnect tongs (both sold separately)
- Fastest way to connect PEX, copper, CPVC, PE-RT or HDPE SDR-9 pipe.*
* Estimated stock levels as of Sun, Apr 12, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
Innovative push-to-connect design makes for quick and easy transition between PEX, copper, CPVC, PE-RT or SDR-9 HDPE pipe to an MNPT threaded connection. Ideal for working in tight spaces. Faster install time and ease of use reduces installation errors.
Specifications
General
| Material | DZR Brass; Lead Free |
|---|---|
| Operating Temperature | 200° F |
| Pressure Rating | 200 PSI |
| Suitable for | PEX Copper CPVC PE-RT or HDPE SDR-9 Pipe |
| Type | Elbow Adapter |
Dimensions
| Nominal Size | 1/2 in PTC x 1/2 in FNPT |
|---|
Manufacturing Details
The following information is subject to change without notice
| Manufacturer Warranty | 25-year warranty when properly installed on PEX, copper, CPVC and PE-RT. 5-year warranty when properly installed with HDPE SDR-9. |
|---|---|
| Prop 65 Warning |
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
|
Label Information
| Certification, Codes, Standards | ASSE 1061, CSA B125.3, NSF/ANSI 14, NSF/ANSI/CAN 61, NSF/ANSI/CAN 372, ASTM E84, CAN/ULC S102.2, UL 263, ASTM E119, CAN/ULC S102 |
|---|
