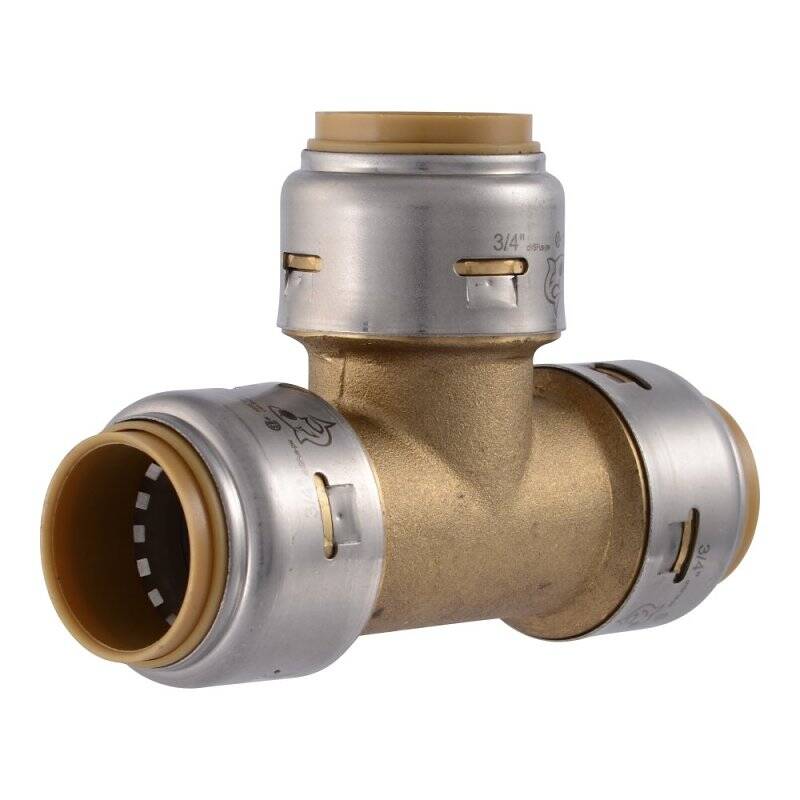

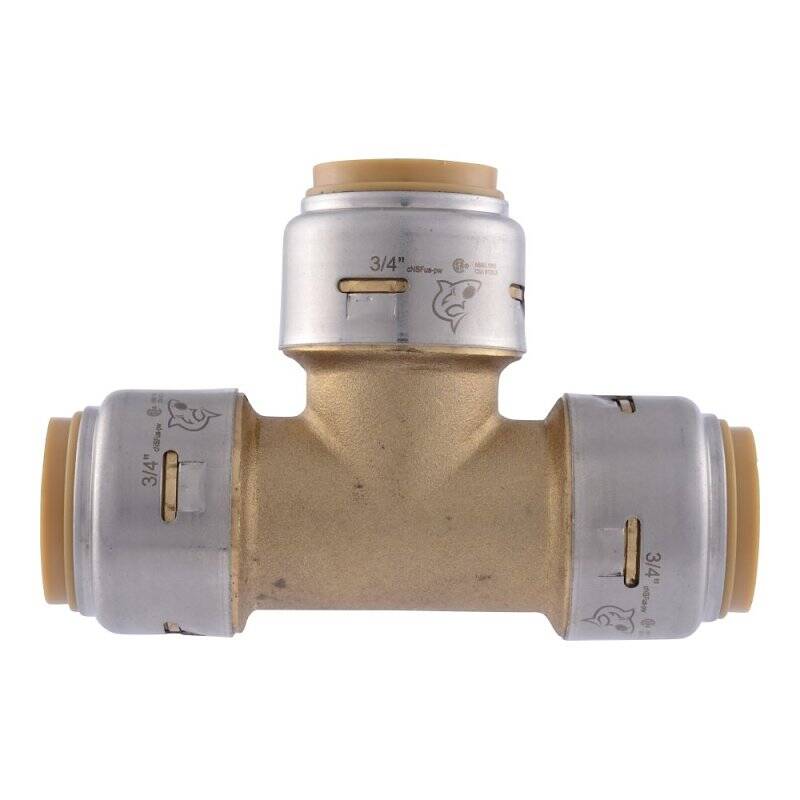

3/4-Inch Max Brass Push to Connect Pipe Tee
- Mfg.#
- UR370A
- Sku#
- 3848884
- Fastest way to connect PEX, copper, CPVC, PE-RT or HDPE SDR-9 pipe.*
- Half the insertion effort, double the pressure rating.**
- Can be installed on wet lines and pressure tested immediately.
- Stainless steel retainer adds strength and durability.
- High-performance DZR lead-free brass body.
* Estimated stock levels as of Sun, Apr 12, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
SharkBite Max™ allows users to connect pipe with ease- no tools needed. This new design features a stainless steel retainer for extra strength, higher-pressure ratings (250 psi) and a lower insertion e ort than previous versions of SharkBite brass push-to-connect fittings. SharkBite Max fittings do not require a PEX sit enter and are compatible with PEX, copper, CPVC, PE-RT and HDPE.
Specifications
General
| Connection Type | Push-to-Connect |
|---|---|
| Material | DZR Brass |
| Operating Temperature | 200 deg F |
| Pressure Rating | 250 psi |
| Suitable for | PEX Copper CPVC PE-RT and HDPE Pipe |
| Type | Tee |
Dimensions
| Nominal Size | 3/4 in |
|---|
Manufacturing Details
The following information is subject to change without notice
| Manufacturer Warranty | 25-year warranty when properly installed on PEX, copper, CPVC and PE-RT. 5-year warranty when properly installed with HDPE SDR-9. |
|---|---|
| Prop 65 Warning |
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
|
Label Information
| Certification, Codes, Standards | ASSE 1061, CSA B125.3, NSF/ANSI 14, NSF/ANSI/CAN 61, NSF/ANSI/CAN 372, ASTM E84, CAN/ULC S102.2, UL 263, ASTM E119, CAN/ULC S101 |
|---|
Videos
Related Documents
Brochure (PDF)
Installation Sheet (PDF)
Warranty (PDF)
