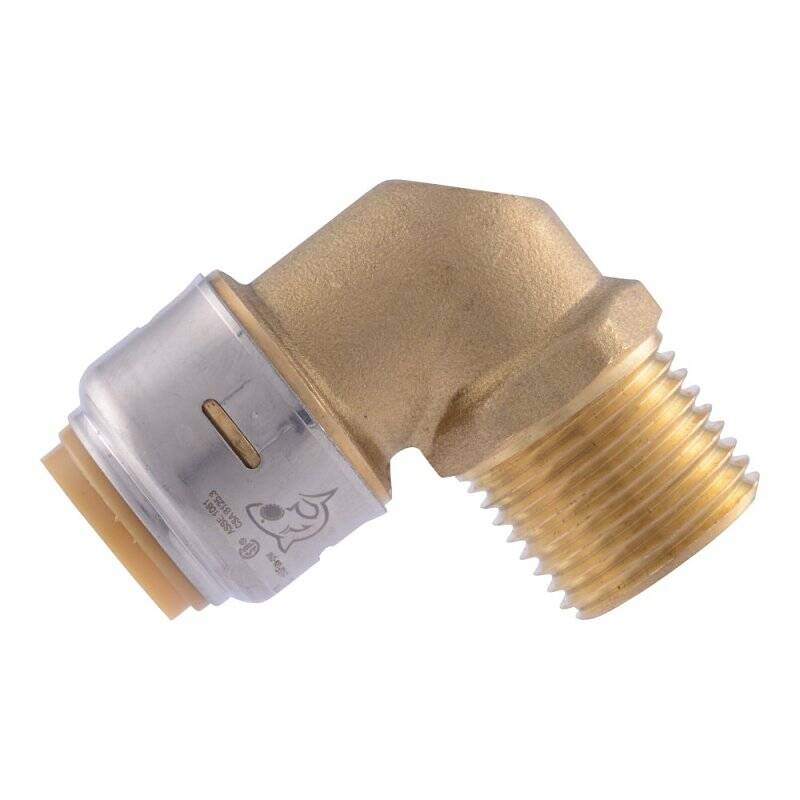

1/2-Inch X 1/2-Inch Max Brass Male Adapter Elbow
- Mfg.#
- UR280A
- Sku#
- 3848751
- No special tools, crimping, glue or soldering required
- Remove using a disconnect clip or disconnect tongs (both sold separately)
- Fastest way to connect PEX, copper, CPVC, PE-RT or HDPE SDR-9 pipe.
- Half the insertion effort, double the pressure rating.
- Can be installed on wet lines and pressure tested immediately.
* Estimated stock levels as of Sun, Apr 12, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
SharkBite Max male adapter elbows are designed to connect CTS pipe to a FNPT threaded connection. Compatible with PEX, copper, CPVC, PE-RT or HDPE SDR-9 in any combination, the Max adapter elbows are ideal for pipe transitions.
Specifications
General
| Connection | CTS pipe to a FNPT threaded connection |
|---|---|
| Material | DZR Brass; Lead Free |
| Operating Temperature | 200° F |
| Pressure Rating | 250 PSI |
| Suitable for | PEX Copper CPVC PE-RT or HDPE SDR-9 Pipe |
| Type | 90-Degree Elbow |
Dimensions
| Nominal Size | 1/2 in PTC x 1/2 in MNPT |
|---|
Manufacturing Details
The following information is subject to change without notice
| Manufacturer Warranty | 25-year warranty when properly installed on PEX, copper, CPVC and PE-RT. 5-year warranty when properly installed with HDPE SDR-9. |
|---|---|
| Prop 65 Warning |
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
|
Label Information
| Certification, Codes, Standards | ASSE 1061 CSA B125.3 NSF/ANSI 14 NSF/ANSI/CAN 61 NSF/ANSI/CAN 372 ASTM E84 CAN/ULC S102.2 UL 263 ASTM E119 CAN/ULC S102 |
|---|
