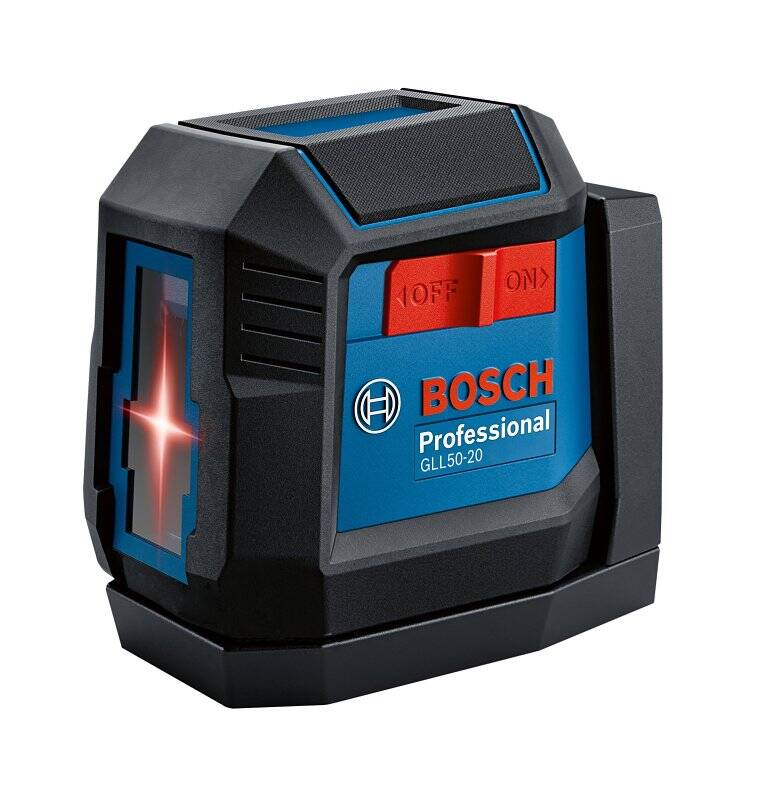

Red Self-leveling Cross-Line Laser Level
- Mfg.#
- GLL50-20
- Sku#
- 3818259

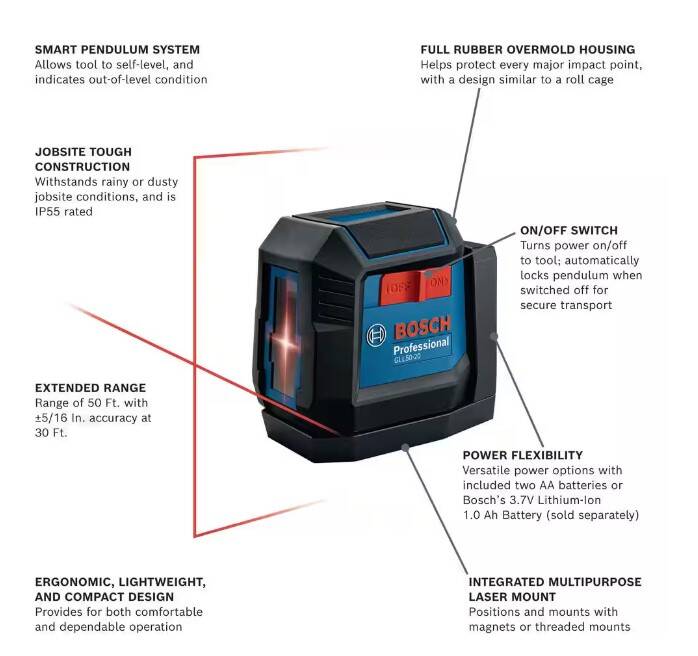

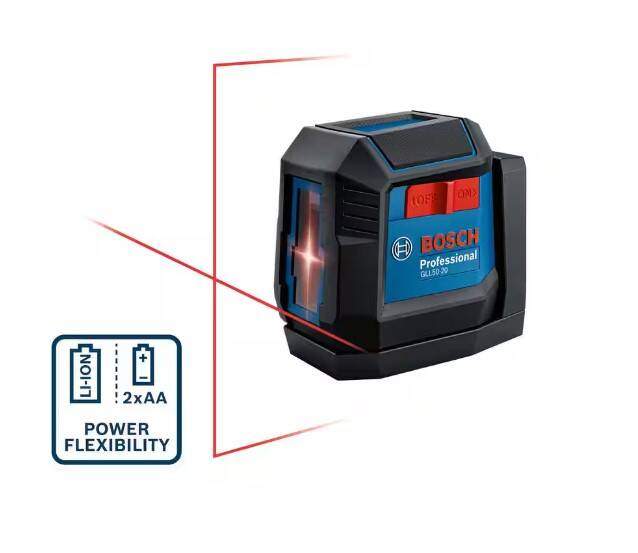

- Power flexibility works with two AA batteries (included) or Bosch's 3.7 V lithium-ion 1 Ah battery (sold separately), for less downtime on the job
- Full rubber overmold housing - helps protect every major impact point, with a design similar to a roll cage

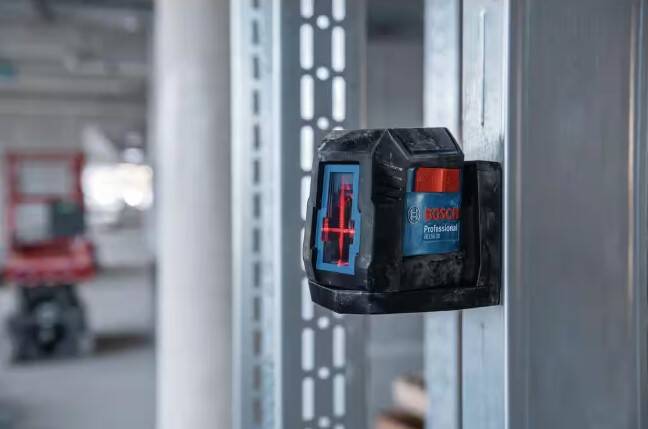

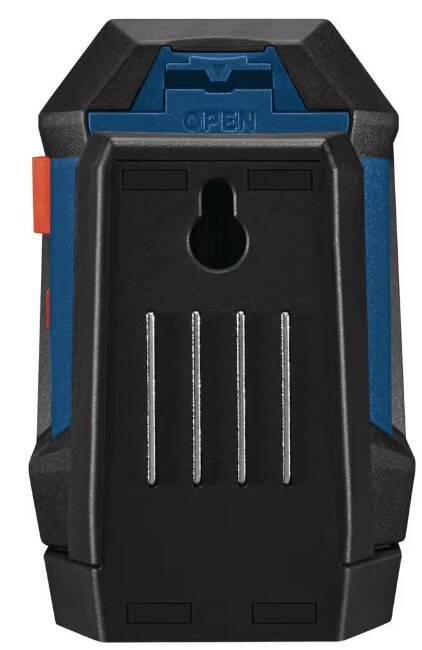

- Integrated multi-purpose laser mount - positions and mounts with magnets or threaded mounts
- Jobsite tough construction - IP55 rating offers dust and water resistance
- Cross-line mode projects two level and plumb lines
* Estimated stock levels as of Thu, Apr 2, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
The Bosch GLL50-20G Self-Leveling Cross-Line Laser projects two level and plumb green beams that are up to 4X brighter than standard red beams. Featuring a 65 Ft. range that allows for leveling within a 1/4 In. accuracy at 30 Ft., it’s a must-have for any tool bag. With its power flexibility, operate using the included AA batteries or purchase the Bosch 3.7V Lithium-Ion 1.0 Ah Battery (sold separately) that can even be used while charging to diminish downtime. Built-in VisiMax™ Technology optimizes line visibility and runtime for working conditions to further maximize usage. Its ergonomic, compact, lightweight design and IP55 dust- and water-resistant rating, provide for both comfortable and dependable operation. The full rubber overmold housing helps protect every major impact point, acting like a roll cage to safeguard the tool. Equipped with a Smart Pendulum System, the tool self levels, will indicate any out-of-level condition by blinking and then locks when switched off for secure transport. Simply tilt the laser to use the lines at an angle with ease. Position the tool with the included integrated magnetic mount or utilize the 1/4 In. threading mount that fits with like-sized tripods.
Specifications
General
| Accuracy | 5/16 in |
|---|---|
| Battery Capacity | 1 Ah |
| Battery Type | Lithium-Ion |
| Battery Voltage | 3.7 V |
| IP Rating | IP55 |
| Includes | (2) AA Batteries and (1) Integrated Magnetic Mount |
| Laser Color | Red |
| Laser Diode | 630 to 650 nm |
| Leveling Type | Self-Leveling |
| Mounting Type | Magnetic Thread |
| Number of Beams | 2 |
| Operating Temperature | 14° F / -10° C up to 104° F / 40° C |
| Range | 5o ft |
| Suitable for | BT 150 Tripod BP50 Telescoping Pole BM 1 BM3 LB10 MM 2 Mounts Positioning Devices GR 16 and GR500 Grade Rods |
| Type | Laser Level |
Dimensions
| Height | 3 9/10 in |
|---|---|
| Length | 4 1/10 in |
| Width | 2 1/2 in |
