Badger Full Size Front Tine Tiller
- Mfg.#
- 38040
- Sku#
- 3805744
- 140cc Briggs and Stratton Engine
- Tuck Under Wheels For Easy Transport
- Adjustable Tilling Width (11", 16" or 21")
* Estimated stock levels as of Wed, May 13, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description

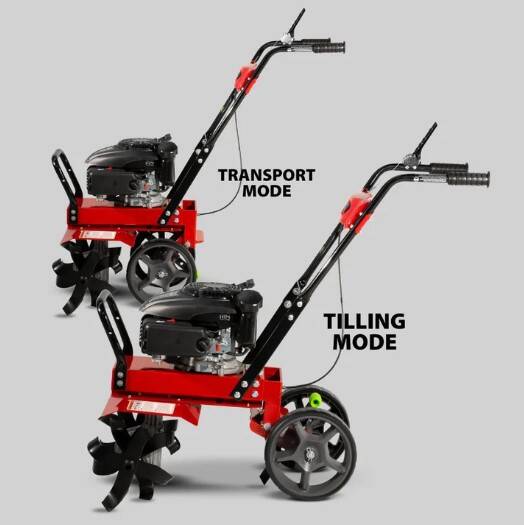

The Earthquake Badger Front Tine Tiller features a two-position, heavy-duty, cast iron tail and wheel assembly. With the wheels in the forward position, transport is a breeze. In the extended position, the center of gravity is lowered for incredible control and deep-tilling performance in the row.
Powered by a 140cc 4-cycle Briggs and Stratton engine, the Badger provides plenty of power to accomplish your tilling tasks. Easily adjust the tilling width with no tools required by simply adding or removing tines. The tilling width can be adjusted from 11 inches, up to 21 inches wide. With its compact frame and balanced weight distribution, the Badger allows for fluid navigation in tight growing spaces and stable pivoting capability at the end of garden rows. The airless wheels, robust forged tines, and all steel construction are all hallmarks of a Front Tine Tiller built to last.
Specifications
General
| CC Displacement | 140 |
|---|---|
| Drive System | Bronze Gear Drive |
| Engine | Briggs and Stratton Engine |
| Engine Torque | 5.5 FT-LB Gross |
| Engine Type | 4-cycle |
| Fuel Tank Capacity | 0.20 GAL |
| Fuel Type | 87+ Octane Unleaded Gasoline |
| Garden Tiller Type | Front Tine Tiller |
| Gear Ratio | 7.5:1 |
| Model Number | 38040 |
| Number of Speeds | 1 |
| Oil Capacity | 16 fl oz |
| Oil Type | SAE 10W-30 |
| Self Propelled | No |
| Starting System | Recoil |
| Tilling Depth | 11 in |
| Tilling Width | Adjustable: 11", 16", 21" |
| Tine Rotation | SRT |
| Tire Diameter | 11.2 in |
| Tire Material | Plastic |
| Tire Width | 2.7 in |
| Type | Front Tine Tiller |
Dimensions
| Tine Diameter | 11.6 in |
|---|---|
| Weight | 102 lb |
Manufacturing Details
The following information is subject to change without notice
| Manufacturer Warranty | 5-Year Limited Product, 2-Year Limited Engine |
|---|---|
| Prop 65 Warning |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
|
Label Information
| Certification, Codes, Standards | CARB, EPA III, ICES-002 |
|---|
