3/4-Inch FIP Brass Tankless Water Heater Valve Kit
- Mfg.#
- 102-120
- Sku#
- 3797404
- Full port for maximum flow rate
- Compact valve size suitable for most tankless water heater installations
- Integrated drain valve for quick system maintenance

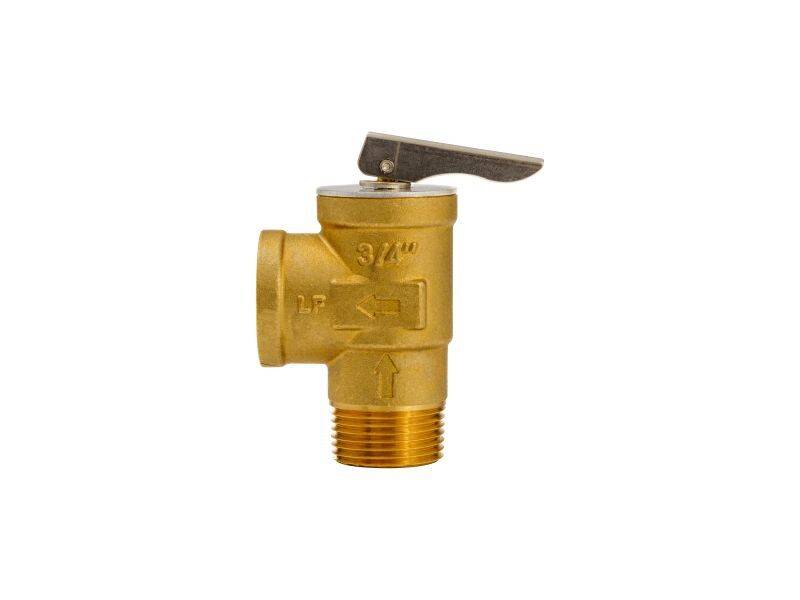

- Includes pressure relief valve
- Lead-free forged brass body
* Estimated stock levels as of Sat, Apr 11, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description

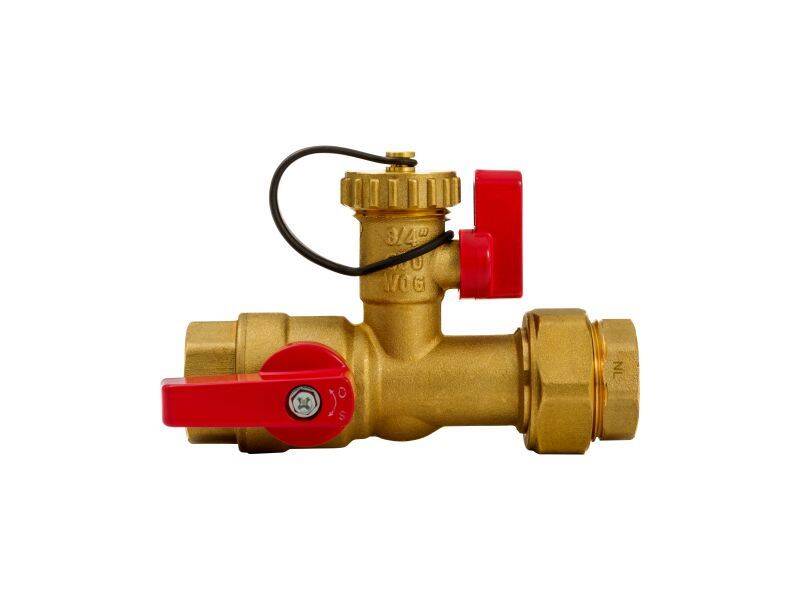

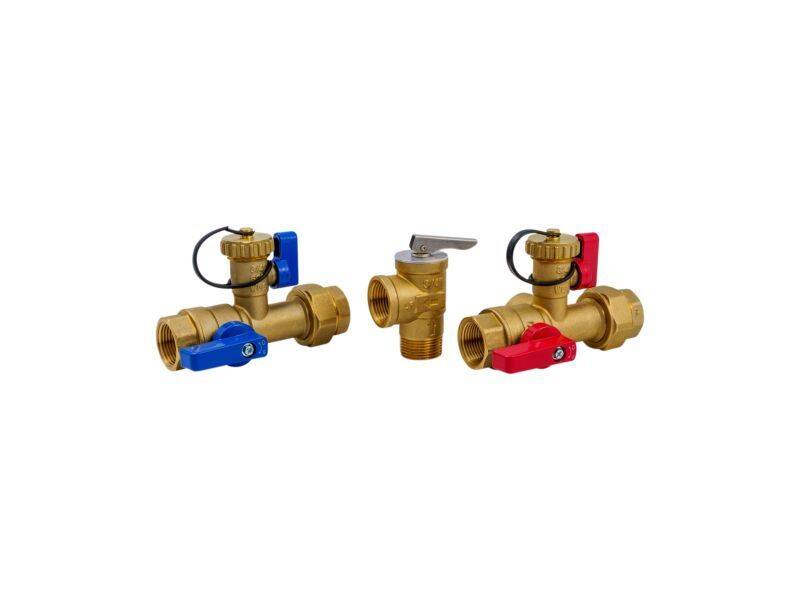

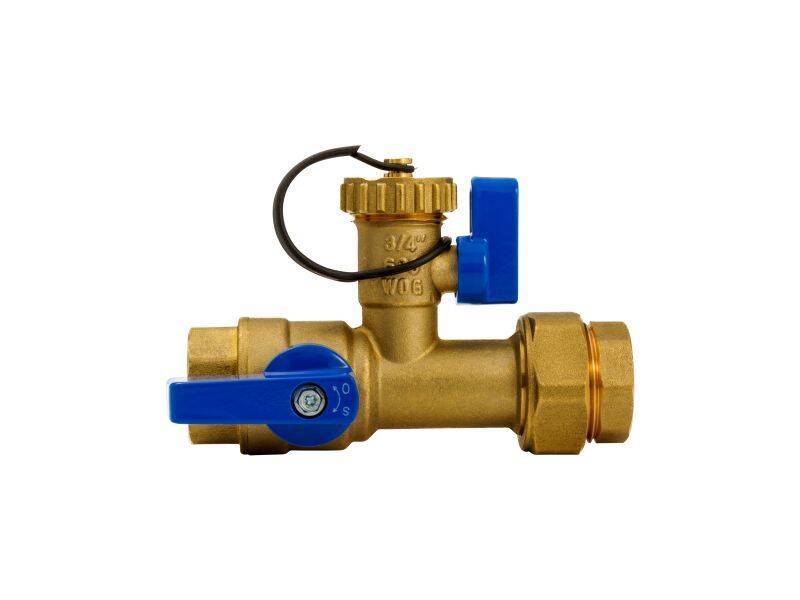

ProLine Series 7700WH Tankless Water Heater Valve Kit is designed to work with tankless water heaters. Replacing multiple fittings and connections from traditional water heaters, this kit features two quarter-turn valves and a brass relief valve that helps you connect to and maintain your tankless water heater.
Specifications
General
| Approx Product Weight (lb) | 3.6 lbs |
|---|---|
| Inlet Connection | FIP |
| Inlet Diameter | 3/4 in |
| Material | Brass |
| Maximum Working Temperature | 73ºF |
| Maxiumum Working Pressure | 600 PSI |
| Outlet Connection Type | FIP |
| Outlet Diameter 1 | 3/4 in |
| Product Height | 2.83 in |
| Product Length | 4.64 in |
| Product Width | 2.76 in |
| Temperature Range | 32ºF -180ºF |
| Type | Water Heater Installation Kit |
| Working Pressure | 125 PSI |
Manufacturing Details
The following information is subject to change without notice
| Manufacturer Warranty | 1-year limited warranty |
|---|---|
| Prop 65 Warning |
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
|
Label Information
| Certification, Codes, Standards | NSF/ANSI 61,ANSI Z21.22/CSA 4.4,NSF/ANSI 372,ASME A112.4.14/CSA B125.14 |
|---|
