White and Gray Air Lift Vertical Opening System, 2-Pack
- Mfg.#
- AT00MD30
- Sku#
- 3764149
- Integrated soft-close mechanism
- Works without hinges
- Smooth opening without resistance
- Stays open in any position
* Estimated stock levels as of Sat, Mar 14, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description

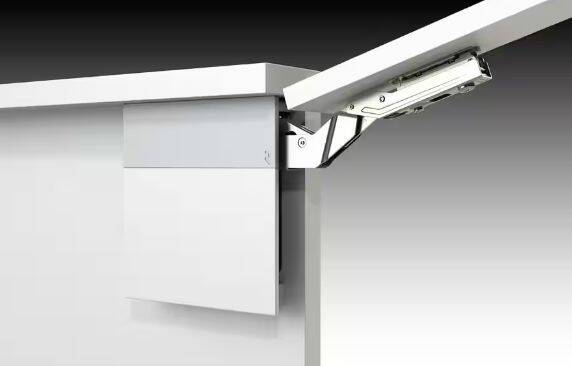

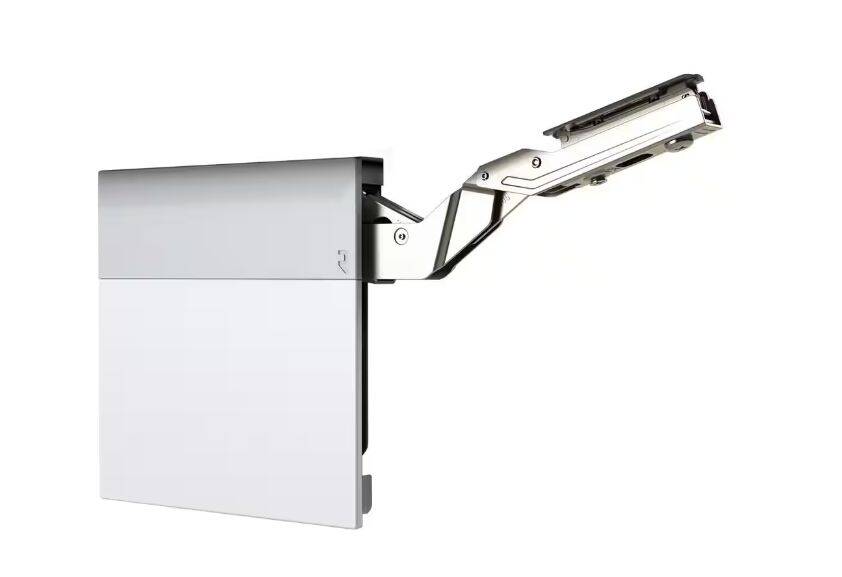

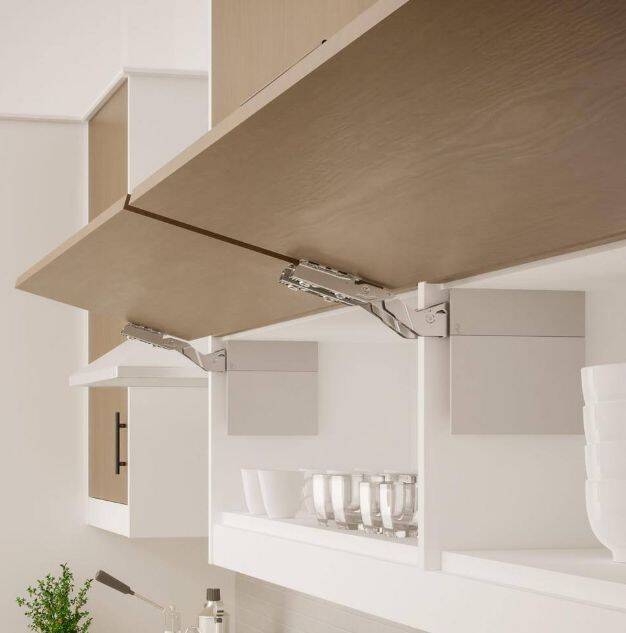

Richelieu is launching aiR, its new line of opening systems! Atmos is the very first series from this new line of opening systems. Atmos is a 107° ascending opening system that is incredibly strong and easy to install. In fact, Atmos works without any hinges! Simply screw inside your cabinet. When opening Atmos, the system will stop at your chosen position. When closing Atmos, the integrated soft-close mechanism will offer a smooth movement. You can also adjust the power of the closing mechanism to adapt it to the weight and dimensions of any door.
Specifications
General
| Application | For wood doors and wide aluminum frames. For cabinets with a height between 7 7/8 in (200 mm) and 19 11/16 in (500 mm). For cabinets with a maximum width of 47 1/4 in (1200 mm) |
|---|---|
| Door Height | 7 7/8 to 19 5/8 in |
| Door Type | Wood Door, Wide Aluminum-Framed Door |
| Finish | White and Gray |
| Fits To | Door Lengths 0 to 47 1/4 in |
| Hinge Opening Angle | +107° |
| Includes | 2 mechanisms, 2 caps, 2 door adaptors, Screws, Drilling template |
| Material | Plastic, Metal |
| Motion Technology | Soft-Close, Stay Open |
| Pack Qty | 2 |
| Series | Atmos - aiR System |
| Type | Lift System |
Manufacturing Details
The following information is subject to change without notice
| Manufacturer Warranty | Atmos is covered by Richelieu Hardware's limited lifetime warranty |
|---|---|
| Shop USA | No |
Dimensions
| Overall Dimensions | Height: 1 1/5 in (30 mm) Length: 6 1/2 in (165 mm) Width: 6 1/2 in (165 mm) |
|---|
Label Information
| Certification, Codes, Standards | KCMA |
|---|
