SharkBite™

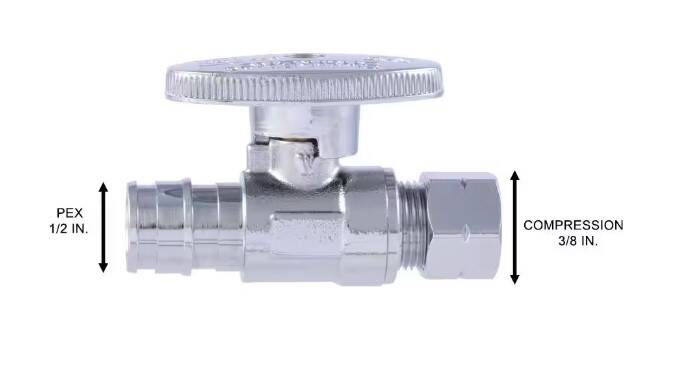

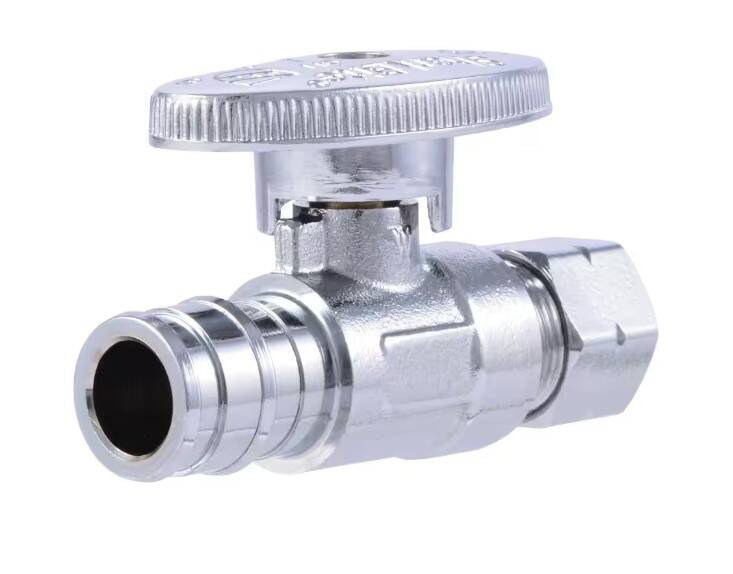

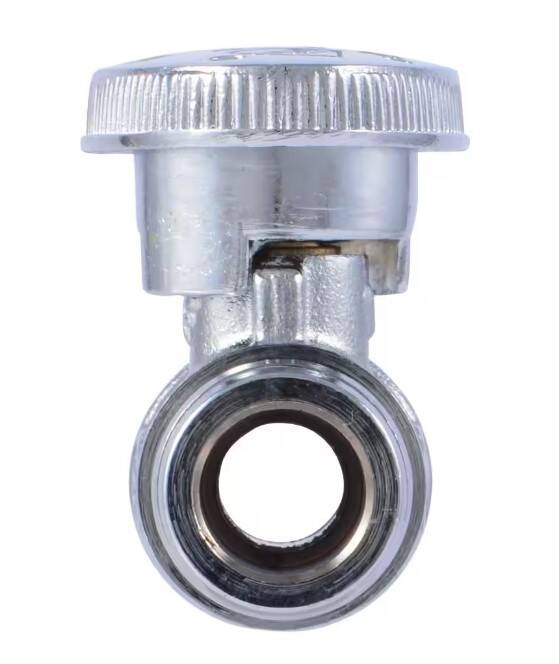

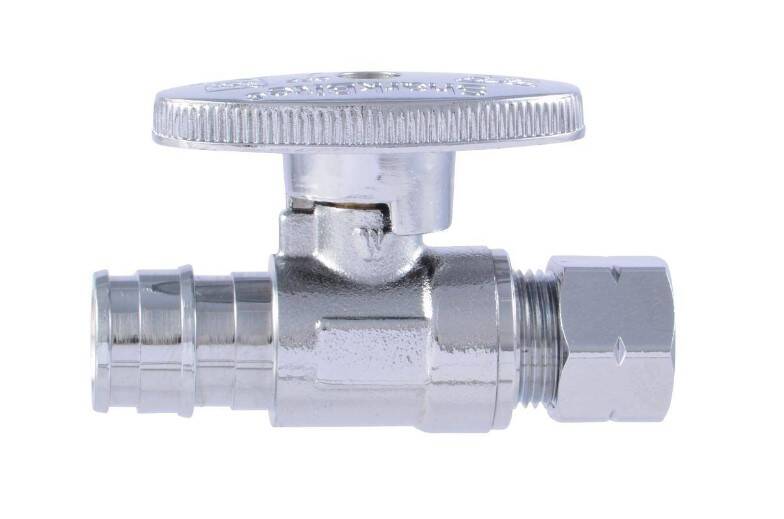

1/2 Inch Pex-A Expansion X 3/8 Inch O.D. Compression Straight Stop Valve

Mfg.#
UAB23057LFA
Sku#
3744554
  • Sleek chrome finish for an attractive appearance
  • Quarter-turn full-port brass ball valve
  • Compatible with PEX-A pipe
  • Minimum working temperature: 33°F @ 125 psi
  • Maximum working temperature/pressure: 160°F @ 125 psi

* Estimated stock levels as of Sun, Apr 19, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.

Description

SharkBite™ expansion fittings are designed for use with PEX-a tubing and must be used in conjunction with SharkBite expansion rings. SharkBite expansion fittings have a 25-year system warranty when used with SharkBite PEX-a tubing.

Specifications

General

Insertion Depth 0.72 in
Type Straight Stop Valve

Dimensions

Size 1/2 in x 3/4 in

Manufacturing Details
The following information is subject to change without notice

Label Information

Certification, Codes, Standards ASME A112.18.1/CSA B125.1, NSF/ANSI 14, NSF/ANSI/CAN 61, NSF/ANSI/CAN 372

Related Documents

InstructionsPDF (PDF)
