- Some stock photographs may show options that are not included. Please check product description.

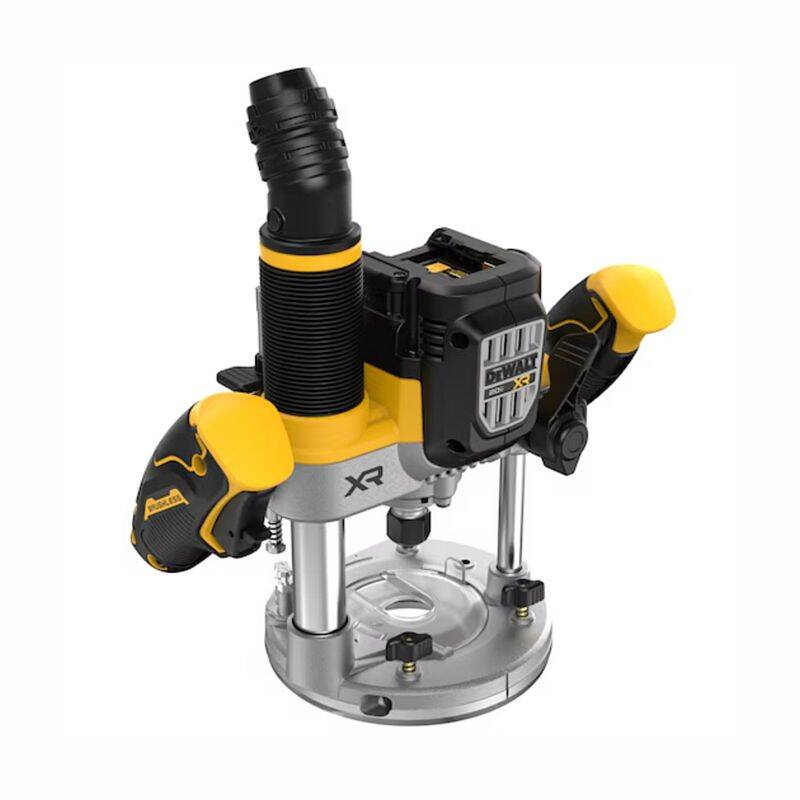

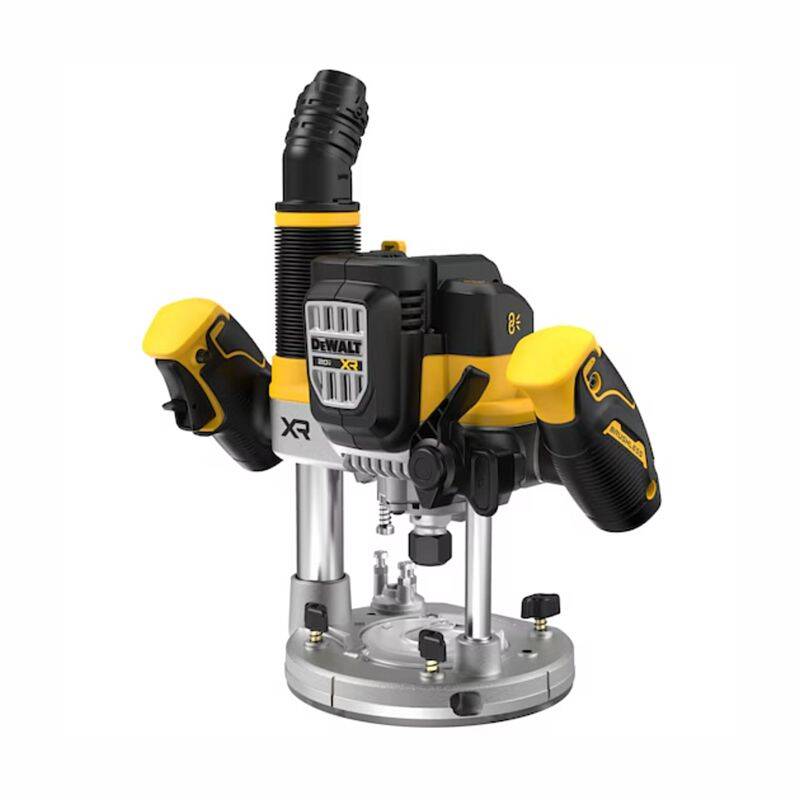

2-1/4-Inch 20-Volt Max XR Brushless/Cordless Peak Hp Plunge Router, Tool Only
- Mfg.#
- DCW620B
- Sku#
- 3743622
- Take on tough applications without the hassle of a cord.
- Complete up to 256 linear feet routing 5/8-inch roundovers in pine on a single charge (using DCBP520 battery sold separately).
- Equipped with the ANTI-ROTATION System that senses the rotational motion of the tool and shuts it down if the motion is excessive. The red LED indicator illuminates when the ANTI-ROTATION System is engaged.
- Quickly match the speed of the router to the application at hand with the variable speed dial with constant speed under load that offers (no-load) 11,000-23,000 RPMs.
- Make quick depth adjustments with the 3-position adjustable turret stop.
* Estimated stock levels as of Sat, Apr 11, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description

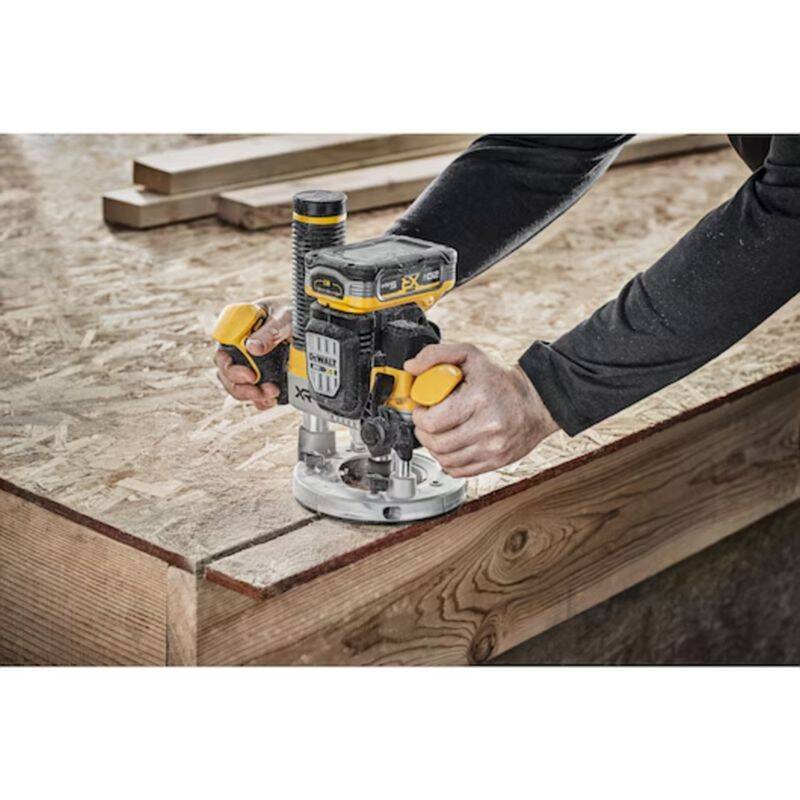

The world's first 20V MAX* cordless 2-1/4 Peak HP dedicated plunge router delivers consistent cutting performance without the hassles of a cord. From meticulous edgework to aggressive plunge cuts, the 20V MAX* XR®2-1/4 Peak HP Plunge Router (battery and charger sold separately) features a 2-1/4 peak horsepower brushless motor that seamlessly handles bits up to 2-1/2-inches in diameter. The variable speed dial helps maximize user control while maintaining constant speed under load. This router can complete up to 256 linear feet routing 5/8-inch roundovers in pine on a single charge† and helps to maintain a clean workspace with integrated dust collection with AirLock™ compatibility. Designed for tough jobsites, the PERFORM AND PROTECT™ ANTI-ROTATION system senses the motion of the tool and shuts it down if the motion is excessive.
* Maximum initial battery voltage (measured without a workload)
Specifications
General
| Amps | 0.0 |
|---|---|
| Collet Diameter | 1/2,1/4-inch |
| Corded/Cordless | Cordless |
| Horsepower | 2.25 |
| Motor | Brushless |
| Type | Router |
| Volts | 20 |
Dimensions
| Depth | 8.379 in |
|---|---|
| Height | 5.75 in |
| Weight | 4.15 lbs |
| Width | 6.1 in |
Manufacturing Details
The following information is subject to change without notice
| Manufacturer Warranty | 3 yr limited |
|---|
Label Information
| Certification, Codes, Standards | CSA Listed |
|---|
