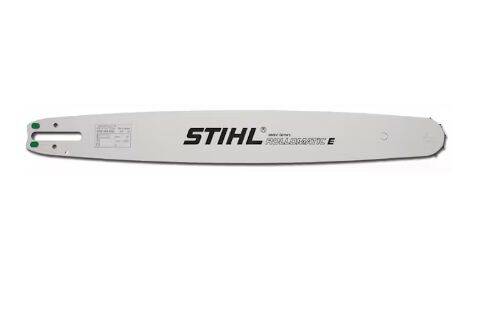

16-Inch Rollomatic® E 62-Drive Link 0.063-Inch Gauge Standard Chain Saw Guide Bar
- Mfg.#
- 3005 4713
- Sku#
- 3658119
- STIHL recommends using low-kickback, green-labeled chain and green-labeled reduced-kickback bars on all powerheads
* Estimated stock levels as of Sat, Mar 7, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
The ROLLOMATIC® E is a general-grade laminated guide bar made of high-grade steel. Consisting of three electrically welded metal plates, it is lightweight, yet provides great stability. A sprocket is incorporated in the nose of the bar that carries the saw chain from the top to the bottom of the bar. This not only reduces wear, but also enables the bar nose to be made considerably narrower. This type of construction is an advantage where extensive use is made of the bar nose (i.e. limbing and boring). All STIHL ROLLOMATIC® bars are designed with a narrow nose to help reduce kickback tendencies. And the star-shaped sprocket can be replaced several times before the whole bar is due for replacement, increasing the service life of the bar.
Specifications
General
| Application | All-around guide bar suitable for small-to-medium-duty chainsaws |
|---|---|
| Bar Length | 16 in |
| Color | Silver |
| Drive Links | 62 |
| Fits | Stihl: 010, 012, 017, 020, 023, 021, MSE 180 Electric, 025, MSE 140 Electric, MS 181, MS 192 T, 019 T, 018, 009, 015, MS 250, MS 241, MS 211, MS 171, 020 T, MSE 160 Electric, MSE 200 Electric, HT 70 Pole Pruner, MS 231, 011, E 10 Electric, HT 100 Pole Pruner, HT 130 Pole Pruner, HT 73 Pole Pruner, HT 56 Pole Pruner, MS 150 TC, MS 200, MS 201, E 14 Electric, E 140 Electric, E 160 Electric, E 180 Electric, HT 101 Pole Pruner, HT 131 Pole Pruner, HT 250 Pole Pruner, HT 75 Pole Pruner, HTE 60 Pole Pruner, MS 150, MS 170, MS 180, MS 190 T, MS 191 T, MS 200 T, MS 201 T, MS 210, MSA 200 Cordless, MS 230, MSA 160 Cordless, MS 251 ; Olympyk (Oleo?Mac) 240, 241, 244, 935 |
| For Use With | Small-to-medium-duty chainsaws |
| Gauge | 0.063 in |
| Guide Bar Length | 16 in |
| Material | Steel |
| Pack Qty | 1 |
| Pitch | 0.325 in |
| Series | Rollomatic® E |
| Sprocket Type | Star-Shaped |
| Suitable for | Limbing and Boring |
| Suitable for Use With | Stihl 26 RM3 62 chain |
| Type | Chain Saw Bar |
Dimensions
| Length | 16 in |
|---|---|
| Size | 16 in |
| Weight | 1.36 lb |
Manufacturing Details
The following information is subject to change without notice
| Country of Origin | Germany |
|---|---|
| Prop 65 Warning |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
|
| Shop USA | No |
Label Information
| Precautionary Statement | WARNING! Improper use of any power tool may cause serious or fatal injury. Read, understand, and follow carefully the operating and safety instructions in your instruction manual before using such products. |
|---|
