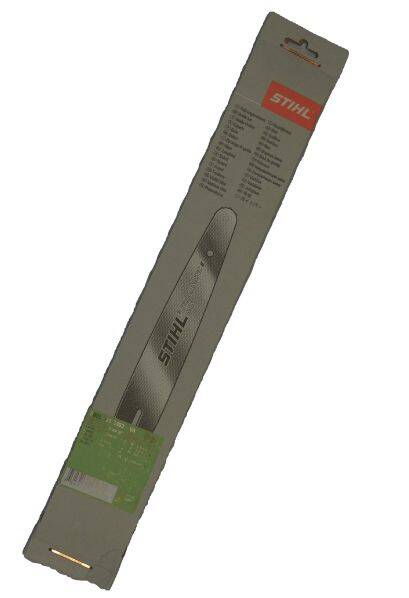

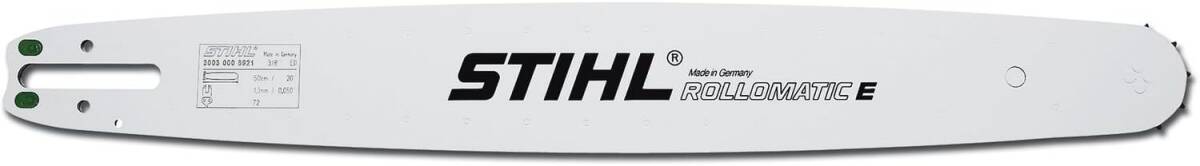

14-Inch Rollomatic® E Mini Chain Saw Guide Bar
- Mfg.#
- 3005 3409
- Sku#
- 3657855
- STIHL recommends using low-kickback, green-labeled chain and green-labeled reduced-kickback bars on all powerheads
* Estimated stock levels as of Thu, Mar 12, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description

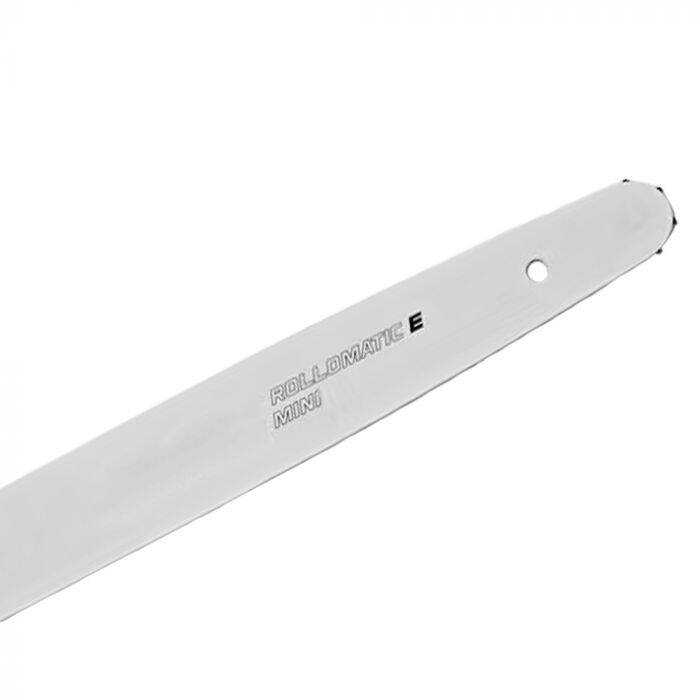

The STIHL ROLLOMATIC® E Mini is a general-grade laminated guide bar made of high-grade steel. Three metal plates are electrically welded together to provide great stability. Designed for use with 61PMM3 or 71PM3 saw chain, it increases cutting efficiency over PM1 chain by 13%. A sprocket is incorporated in the nose of the bar that carries the saw chain from the top to the bottom of the bar. This not only reduces wear, but also enables the bar nose to be made considerably narrower. This type of construction is an advantage where extensive use is made of the bar nose (i.e. limbing and boring). All STIHL ROLLOMATIC® bars are designed with a narrow nose help reduce kickback tendencies.
Specifications
General
| Application | Primarily intended for use on pole pruners and arborist applications |
|---|---|
| Applications | For use with chainsaws and pole pruners using the ¼ inch STIHL PICCO™ saw chain and with power up to 1.0 kW |
| Bar Length | 14 in |
| Color | Silver |
| Drive Links | 72 |
| Fits | STIHL HT70, HT100, HT130 Pole Pruner, MS150, MS170, MS180, MS190T Chainsaw |
| Gauge | 0.43 in (Narrow Kerf) |
| Guide Bar Length | 14 in |
| Material | Chrome Molybdenum Steel |
| Pack Qty | 1 |
| Pitch | 0.25 in |
| Series | Rollomatic® E Mini |
| Sprocket Type | Star-Shaped |
| Suitable for | Limbing and Boring |
| Suitable for Use With | Stihl 71 PMM3 72, 71PM372 chains |
| Type | Chain Saw Guide Bar |
| Usage | Pruning, firewood cutting, and storm cleanup |
Dimensions
| Length | 14 in |
|---|---|
| Size | 14 in |
| Weight | 0.85 lb |
Manufacturing Details
The following information is subject to change without notice
| Country of Origin | Germany |
|---|---|
| Prop 65 Warning |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
|
| Shop USA | No |
Label Information
| Precautionary Statement | WARNING! Improper use of any power tool may cause serious or fatal injury. Read, understand, and follow carefully the operating and safety instructions in your instruction manual before using such products. |
|---|
