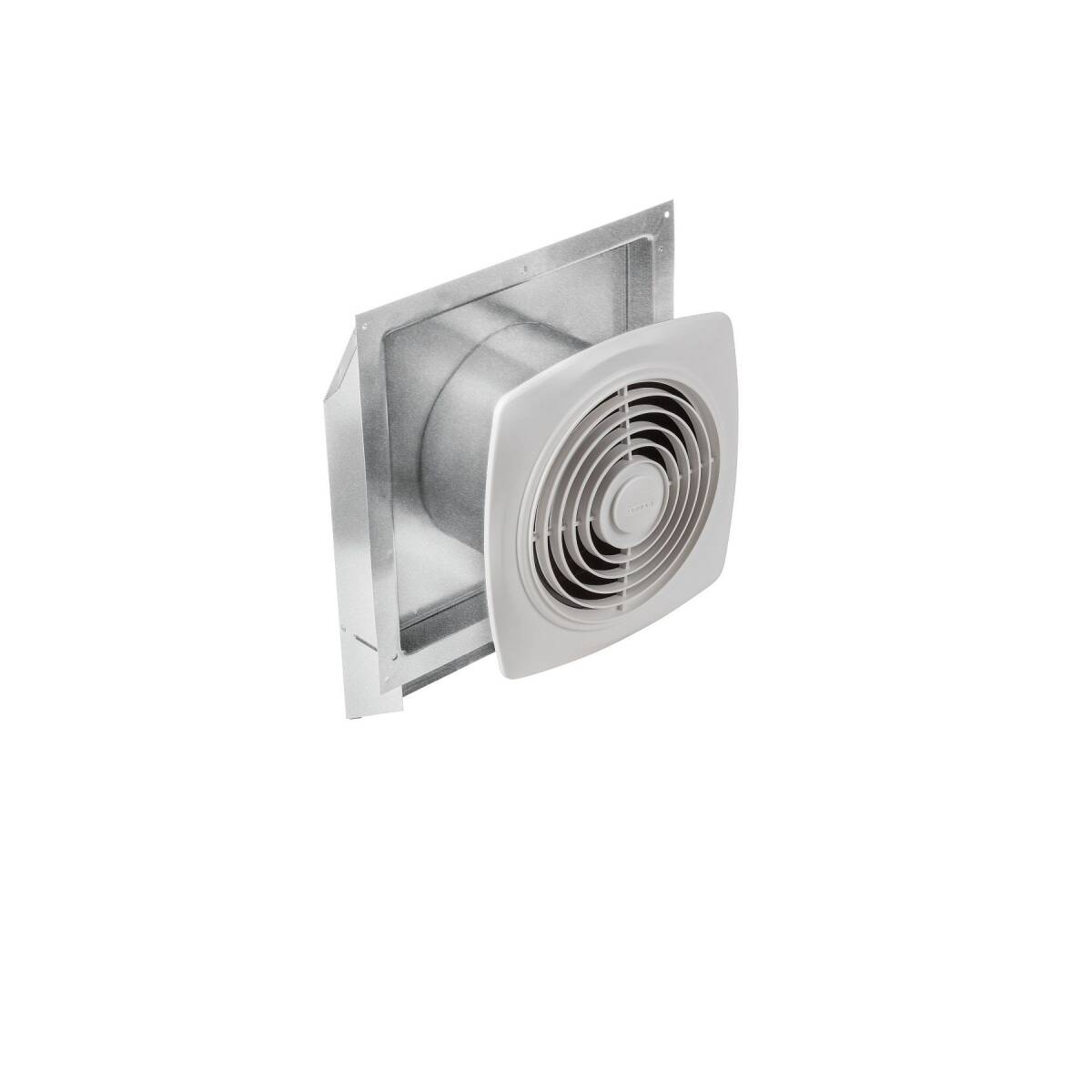

200-CFM Through-Wall Ventilation Fan
- Mfg.#
- 509
- Sku#
- 3345071
- 180 CFM 6.5 Sones

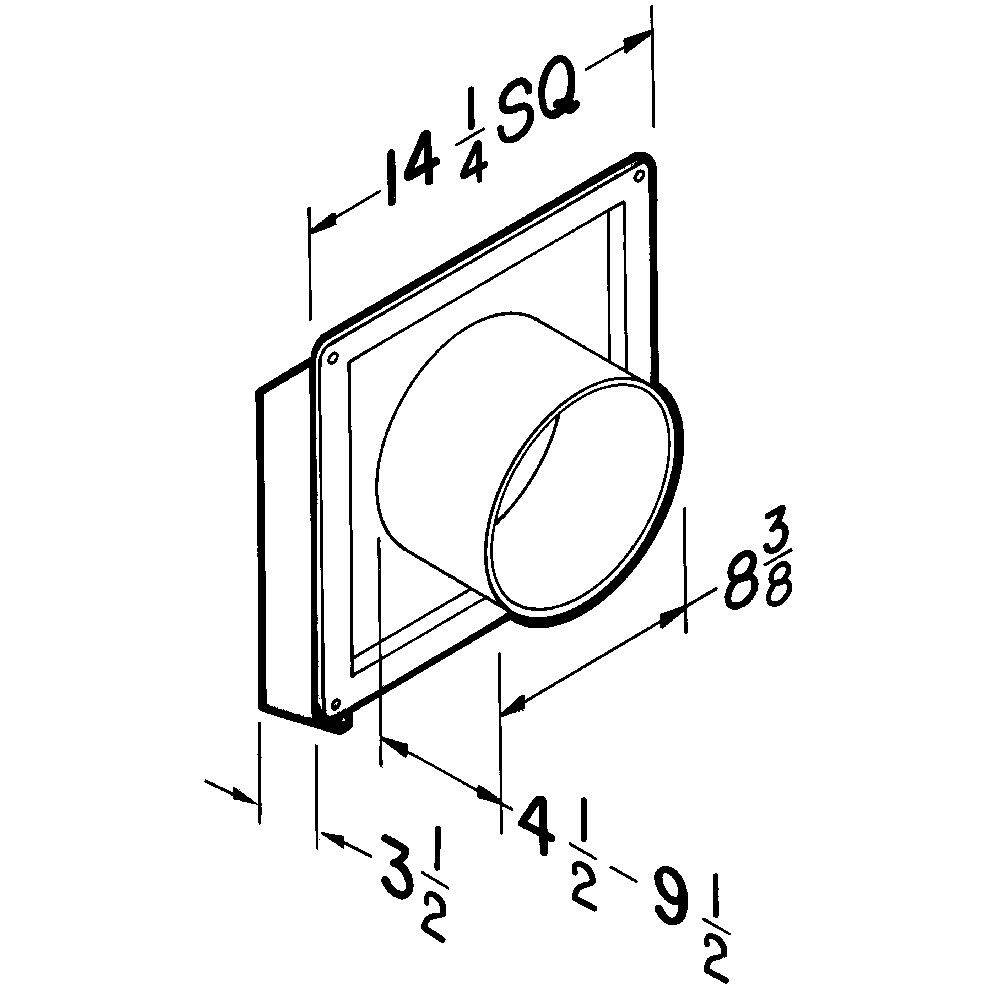

- 8-3/8 in diameter sleeve
- Specially designed polymeric fan blade
- Housing adjusts to fit walls from 4-1/2 in to 9-1/2 in thick
- Built-in damper minimizes backdrafts
* Estimated stock levels as of Sat, Apr 11, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
Say goodbye to unbearable heat and humidity in the garage, unwanted smells in the kitchen and odors in the laundry room, rec room or garage. The Broan® 200 CFM Through-Wall Ventilation Fan is the perfect solution for rooms up to 195 sq. ft, including one car garages, or use for spot ventilation near areas such as a work bench, garbage can, car, or lawn mower. The durable galvanized steel housing provides superior protection against the elements and wear and tear. It features a built-in exterior wall cap/vent which reduces install time, no duct work needed. Customize your fan with one of Broan-NuTone’s wall controls. For automatic operation, choose from a humidity or motion sensing control. To automatically turn off the fan after you leave the room or garage, pair the fan with a delay-off or countdown timer. (Wall controls sold separately.)
Specifications
General
| Amps | 1.8 |
|---|---|
| CFM | 200 |
| CFM Range | Extra-Large Room (150+ sq. ft.), 150+ CFM |
| Color | White |
| Duct Size | 8 in |
| Sones | 8.5 |
| Sound Level | Very High, 7+ sones |
| Type | Bathroom Exhaust Fan |
| Volts | 120 |
Manufacturing Details
The following information is subject to change without notice
| Manufacturer Warranty | 1 yr Limited |
|---|
Label Information
| Certification, Codes, Standards | HVI Certified; UL Listed |
|---|
PLEASE NOTE: Product information for this item was provided by a third-party source and has not been verified. Please use our feedback button to report any errors. Read our Terms of Use.
