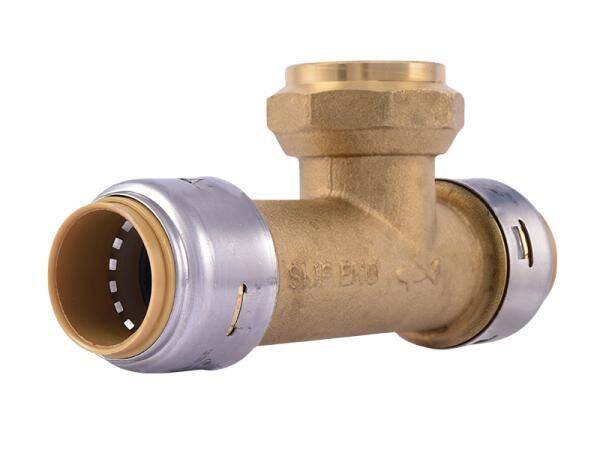

3/4-Inch Max Brass Push Female Center Slip Tee
- Mfg.#
- UR3486A
- Sku#
- 3217783
- Fastest way to connect PEX, copper, CPVC, PE-RT or HDPE SDR-9 pipe.*
- Half the insertion effort, double the burst pressure.**
- Can be installed on wet lines and pressure tested immediately.
- Stainless steel retainer adds strength and durability.
- High-performance DZR lead-free brass body.
* Estimated stock levels as of Sun, May 3, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
SharkBite Max™ female center slip tees are designed with a slip feature allowing up to two inches of pipe to be cut out of an exiting line. They are ideal for adding an expansion tank to an existing line. The slip end is only compatabie with copper or CPVC pipe. The non-slip end is compatible with PEX, copper, CPVC, PE-RT or HDPE SDR-9.
SharkBite push-to-connect fittings are the fastest when compared to other conventional plumbing methods.
Comparison relates to 1st generation SharkBite push-to-connect products.
Specifications
General
| Application | Residential and commercial potable water, recirculation, hydronic heating/cooling (up to 50% glycol concentration) and direct burial (wrapping required). |
|---|---|
| Connection | Push-to-connect; EPDM Rubber O-Ring. |
| Material | Lead-Free DZR Brass |
| Max Temperature | 200°F |
| PSI (Maximum) | 250 PSI |
| Type | Slip Tee |
Manufacturing Details
The following information is subject to change without notice
| Country of Origin | Country of Origin Australia |
|---|---|
| Manufacturer Warranty | 25-year warranty when properly installed on PEX, copper, CPVC and PE-RT. 5-year warranty when properly installed with HDPE SDR-9. |
Dimensions
| Nominal Size | 3/4-Inch |
|---|
Label Information
| Certification, Codes, Standards | ASSE 1061 - Tee, CSA B125.3 - Tee, NSF/ANSI 14 - Tee, NSF/ANSI/CAN 61 - Tee, NSF/ANSI/CAN 372 - Tee, ASTM E84, ASTM E84CAN/ULC S102.2, UL 263, ASTM E119, CAN/ULC S102 |
|---|
