- Some stock photographs may show options that are not included. Please check product description.

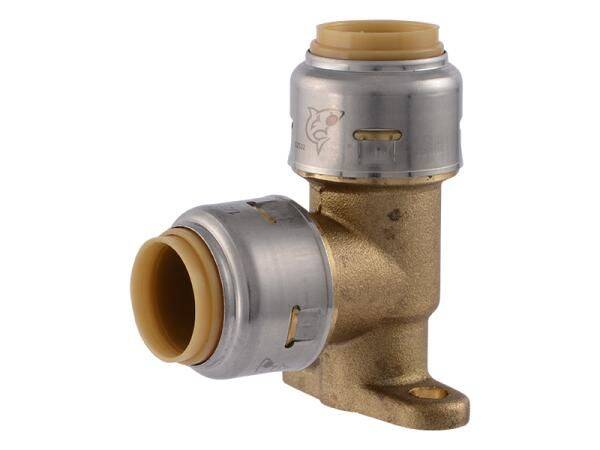

1/2-Inch Max Brass Push Drop-Ear Elbow
- Mfg.#
- UR249A
- Sku#
- 3217643
- Fastest way to connect PEX, copper, CPVC, PE-RT or HDPE SDR-9 pipe.
- Half the insertion effort, double the burst pressure.
- Can be installed on wet lines and pressure tested immediately.
- Stainless steel retainer adds strength and durability.
- High-performance DZR lead-free brass body.
* Estimated stock levels as of Wed, Apr 1, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
SharkBite Max™ drop-ear elbow is designed to make a 90-degree connection between PEX, copper, CPVC, PE-RT or HDPE SDR-9 and a MNPT threaded connection. Typically used for installing shower arms and tub spouts. Approved for underground and behind-the-wall applications with no access panels.
SharkBite push-to-connect fittings are the fastest when compared to other conventional plumbing methods.
Comparison relates to 1st generation SharkBite push-to-connect products.
Specifications
General
| Application | Residential and commercial potable water, recirculation, hydronic heating/cooling (up to 50% glycol concentration) and direct burial (wrapping required). |
|---|---|
| Connection | Push-to-connect; EPDM Rubber O-Ring. |
| Materials | Lead-Free DZR Brass |
| Max Temperature | 200°F |
| PSI (Maximum) | 250 PSI |
| Type | 90-Degree Elbow |
Manufacturing Details
The following information is subject to change without notice
| Country of Origin | Australia |
|---|---|
| Manufacturer Warranty | 25-year warranty when properly installed on PEX, copper, CPVC and PE-RT. 5-year warranty when properly installed with HDPE SDR-9. |
Dimensions
| Nominal Size | 1/2 inch |
|---|
Label Information
| Certification, Codes, Standards | ASSE 1061, CSA B125.3, NSF/ANSI 14, NSF/ANSI/CAN 61, NSF/ANSI/CAN 372, ASTM E84, CAN/ULC S102.2, UL 263, ASTM E119, CAN/ULC S102 |
|---|
Videos
Related Documents
Brochure (PDF)
Warranty (PDF)
Installation Guide (PDF)
