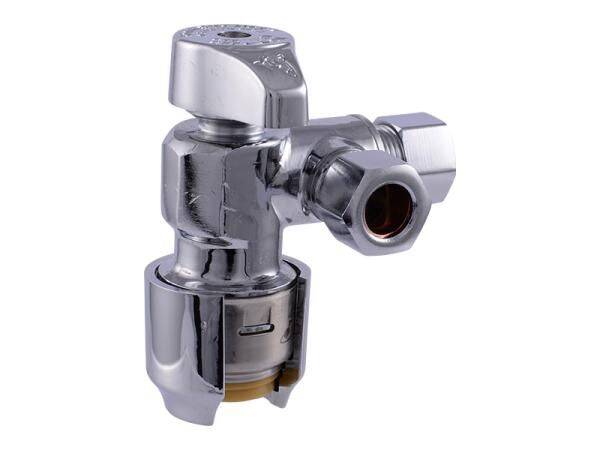

1/2 inch X 3/8 inch X 3/8 inch Max Brass Dual Outlet Angle Stop
- Mfg.#
- UR25558
- Sku#
- 3206901
- Sleek chrome finish for an attractive appearance.
- Quarter-turn full-port brass ball valve.
- Compatible with PEX, copper, CPVC and PE-RT SDR-9 HDPE pipe
- No special tools, crimping, glue or soldering is needed.
- Can be installed in wet lines.
* Estimated stock levels as of Sat, Apr 11, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
SharkBite Max™ dual outlet angle stops are typically used on stub-outs coming out of the wall and used to control and shut-off water flow to fixtures and appliances for maintenance and repair.
SharkBite push-to-connect fittings are the fastest when compared to other conventional plumbing methods.
Comparison relates to 1st generation SharkBite push-to-connect products.
Specifications
General
| Application | Residential and commercial potable water, recirculation, hydronic heating/cooling (up to 50% glycol concentration) and direct burial (wrapping required). |
|---|---|
| Connection | Push-to-connect; EPDM Rubber O-Ring. |
| Material | Lead-Free DZR Brass |
| Max Temperature | 160°F |
| PSI (Maximum) | 125 PSI |
| Type | Stop Valve |
Manufacturing Details
The following information is subject to change without notice
| Country of Origin | China |
|---|---|
| Shop USA | No |
Dimensions
| Nominal Size | 1/2 inch X 3/8 inch X 3/8 inch |
|---|---|
| Size | 1/2 inch X 3/8 inch X 3/8 inch |
Label Information
| Certification, Codes, Standards | ASME 112.18.1/CSA B125.1, NSF/ANS/CAN 61: Q? 0.5, NSF/ANSI/CAN 372 |
|---|
