- Some stock photographs may show options that are not included. Please check product description.

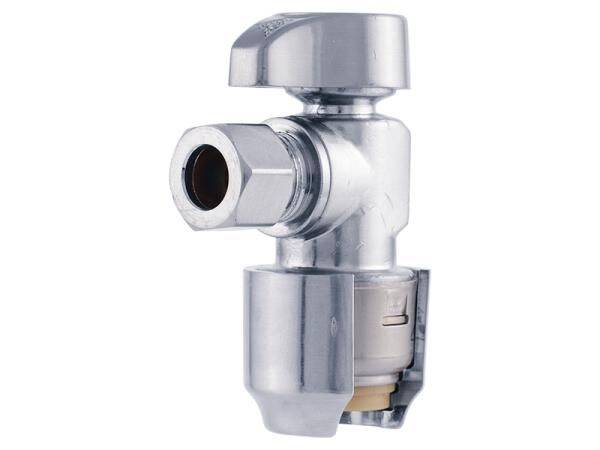

3/8-Inch Max Brass Push Angle Stop with a 1/2-Inch Compression
- Mfg.#
- UR23036
- Sku#
- 3206778
- Fastest way to connect PEX, copper, CPVC, PE-RT or HDPE SDR-9 pipe.
- Can be installed on wet lines and pressure tested immediately.
- Stainless steel retainer adds strength and durability.
- High-performance DZR lead-free brass body.
- No special tools, crimping, soldering or glue required.
* Estimated stock levels as of Sat, Apr 11, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
SharkBite Max™ Angle stops are used on stub-outs coming out of the wall and are used to control and shut off water flow to fixtures and appliances for maintenance and repair. Innovative design with a 1/2 in. push-to-connect inlet makes for quick installation, and quarter-turn full-port brass ball valves make for easy operation. Ideal for working in tight spaces. Faster install times and ease of use reduce installation errors.
Comparison relates to 1st generation SharkBite push-to-connect products.
SharkBite push-to-connect fittings are the fastest when compared to other conventional plumbing methods.
Specifications
General
| Materials | Body: Lead- Free DZR Brass. O-Ring: EPDM. Steel Retainer: 304 Stainless Steel. Grab Ring: 316 Stainless Steel |
|---|---|
| Max Temperature | 160°F (71°C) |
| PSI (Maximum) | 125 PSI |
| Type | Angle Valve |
Manufacturing Details
The following information is subject to change without notice
| Country of Origin | China |
|---|
Dimensions
| Size | 3/8 inch |
|---|
Label Information
| Certification, Codes, Standards | ASME A112.18.1/CSA B125.1, NSF/ANSI/CAN 61: Q ?0.5, NSF/ANSI/CAN 372 |
|---|
