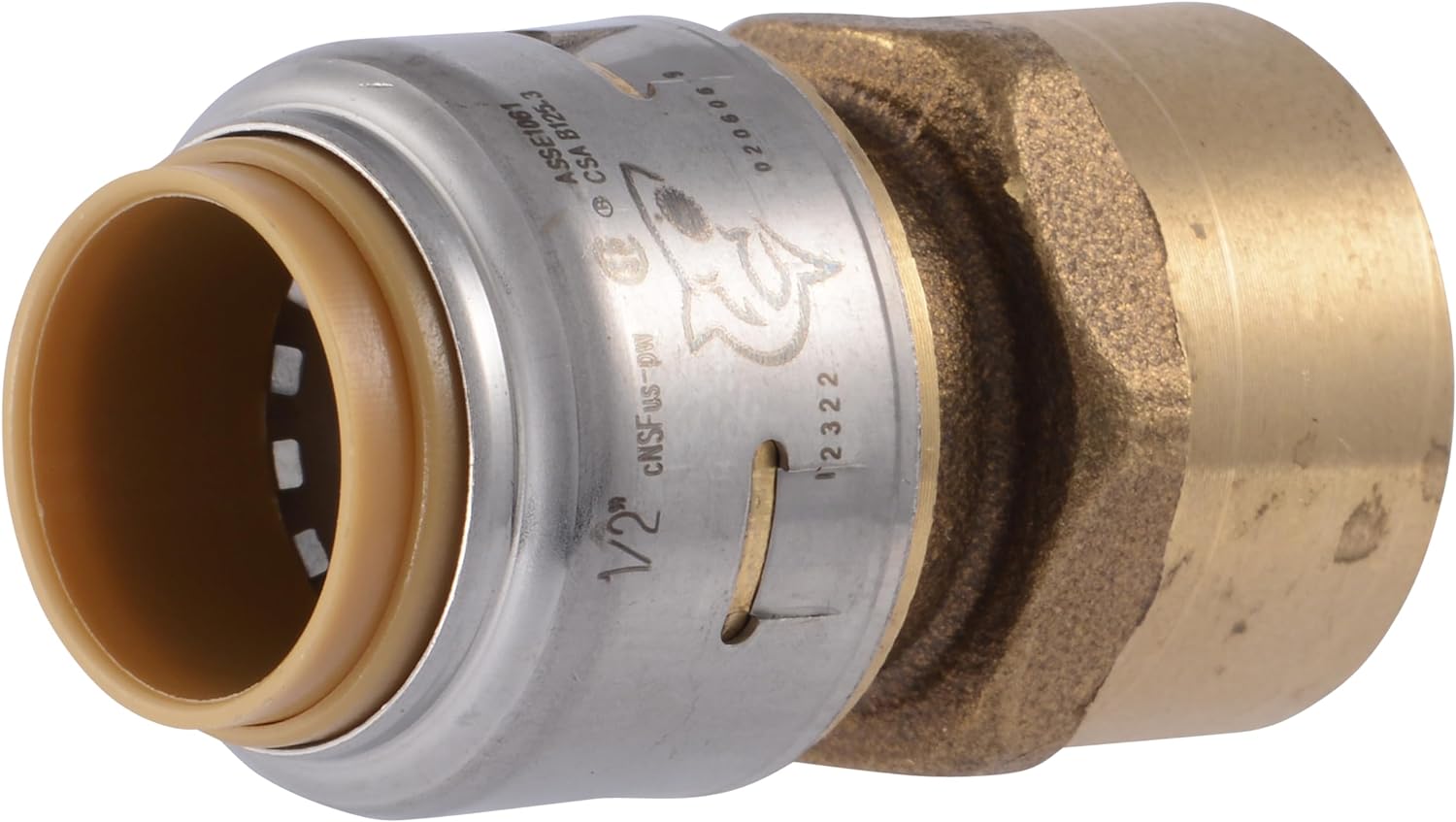

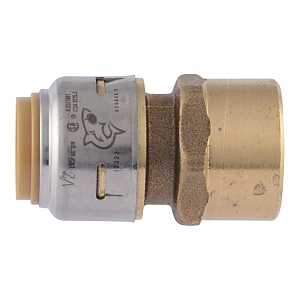

250 PSI, 1/2-Inch, Brass, Female Adapter Fitting
- Mfg.#
- UR072A
- Sku#
- 3104999
- Fastest way to connect PEX, copper, CPVC, PE-RT or HDPE SDR-9 pipewhen compared to other conventional plumbing methods (when compared to other conventional plumbing methods)

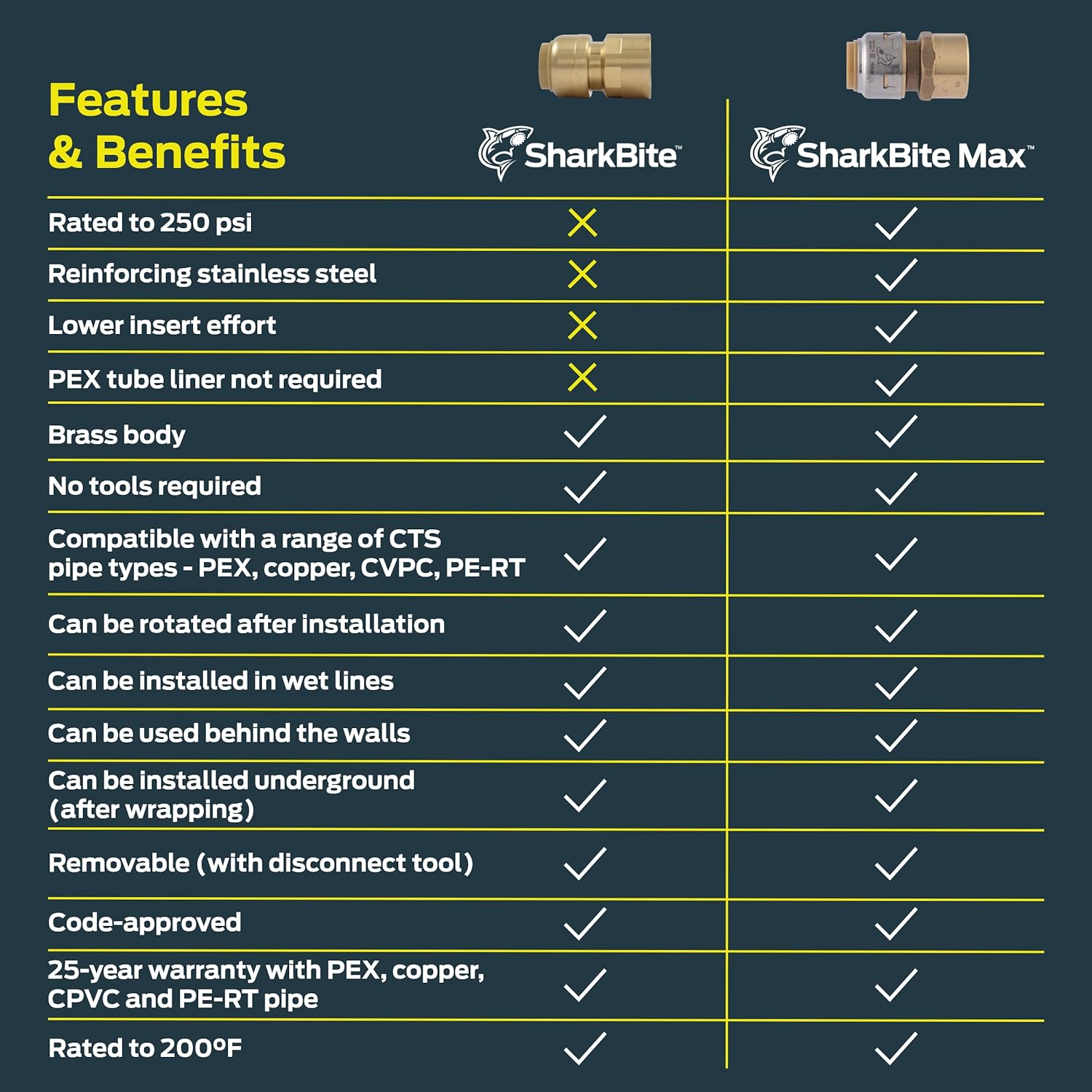

- Half the insertion force compared to SharkBite 1st Generation fittings (*Comparison relates to 1st generation SharkBite push-to-connect products)
- Can be installed on wet lines and pressure tested immediately

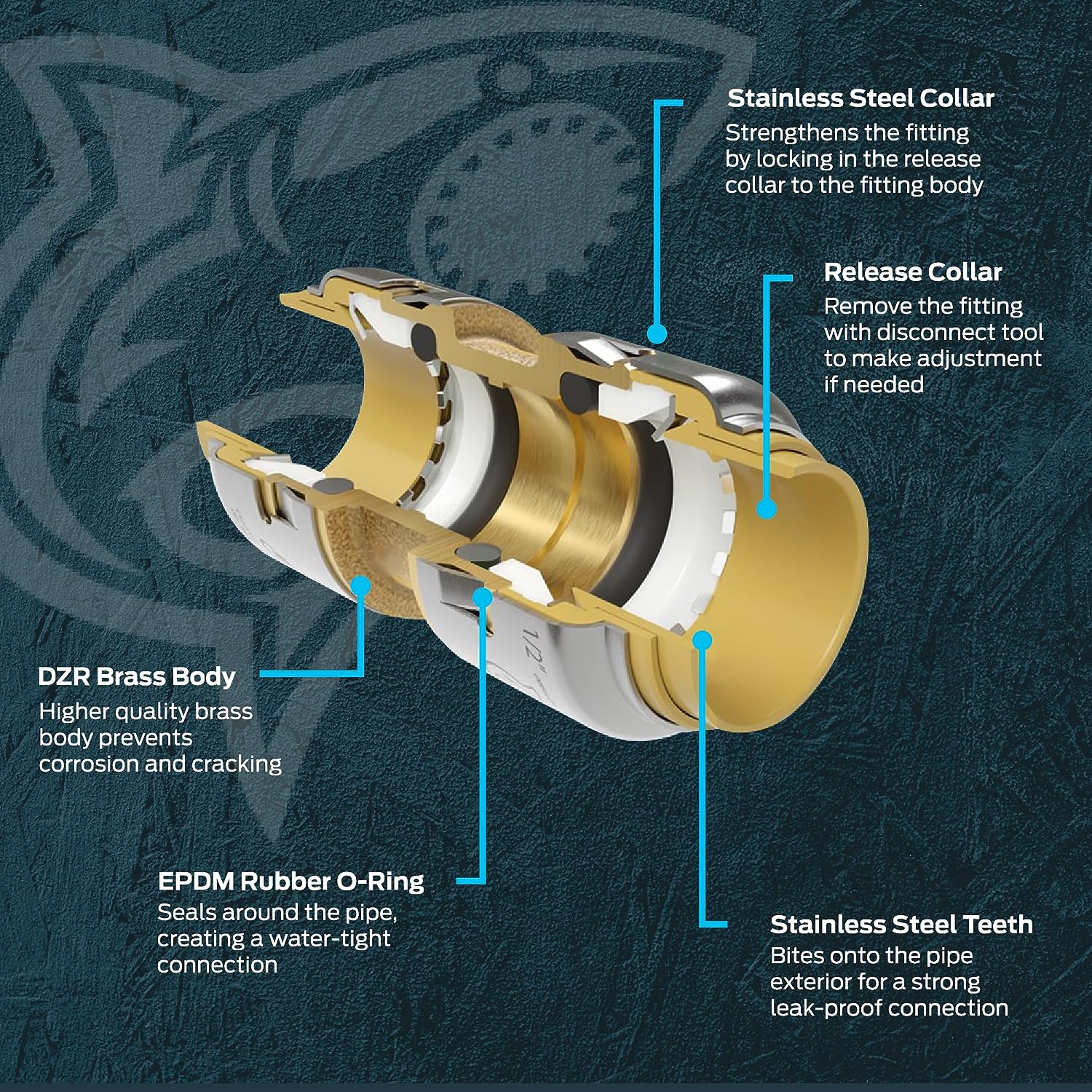

- Stainless steel retainer adds strength and durability
- Stainless steel retainer adds strength and durability
* Estimated stock levels as of Sun, Apr 12, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description

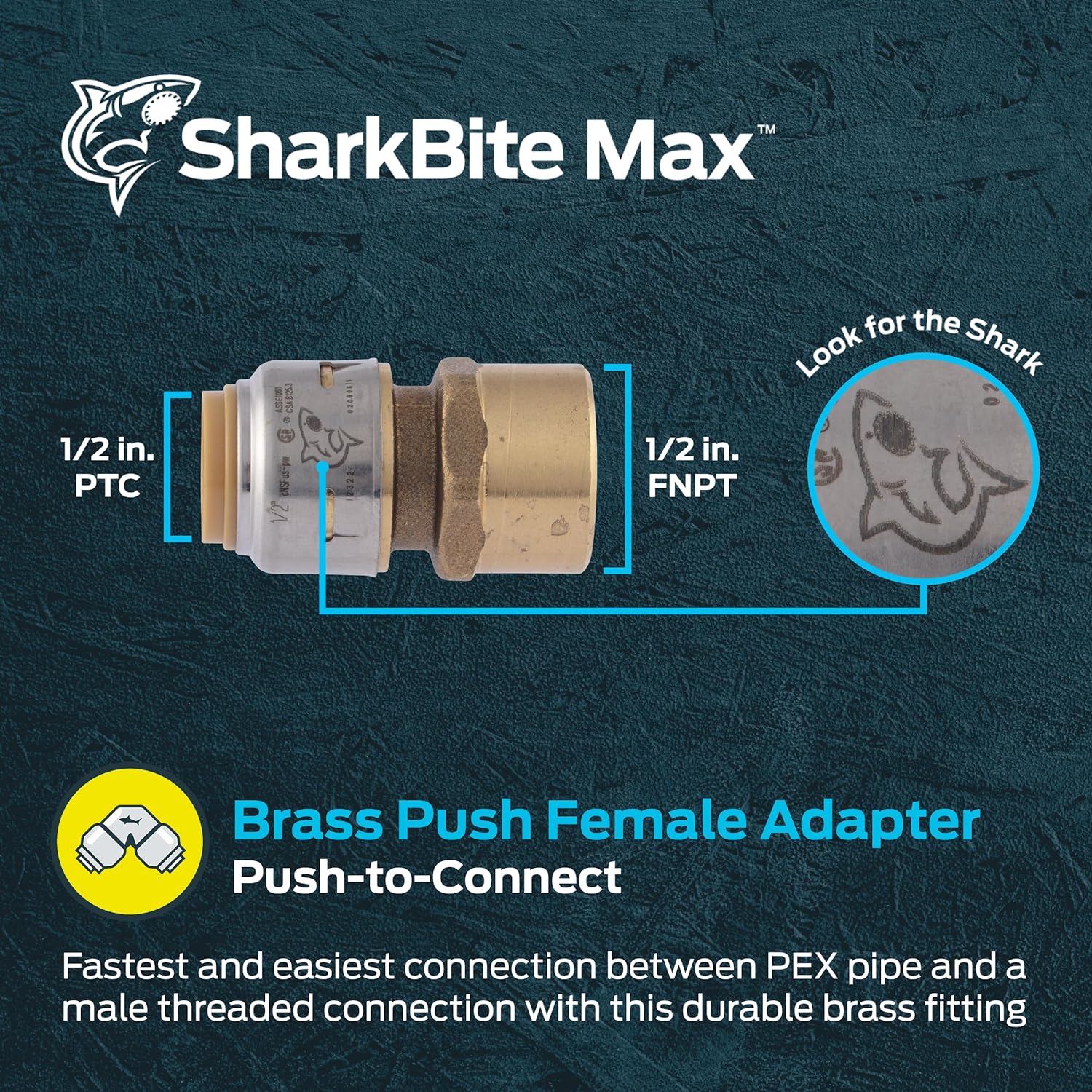

SharkBite Max female adapters have an innovative push-to-connect design that enables quick and easy transitions between CTS pipe to an MNPT threaded connections. Ideal for working in tight spaces and easier to use, Max female adapters make installs more efficient.
Regulate water flow from one pipe to the next pipe with SharkBite’s durable brass push-to-connect adapters. Our push-to-connect design requires no special installation tools and lowers safety risks as you make connections.
Specifications
General
| Application | Residential and commercial potable water, recirculation, hydronic heating/cooling (up to 50% glycol concentration) and direct burial |
|---|---|
| Color | Brass |
| Color Family | Metallic |
| Connection | FNPT |
| Finish | Brass |
| Material | Brass,Copper,Cpvc,Pex |
| Pack Qty | 1 |
| Pressure Rating | 250 psi |
| Suitable for | PEX Copper CPVC PE-RT or HDPE SDR-9 Pipe |
| Temperature Rating | 200-degree F |
| Thread Size | 1/2 in |
| Thread Type | NPT |
| Type | Adapter |
Dimensions
| Length | 1.8 in |
|---|---|
| Nominal Size | 1/2 in |
| Weight | 1.76 oz |
| Width | 1.1 in |
Manufacturing Details
The following information is subject to change without notice
| Country of Origin | USA |
|---|---|
| Manufacturer Warranty | 25-year warranty when properly installed on PEX, copper, CPVC and PE-RT/ 5-year warranty when properly installed with HDPE SDR-9. |
| Prop 65 Warning |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
|
| Shop USA | Yes |
Label Information

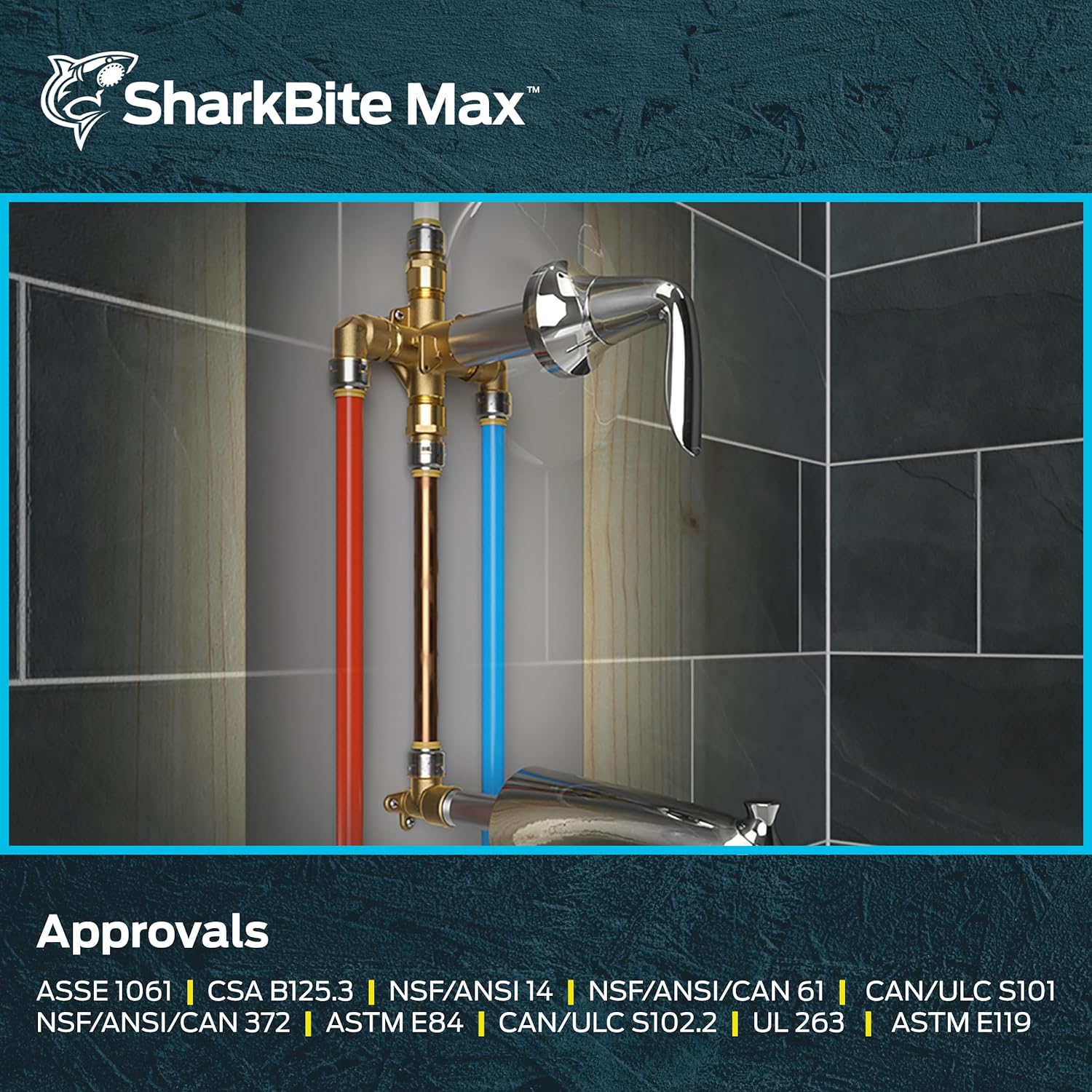

| Certification, Codes, Standards | ASSE 1061, CSA B125.3, NSF/ANSI 14, NSF/ANSI/CAN 61, NSF/ANSI/CAN 372, ASTM E84, CAN/ULC S102.2, UL 263, ASTM E119, CAN/ULC S101 |
|---|
