Milescraft
Euro Hinge Jig Concealed Hinge Jig For Cabinet Door Installation
- Mfg.#
- 1342
- Sku#
- 3068988

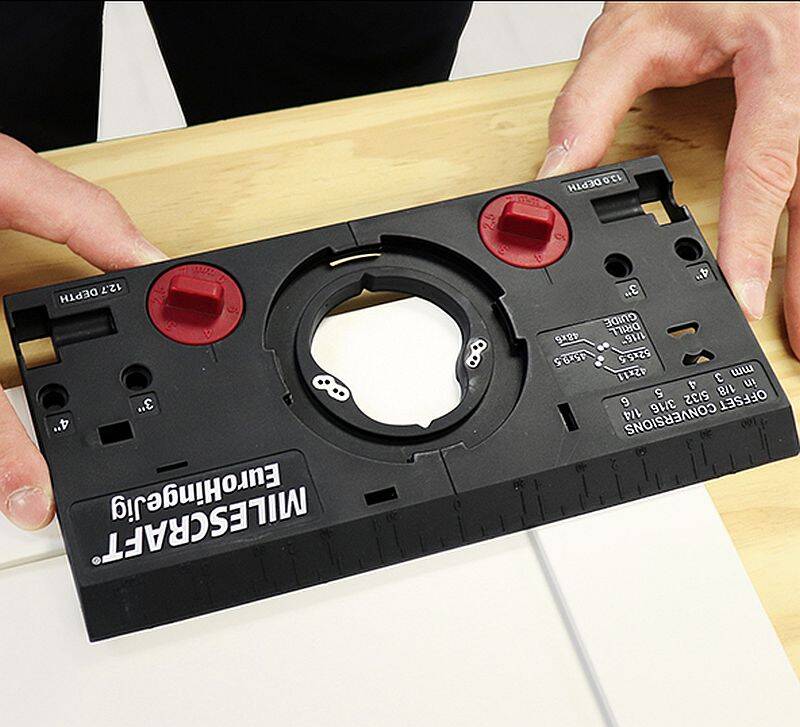

- Two edge alignment knobs position the cup hole from the edge of the door, while the edge locator pin sets the distance from the top/bottom

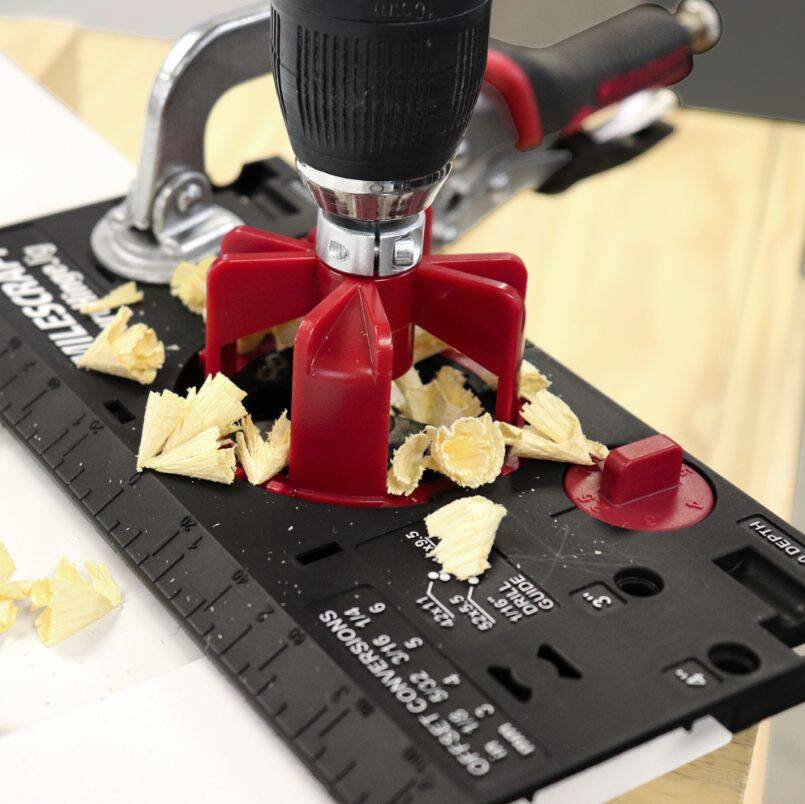

- The drill guide with metal bushing locks into the jig and creates a perfectly straight hinge cup hole
- Guide bushings built into the body of the jig let you pre-drill pilot holes in four common locations, making sure hinges are straight and the door closes true
- Easily set your cup hole depth on the included 35mm high-speed steel bit using the built-in depth setting fixtures
* Estimated stock levels as of Sat, Mar 14, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
The Milescraft EuroHingeJig™ takes the guesswork out of installing European-style concealed hinges. The self-aligning jig works with frameless and face frame cabinets and has settings for all of the most popular hinge styles and cup locations. It even has a feature to help position and mount your door to the cabinet.
Specifications
General
| Bit Type | 35mm EuroHinge Boring Bit |
|---|---|
| Drill Depth | 12.7mm, 13mm |
| Drill Stop Size | 3/8 in Split |
| Edge Profile | 2.5mm, 3mm, 4mm, 5mm, 6mm, 7mm |

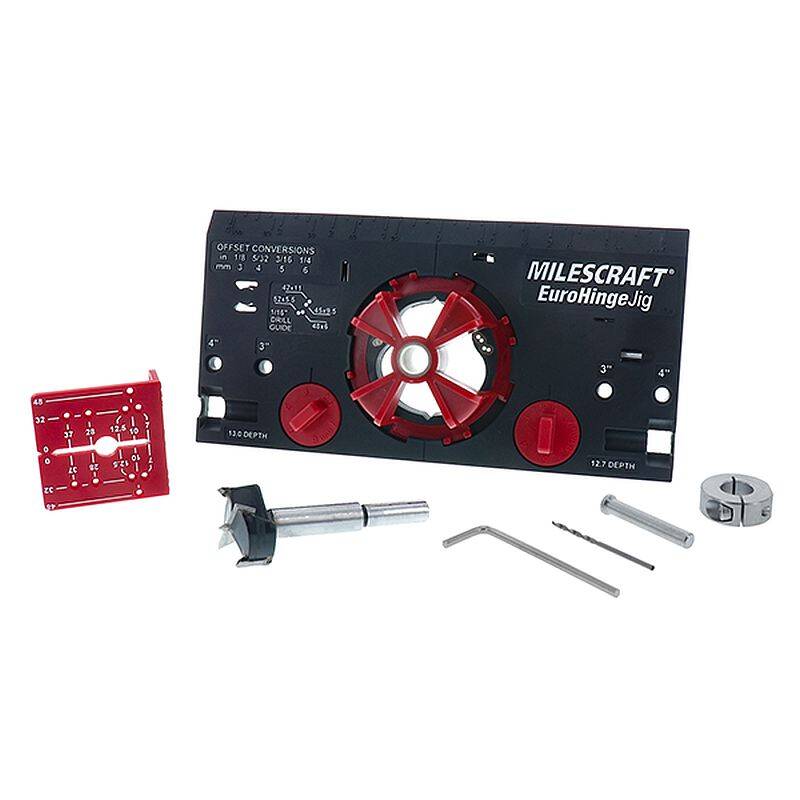

| Includes | Hinge Marking Guide, 1/16” Pilot bit , 3mm Allen Wrench |
| Offset | Locator Pin 3, 4 in |
| Shank | 3/8 in Round |
| Type | Hinge Template |
