- Some stock photographs may show options that are not included. Please check product description.
9-Inch, Luxor, White, Base Cabinet
- Mfg.#
- L10-B9
- Sku#
- 3030624
- 1/2 inch reveal
- All plywood box
- Dovetail drawer box
- Adjustable soft close hinges and glides
- Light Maple interior
* Estimated stock levels as of Fri, Apr 10, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
White, Single Door Base Cabinet with MDF wood face frame and door
Perfect for either traditional or contemporary décor, Luxor cabinets feature a shaker style and partial overlay, providing the charm and elegance you desire.

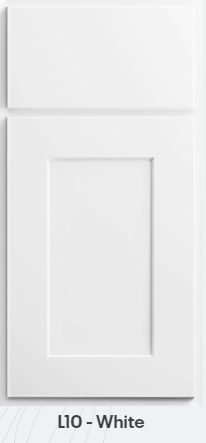

Door: A ½ in reveal, 2½ in wide shaker style MDF door with a flat center panel, Mortise and Tenon construction, slab drawer front.
Back: Made of ½ in plywood. Rabbeted and stapled into cabinet sides, screwed into top and bottom.
End Panels: Top and bottom ½ in plywood substrate, with light maple woodgrain laminate interior. Matching exterior.
Frame: ¾ in thick Solid Wood, 1½ in wide, kiln-dried solid hardwood. Assembled with glue and nails, under clamp pressure, which ensures squareness.
Hinges: Heavy duty steel concealed hinge, adjustable with soft-close mechanism.
Shelves: ¾ in thick, plywood; fully adjustable.
Toe Kick: 4½ in toe kick with 2½ in inset on all standard base and vanity cabinets.
Specifications
General
| Collection | Luxor |
|---|---|
| Color | White |
| Door Style | Shaker, Flat Center Panel |
| Finish | White |
| Material | Plywood |
| Number of Doors | 1 |
| Number of Shelves | 1 |
| Overlay | Standard, 1/2 in reveal |
| Type | Base Cabinet |
| Wood Species | MDF |
Dimensions
| Depth | 24 in |
|---|---|

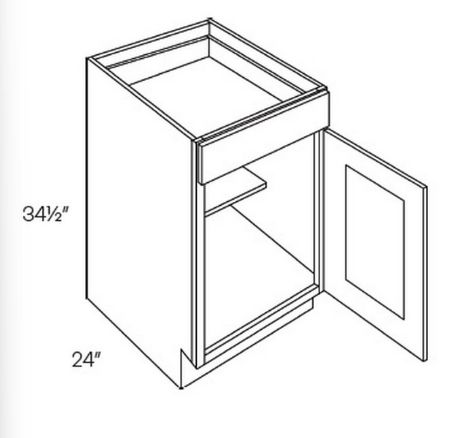

| Dimensions (LxWxH) | 9 in W X 34.5 in H X 24 in D |
| Height | 34-1/2 in |
| Size | 9 in |
| Width | 9 in |
Manufacturing Details
The following information is subject to change without notice
| Country of Origin | USA |
|---|---|
| Manufacturer Warranty | 5 Year Limited |
| Prop 65 Warning |
WARNING: This product can expose you to chemicals including Wood Dust, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
|
| Shop USA | Yes |
Related Documents
Brochure (PDF)
Msds (PDF)
