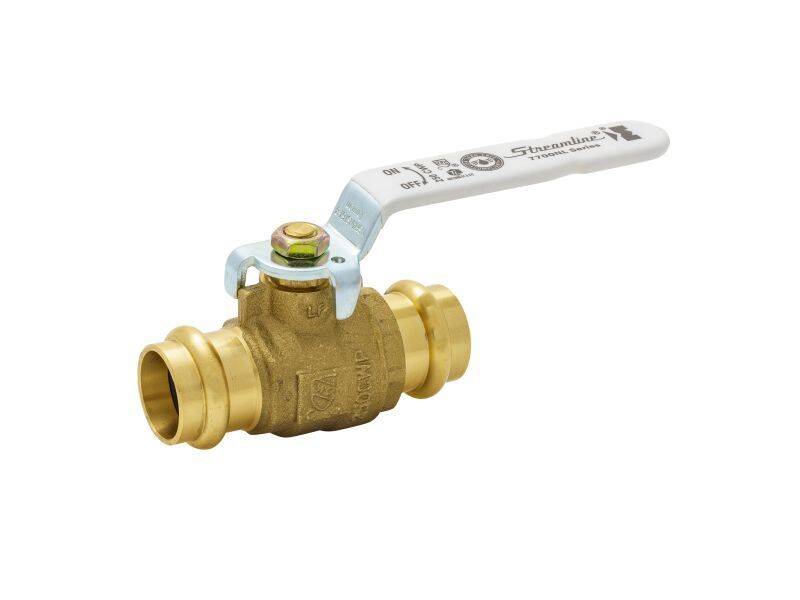

3/4-Inch Brass Press-Fit Ball Valve
- Mfg.#
- 107-744PV
- Sku#
- 2934842
- Full port for maximum flow rate
- Brass construction resists corrosion and supports longevity and durability
- Packing nut and o-ring supports easy fixing of any leaks at the stem
- Lever handle allows for quick on/off operations
- Vinyl coating on handle displays standards & certifications
* Estimated stock levels as of Sat, Mar 14, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
The Series 7690PV Ball Valve is our lighter ball valve line offering for ligt commercial and residental applications. Constructed of forged brass, this valve is designed to work with oil, gas and wate operations up to 600 PSI. This valve is deigned with a full port allowing for maximum flow rate and features a lever handle allowing for easy on/off operation. The packing gland feature allows for tightening the internal components when the stem leaks, ensuring a longer valve operational life. This valve features the latest in Press Fitting engineering, allowing for flameless, water-tight connections.
Specifications
General
| Approx Product Weight (lb) | 0.7959 lbs |
|---|---|
| Inlet Connection | PRS |
| Inlet Diameter | 3/4 in |
| Material | Brass |
| Maxiumum Working Pressure | 250 PSI |
| Outlet Connection Type | PRS |
| Outlet Diameter 1 | 3/4 in |
| Product Height | 2.82 in |
| Product Length | PRS |
| Product Width | 2.82 in |
| Series | ProLine Series |
| Temperature Range | 33ºF - 250ºF |
| Type | Ball Valve |
| Working Pressure | 72 PSI |
Dimensions
| Size | 3/4 in |
|---|
Manufacturing Details
The following information is subject to change without notice
| Manufacturer Warranty | 1-year limited warranty |
|---|---|
| Prop 65 Warning |
WARNING: This product can expose you to chemicals including Titanium dioxide, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
|
Label Information
| Certification, Codes, Standards | FM 1140,IAPMO/ANSI Z1157,NSF/ANSI 61 |
|---|
