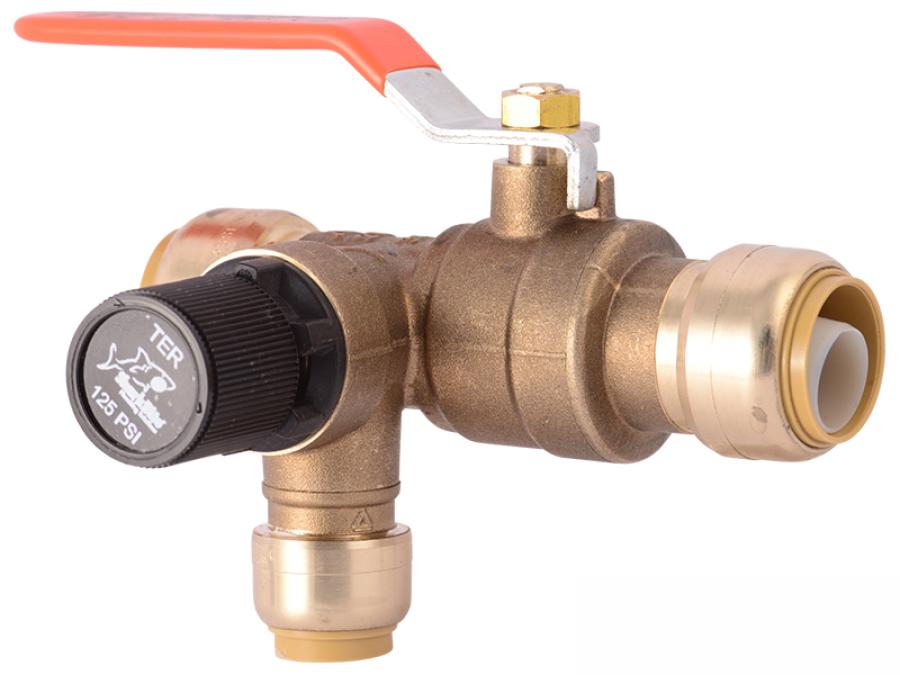

3/4-Inch Thermal Expansion Relief Ball Valve, Push To Connect
- Mfg.#
- 25704LF
- Sku#
- 2813467
- Compatible with PEX, copper, CPVC, PE-RT and SDR-9 HDPE pipe.
- Can be installed in wet lines.
- Can be rotated for easier installation.
- No special tools, crimping, glue or soldering is needed.
- Ideal for working in tight spaces.
* Estimated stock levels as of Fri, Apr 10, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
SharkBite®
SharkBite's Thermal Expansion Relief Valve eliminates the need for an expansion tank, shut-off valve and fitting. Features a pressure-only safety relief valve designed to protect hot water supply systems where high pressure conditions are likely to occur as a result of thermal expansion.
Specifications
General
| Application | Prevents excessive pressure building up in a closed loop plumbing system |
|---|---|
| Body Material | Lead Free DZR Brass |
| Color | Brass |
| Color Family | Gold |
| Connection | Push to Connect |
| PSI (Maximum) | 200 |
| Pressure Rating | 125 - 200 psi |
| Suitable for | Cold or hot (to 180°F) water service |
| Temperature Rating | 200-Degree F |
| Type | Thermal Expansion Relief Valve |
| Usage | Electric Tank, Gas Tank |
Dimensions
| Height | 3.44 in |
|---|---|
| Length | 8.03 n |
| Size | 3/4 in. x 3/4 in. x 1/2 in. Outlet |
| Weight | 1.46 lb |
| Width | 6.06 in |
Manufacturing Details
The following information is subject to change without notice
| Country of Origin | US |
|---|---|
| Manufacturer Warranty | 5-year |
| Prop 65 Warning |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
|
| Shop USA | Yes |
Label Information
| Certification, Codes, Standards | IAPMO/ANSI Z1157; CSA B125.3; NSF/ANSI/CAN 61; NSF/ANSI 372 |
|---|
