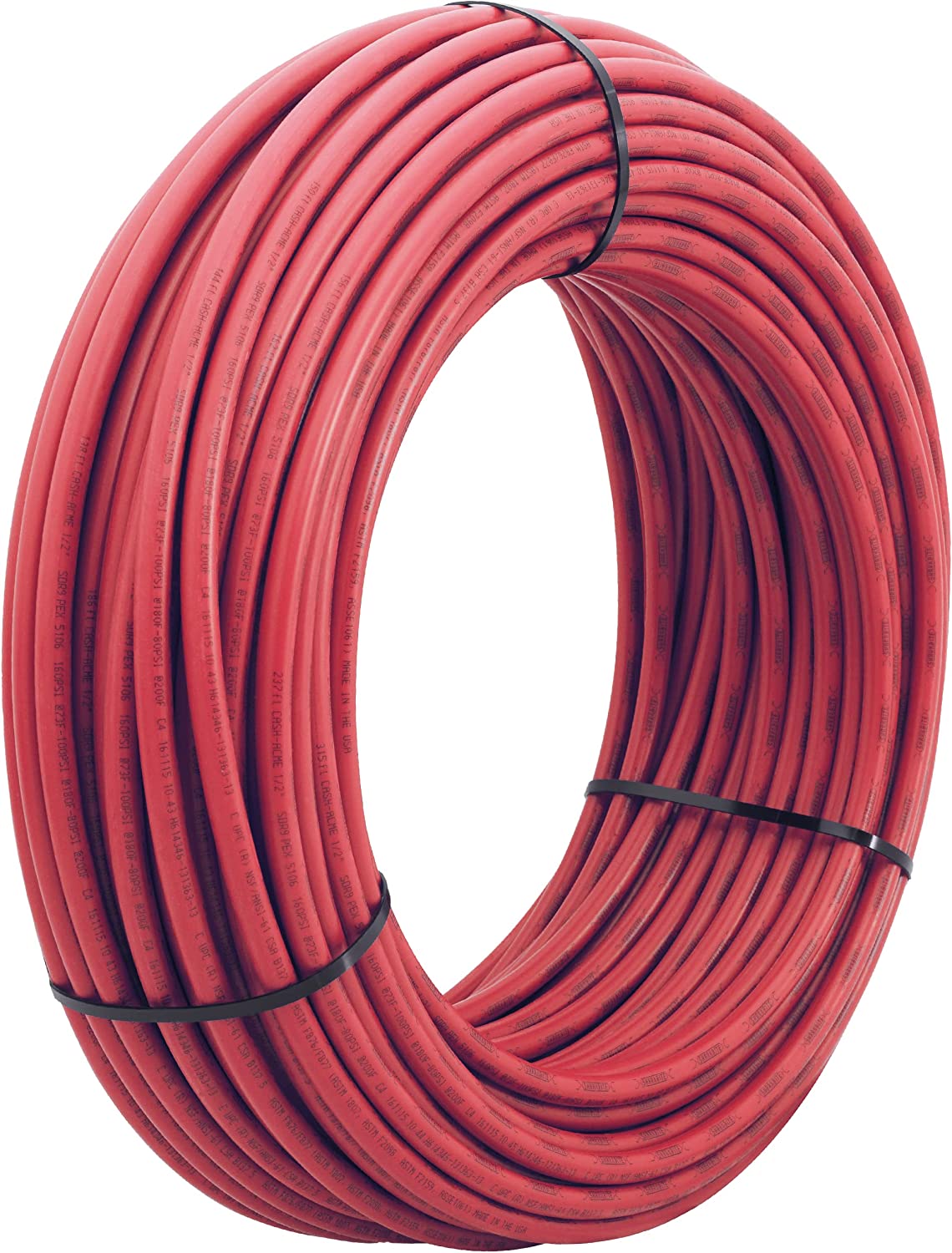

3/4-Inch X 300-Foot Red PEX Pipe
- Mfg.#
- U870R300
- Sku#
- 2804896
- PEX-B offers the highest-rated chlorine resistance and six-month UV resistance.
- Approved for water service lines and burial applications including being buried under concrete.
- Approved for use with SharkBite EvoPEX, SharkBite Universal push-to-connect (ASSE 1061), plastic barb (ASTM F2159) and brass barb (ASTM F1807) fittings.
- Certified to meet ASTM F2023 oxidative-resistance requirements for continuous hot water recirculation.
- Minimum working temperature 33-degree F @ 160 psi. Maximum working temperature 200-degree F @ 80 psi.
* Estimated stock levels as of Wed, Apr 1, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
Cross-linked polyethylene pipe approved for use in residential and commercial installations. Has the flexibility to bend around corners, reducing the number of connection points needed.

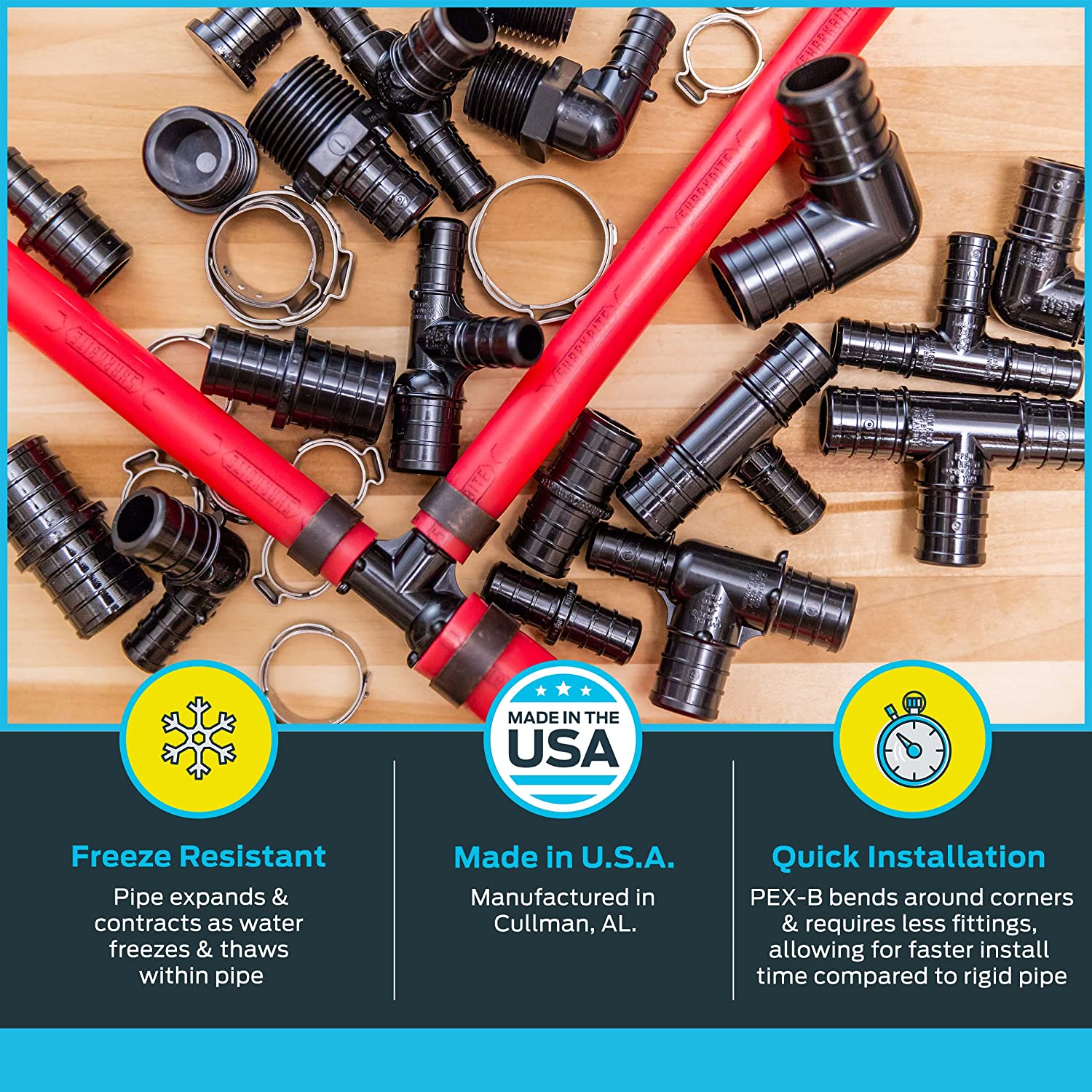

Faster installation compared to rigid pipe. Flexibility to bend pipe around corners. Available in coils up to 1,000 ft. in length, allowing longer runs and fewer connections -- reducing cost, time and potential leak points. Freeze-resistant pipe can expand slightly if frozen and contract when thawed. Ideal for hot and cold potable water distribution, fire protection and municipal water service lines.
Specifications
General
| Application | Potable water, residential fire suppression, radiant heating, direct burial, embedment in concrete, snow & ice melting, geothermal ground-loops, turf conditioning, municipal water service lines & plenum application |
|---|---|
| Color | Red |
| Connection Type | Push-To-Connect |
| For Use With | Hot and cold potable water lines |

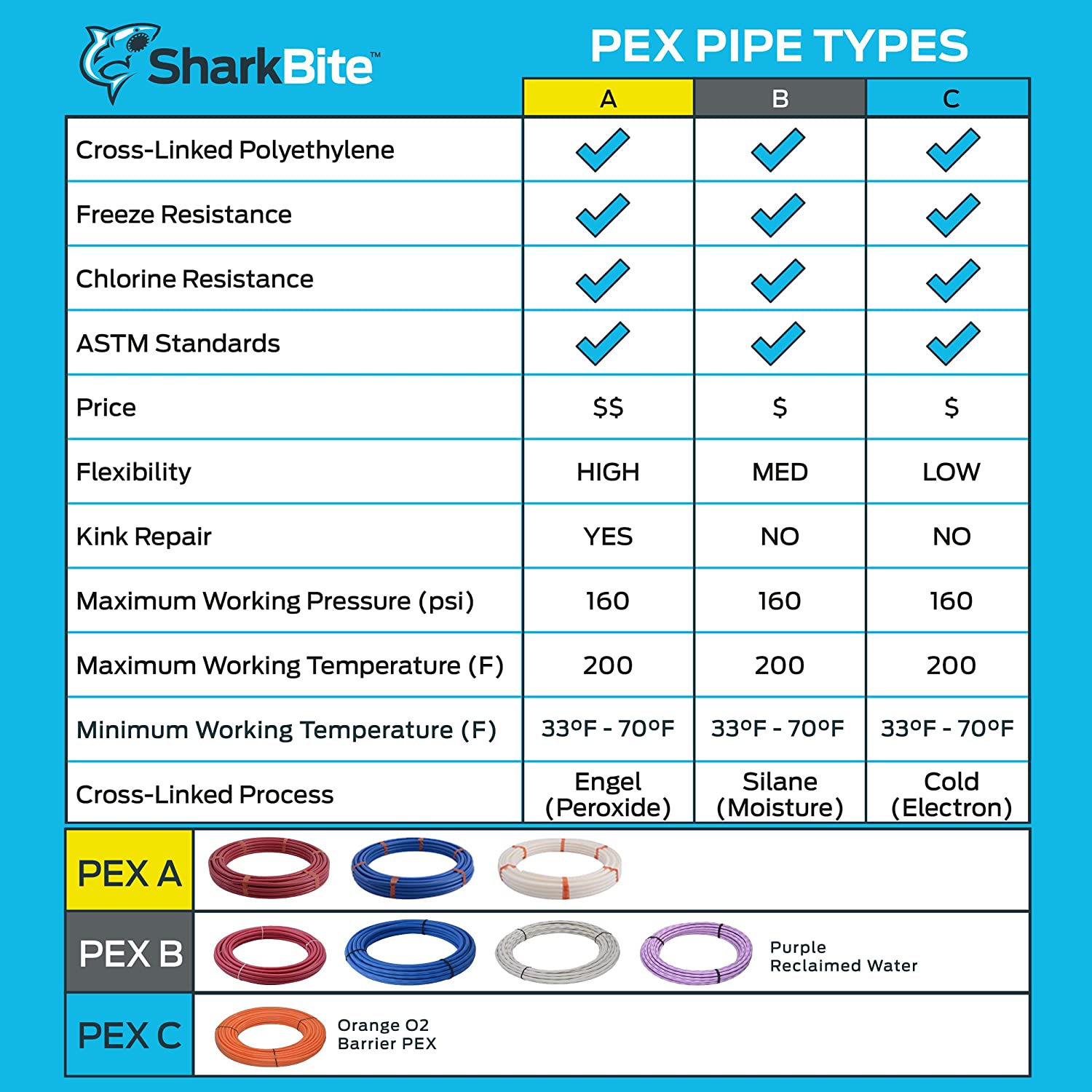

| Material | Cross-Linked Polyethylene / PEX-b / Silane Method |
| Maximum GPM | 8.8 |
| Maximum Working Temperature | 200-Degree F |
| Media | Potable Water |
| Minimum Working Temperature | 32-Degree F |
| PSI (Maximum) | 160 |
| Pack Qty | 1 |
| Pressure Rating | 160 psi @ 73.4-degree F (23-degree C); 100 psi @ 180-degree F (80-degree C); 80 psi @ 200-degree F (93-degree C) |
| Suitable for | Residential Fire Suppression |
| Type | PEX-B Pipe |
| Wall Thickness | 0.097 + 0.010 in |
Dimensions
| Diameter | 3/4 in |
|---|---|
| Length | 300 ft |
| Outside Diameter | 0.875 ± 0.004 in |
| Size | 3/4-in X 300-ft |
| Weight | 0.103 lb per ft |
Manufacturing Details
The following information is subject to change without notice
| Country of Origin | USA |
|---|---|
| Manufacturer Warranty | https://www.sharkbite.com/sites/default/files/files/RWC-warranty-2022.pdf |
| Shop USA | Yes |
Label Information
| Certification, Codes, Standards | NSF/ANSI/CAN 61; NSF/ANSI 14 - PEX 5306; ASTM F876; ASTM F877; CSA B137.5; ASTM E84; CAN/ULC S102.2; ASTM E119; CAN/ULC S101; AWWA C904 |
|---|
