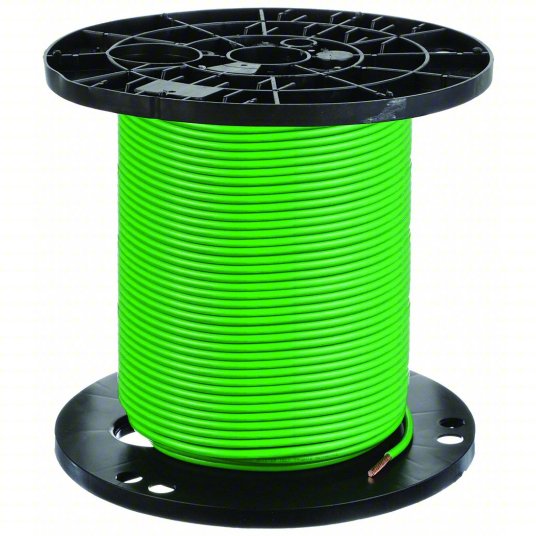

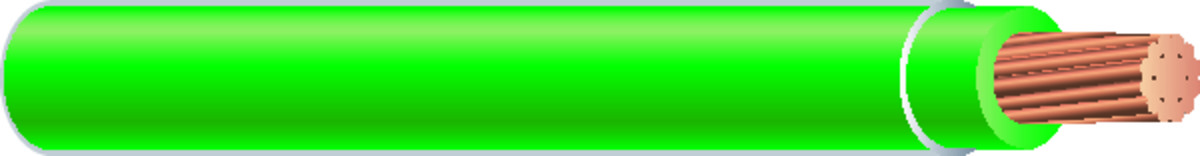

SIMpull THHN, 4AWG, 19-Strand, Green Jacket, Copper Wire Conductor, Per Foot
- Mfg.#
- 25172801
- Sku#
- 2802015
- Thermoplastic Insulation/Nylon Sheath
- Copper Conductor
- Heat, Moisture, Sun, Gasoline and Oil Resistant II
- SIMPULL Technology for Easier Pulling
- Rated THHN and THWN-2. Also rated MTW.
* Estimated stock levels as of Sat, May 9, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
Southwire® SIMpull THHN®
Southwire® SIMpull THHN® copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts. SIMpull THHN® copper conductors are designed to be installed without application of a pulling lubricant.
Southwire® SIMpull THHN®copper conductors are made with soft drawn copper. Combination-unilay stranding. The wire is covered with a tough heat and moisture resistant PVC insulation with an overall nylon jacket utilizing SIMpull® Technology. Marked as THWN-2.
SIMpull® Technology for Easier Pulling.Specifications
General
| AWG No. Conds. | 1 |
|---|---|
| Allowable Ampacities | 70 @ 60C; 85 @ 75C; 100 @ 90C |
| Amps | 85 |
| Application | Used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code |
| Color | Green; Copper |
| Current Rating | 85 A |
| Insulation | 40 mil thickness |
| Insulation Material | PVC |
| Jacket Material | Nylon |
| Jacket Thickness | 7 mils |
| Number of Strands | 19 |
| Resistance | Heat, Moisture, Sun, Gasoline and Oil |
| Sheath Color | Green |
| Stranded/Solid | Stranded |
| Strands per Conductor | 19 |
| Temperature Rating | 194-Degree F |
| Type | THHN/THWN 2 Wire |
| Usage | Building Wire- used in conduit and cable trays for services, feeders, and branch circuits in commercial or industrial applications |
| Volts | 600 |
| Wire | Copper |
| Wire Material | Copper |
| Wire Size | 4 AWG |
Dimensions
| Length | 1 ft |
|---|---|
| Outside Diameter | (Nominal) 322 mils |
| Weight | 154 lbs/1000 ft |
Manufacturing Details
The following information is subject to change without notice
| Country of Origin | US |
|---|---|
| Prop 65 Warning |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
|
| Shop USA | Yes |
Label Information
| Certification, Codes, Standards | ASTM - B3; UL Standards 83 and 758; CSA C22.2 No. 75; NOM-ANCE 90-Degree C; Federal Specification A-A-59544; National Electrical Code, NFPA 70; VW-1; FT1; MTW; RoHS/REACH Compliant; Sunlight Resistant |
|---|
Related Documents
Brochure (PDF)
