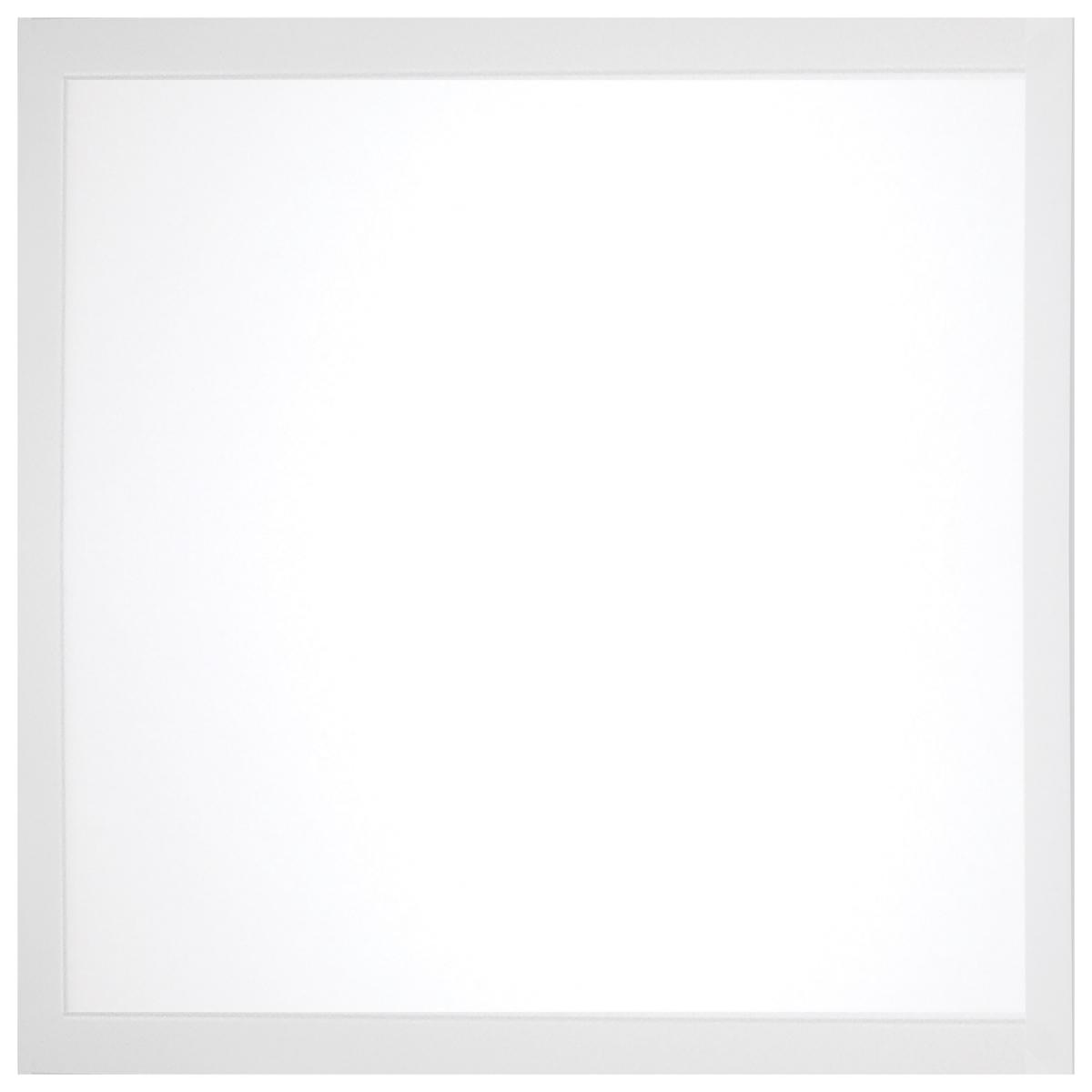

Nuvo® 2-Foot X 2-Foot LED Backlit Flat Panel
- Mfg.#
- 65-571R1
- Sku#
- 2801934
- 3500K/4000K/5000K CCT Selectable
- Backlit LED Technology
- 20W/30W/40W Wattage Selectable
- Flicker Free, Even Light Distribution
- 0-10V Dimmable
* Estimated stock levels as of Sat, Apr 11, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
The Satco LED-backlit panel with ColorQuick technology is a versatile lighting fixture. Through advanced manufacturing, even light distribution is achieved at an even greater cost savings. Satco's ColorQuick and PowerQuick technologies allow for numerous configurations of light in one fixture making it extremely versatile to suit various application needs. From office buildings and schools to doctors offices and hospitals, this panel produces extremely efficient and uniform light with a long maintenance-free life to offer premium value for all your lighting needs.
Specifications
General
| Beam Angle | 120 |
|---|---|
| Bulb Shape | Square |
| Bulb Type | LED |
| CCT (K) | 3500K/4000K/5000K |
| Color | White |
| Color Rendering Index | 80+ |
| Color Temperature | 3500 K To 5000 K |
| Dimmable | Yes |
| Finish | White |
| IOT Enabled | No |
| IP Rating | IP20 |
| Indoor/Outdoor | Indoor |
| Lamps (Qty) | 1 |
| Lens Material | Poly methyl methacrylate (PMMA) |
| Life Cycle | 45.7 yr |
| Light Color | White |
| Location Rating | Damp |
| Lumen Output | 2200L-4600L |
| Lumens | 2200 |
| Material | Aluminum / Steel |
| Operating Temperature | -17C (+1.4F) to +45C (+113F) |
| Rated Hours | 50000 |
| Type | Backlit Flat Panel |
| Volts | 100V-277V |
| Watts | 20W/30W/40W |
Dimensions
| Height | 1-1/2 in |
|---|---|
| Length | 23-3/4 in |
| Weight | 4.85 lb |
| Width | 23-3/4 in |
Manufacturing Details
The following information is subject to change without notice
| Country of Origin | US |
|---|---|
| Manufacturer Warranty | 5 Year Limited |
| Prop 65 Warning |
WARNING: This product can expose you to chemicals including Lead and lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm.
|
| Shop USA | Yes |
Label Information
| Certification, Codes, Standards | FCC Compliant; cETLus Listed; NSF Approved; DLC Approved; RoHS Compliant |
|---|
Related Documents
Brochure (PDF)
Msds (PDF)
Installation Guide (PDF)
