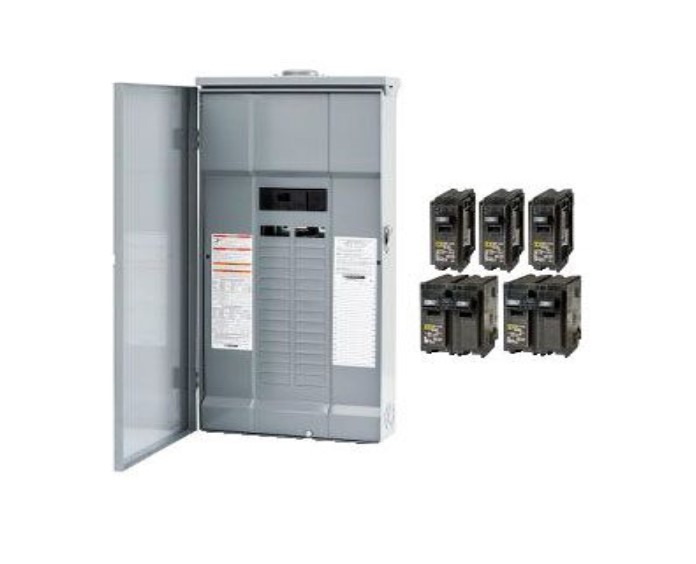

200 Amp Homeline™ Load Center Value Pack
- Mfg.#
- HOM3060M200PRBVP
- Sku#
- 2775583
* Estimated stock levels as of Wed, Mar 25, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
Homeline™ load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline™ load center has a two pole plug on neutral main supply circuit breaker that is rated at 200A 120/240 VAC single phase. Load center is also supplied with a two pole 30A 120/240 VAC circuit breaker and a one pole 20A 120/240 VAC circuit breaker. Homeline™ load center provides a 22 kA breaking capacity. This system provides 30 spaces in a NEMA 3R rain proof enclosure. The electrical connections are box lugs. The box lugs will accept a wire range of 4 AWG to 250 kcmil copper or aluminum wire. This Homeline™ load center has a height of 33.77 inches, a width of 14.76 inches, and depth of 4.52 inches. Homeline™ load centers are UL Listed.
Specifications
General
| Amps | 200 |
|---|---|
| Bus Bar Material | Tin plated aluminum busbar |
| Connection Type | Lugs |
| Cover Type | Surface cover |
| Enclosure Material | Welded galvannealed steel |
| Enclosure Rating | NEMA 3R outdoor |
| Finish | Baked enamel Gray |
| Grounding Type | Grounding bar (ordered separately) |
| Includes | (1) 2P 200A 120/240V AC main supply ready assembled (3) 1P 20A 120/240V AC (2) 2P 30A 120/240V AC |
| Indoor/Outdoor | Outdoor |
| Load Centers & Distribution Type | Main Breaker Load Center |
| Maximum Single Pole Circuits | 60 |
| Maximum Tandem Circuits | 30 |
| Misc | Max short circuit current rating: 22kA |
| Number of Phases | 1 |
| Operating Temperature | 23°F - 104°F |
| Poles | 60 |
| Spaces | 30 |
| Type | Main Breaker Load Center |
| Volts | 120/240 |
| Wire Size | AWG 4 250 kcmil aluminium/copper |
| Wiring Configuration | 3-wire |
Dimensions
| Depth | 4.53 in |
|---|---|
| Height | 33.78 in |
| Width | 14.76 in |
Manufacturing Details
The following information is subject to change without notice
| Country of Origin | USA |
|---|---|
| Prop 65 Warning |
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
|
| Shop USA | Yes |
Label Information
| Certification, Codes, Standards | UL listed file E-6294 |
|---|
