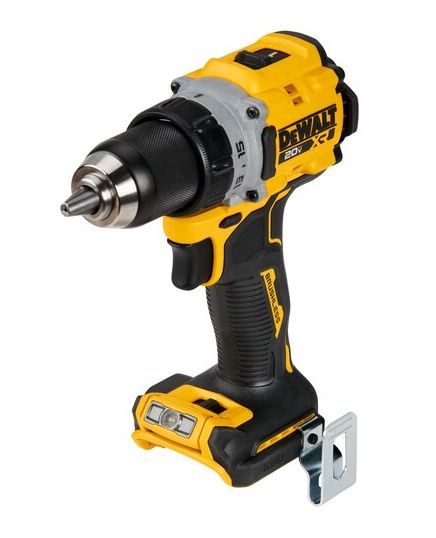

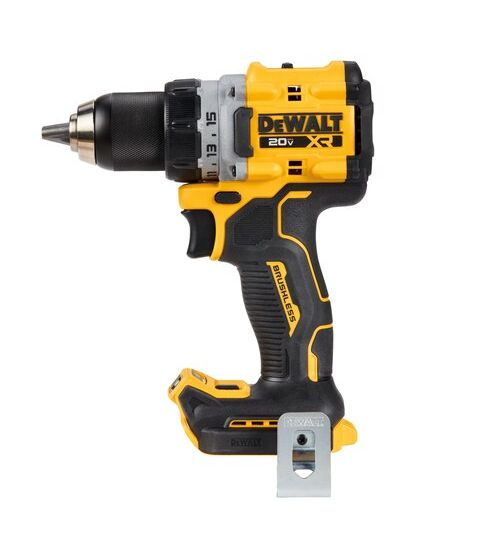

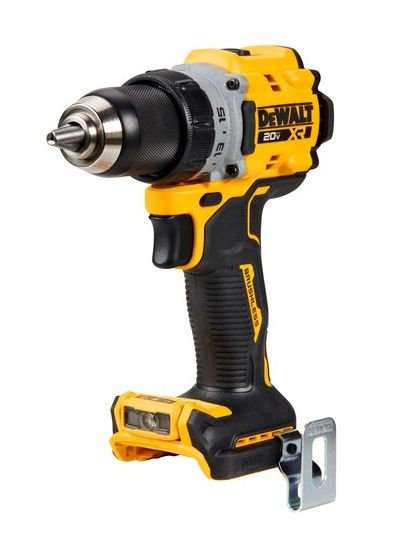

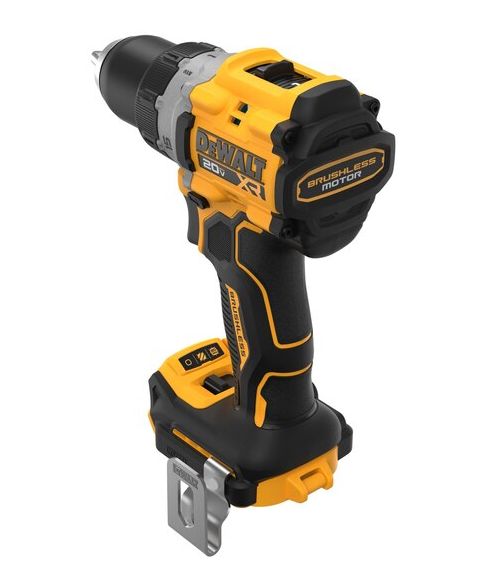

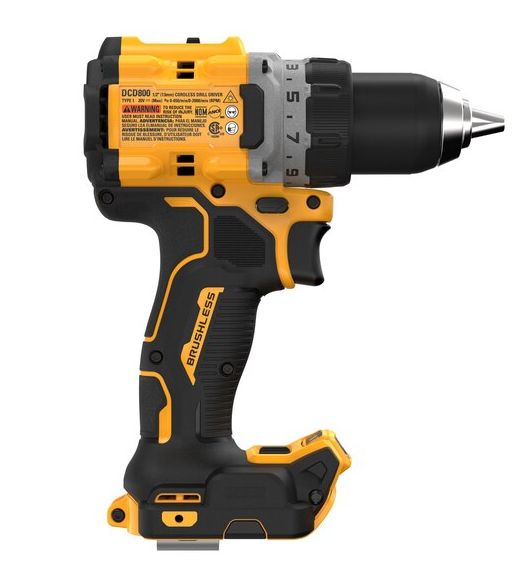

20-Volt 1/2-Inch XR® Brushless Cordless Drill/Driver, Tool Only
- Mfg.#
- DCD800B
- Sku#
- 2740611
- COMPLETE CHALLENGING PROJECTS with up to 40% more UWO** vs. the DCD791B using DCB205 battery or DCBP034 DEWALT POWERSTACK™ battery (sold separately)
- ACCESS HARD TO REACH WORK AREAS: Compact 6.37 in. size is 1/2 in. shorter in length*** compared to the DCD791, tool head only.
- HIGH BIT RETENTION with 1/2 in. metal ratcheting chuck
- PRO-LEVEL SPEED, CONTROL, AND PRECISION: High-speed transmission with variable trigger and 2 speed settings (0-650/0-2,000 rpm)
- BRIGHTEN DARK WORK AREAS: Adjustable 3-Position, 3 Mode LED with up to 70 Lumens, including LED spotlight mode which features a 20-minute shutoff function for extended work time in low-light spaces
* Estimated stock levels as of Tue, Mar 31, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
Engineered for professional-grade performance, the 20V MAX* XR® Brushless 1/2 in. Drill/Driver delivers the power and speed needed for heavy-duty drilling and fastening applications. The high-output brushless motor helps you tackle demanding projects with up to 40% more Unit Watts Out compared to the DEWALT DCD791B using DCB205 battery or DCBP034 DEWALT POWERSTACK™ battery (sold separately)**. Complete a wide range of drilling jobs with this versatile power tool, which outputs up to 2,000 rpm when drilling into wood and metal. This lightweight, well-balanced Drill/Driver was built compact to help users comfortably work in tight spaces for extended periods of time. The 3-position, pivoting LED is designed to enhance visibility in dimly lit work areas with its 3 mode settings and up to 70 Lumens of brightness.
* Maximum initial battery voltage (measured without a workload)
Specifications
General
| Bare Tool/Kit | Tool Only |
|---|---|
| Battery Included | No |
| Battery Voltage | 20 V |
| Charger Included | No |
| Chuck Size | 1/2 in |
| Chuck Type | Keyless |
| Clutch Settings | 15 |
| Corded/Cordless | Cordless |
| Motor | Brushless |
| Nominal Volts | 20 |
| RPM | 0-650 / 0-2000 |
| Type | Drill Driver |
Dimensions
| Height | 8.14 in |
|---|---|
| Length | 6.37 in |
| Width | 2-1/2 in |
Manufacturing Details
The following information is subject to change without notice
| Country of Origin | MX |
|---|---|
| Manufacturer Warranty | 3 Year Limited |
