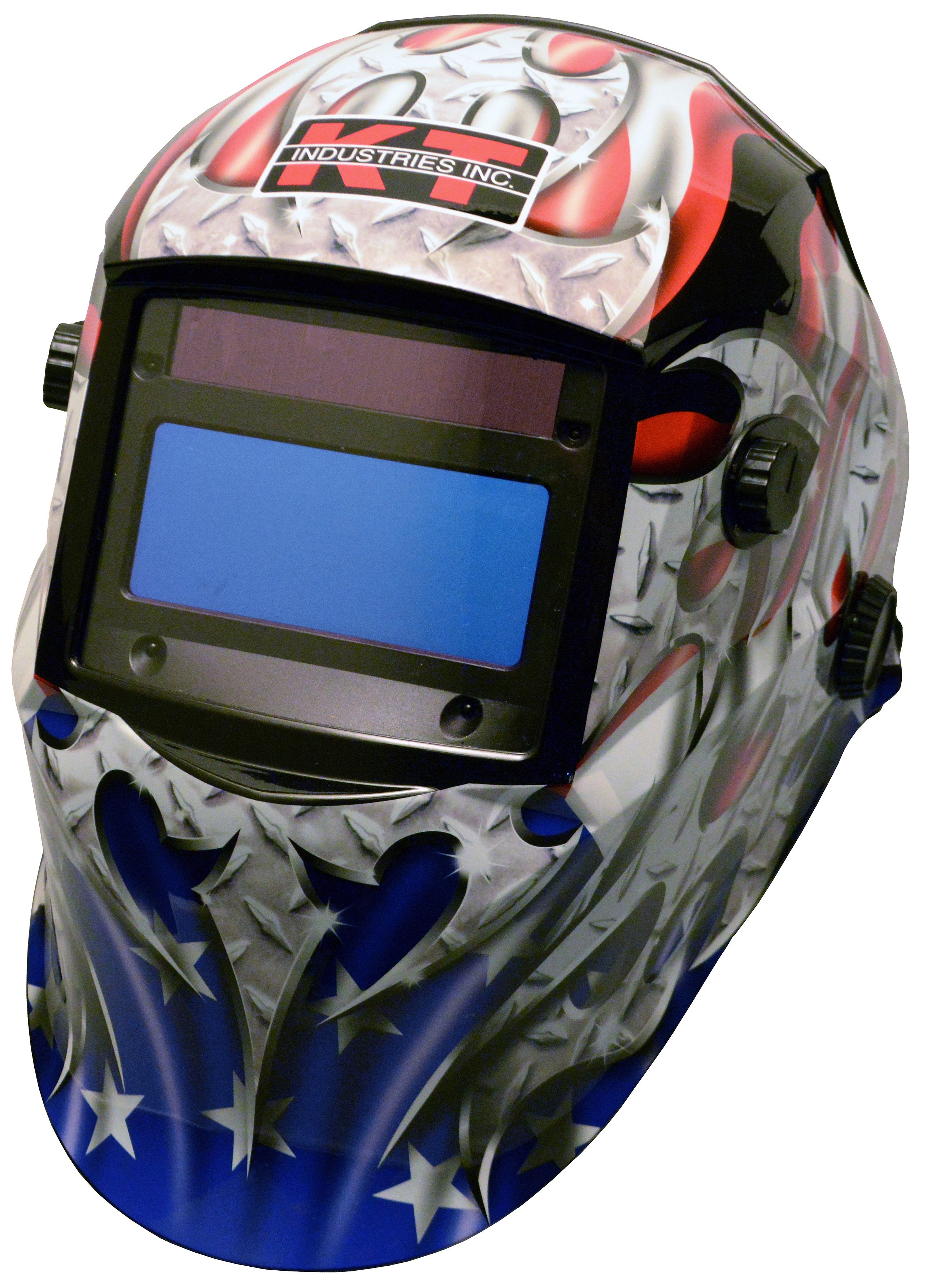

American Steel Auto Darkening Welding Helmet
- Mfg.#
- 4-1052
- Sku#
- 2740439
- 1/30,000 Second Response
- Variable Shade 9-13
- Replaceable Lenses
- Welding or Grinding Mode
- U/V Protection at all times
* Estimated stock levels as of Thu, May 14, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
Auto-Darkening's best value!
Sturdy construction helmets are made of lightweight, molded nylon with a ratcheting headgear and moisture absorbing headband lining. User can customized fit with a special up/down, forward/backward headband mechanism, reducing fatigue of the head and neck. Sensitivity adjustment knob is located outside the helmet making it more convenient to adjust. Upon striking an arc, the filter automatically changes from clear to dark in only 1/30,000 of a second. Four optical sensors for better detection of the arc. Operator can set the delay time for the filter screen to change from dark to clear state - short, medium or long. Replacement lenses are available making changing scratched or damaged lenses fast and easy! Dual purpose welding or grinding mode. UV/IR Protection provide full protection for the user’s eyes and face, even in the light state at up to Shade 16 (DIN) at all times. Increased field of vision makes it easier to see the working parameter. Now measures 3.86” x 1.69”. Helmet is powered by high performance solar cells, and two long lasting lithium-ion batteries. ADF lens conserves power by going to standby after 5 minutes of inactivity. Conforms with ANSI and CE safety standards.
Specifications
General
| Cartridge Dimensions | 4.33x3.54x.035 in |
|---|---|
| Delay Time | Long-Middle-Short (Can Vary 0.3~0.9 sec.) |
| Functions | Welding or Grinding |
| Helmet Material | High Impact Resistant Polyamide (Nylon) DIN EN 175 B CE |
| Number of Sensors | 4 |
| Operating Temperature | 23°F to 131°F (-5°C to 55°C) |
| Power On/Off | Fully Automatic |
| Power Supply | Solar & Lithium Battery (CR2450 3V) |
| Reaction Time | 1/30,000 sec. (0.000033 sec.) |
| Sensitivity | User adjustable for different welding types |
| Storing Temperature | -4°F to 158°F (-20°C to 70°C) |
| Type | Welding Helmet |
| UV Protection | Up to Shade 16 at All Times |
| Variable Shades | 9 to 13 |
| Viewing Area | 3.86x1.69 in |
Label Information
| Certification, Codes, Standards | Conforms with ANSI and CE safety standards |
|---|
Related Documents
Brochure (PDF)
