Engine Drill — 42.7 cc, 1/2 in. Chuck, 30.2:1 Gear Reduction, 21.6 lb.
- Mfg.#
- EDR-260
- Sku#
- 2642809

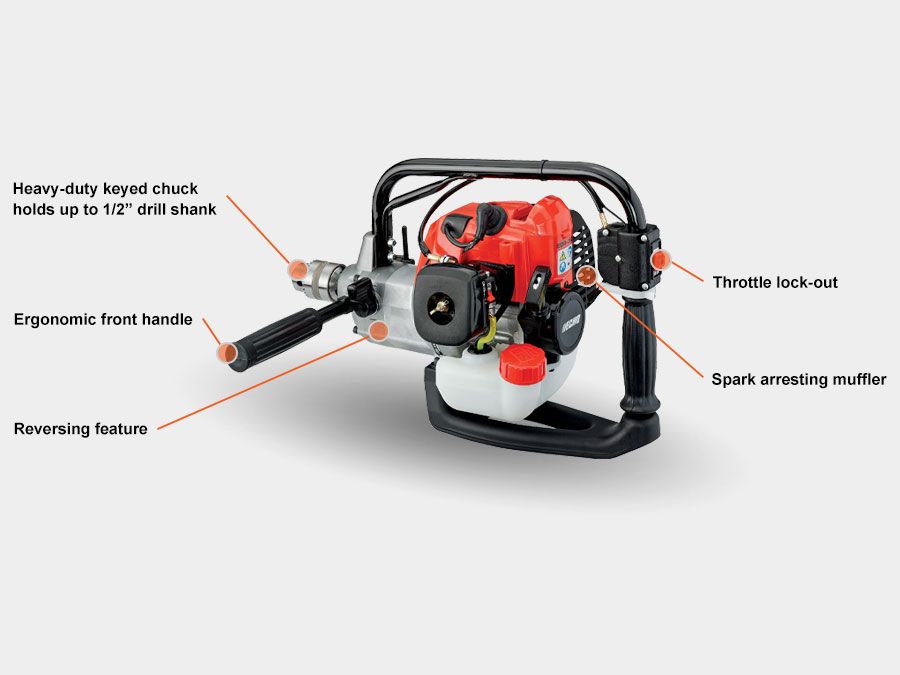

- Heavy-duty 17.1:1 gear reduction- Converts engine power into tough drilling torque
- Reversible function For operator convenience and versatility
- 25.4 cc professional-grade, 2-stroke engine For outstanding performance and durability
- Heavy-duty keyed chuck Holds up to 1/2 in. drill shank
- All-position diaphragm carburetor with purge pump Allows operation at any angle
* Estimated stock levels as of Sun, May 17, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
This is a 1.4-horsepower, 1/2-inch chuck gas-powered reversing drill built for contractors and tradespeople who need reliable, high-torque drilling where cords and batteries won’t reach. Its professional-grade 25.4 cc 2-stroke engine and heavy-duty 17.1:1 gear reduction convert engine power into tough drilling torque, while the reversible function adds versatility for installing anchors, driving long bits, or clearing stubborn fasteners. The heavy-duty keyed chuck accepts up to a 1/2-inch drill shank, and an all-position diaphragm carburetor with purge pump lets you work at any angle without hesitation. An ergonomic front handle improves comfort during extended use, and a throttle lock-out helps prevent accidental drill bit rotation. Rugged and purpose-driven, the ECHO EDR-260 is designed for demanding fieldwork where consistent power and control matter.
Not for sale in California.
Specifications
General
| CC Displacement | 25.4 |
|---|---|
| Carburator | Diaphragm type |
| Color | Orange, Black |
| Engine Displacement | 1.55 cu. in |
| Engine Type | Air cooled two stroke single cylinder |
| Fuel Tank Capacity | 14 |
| Fuel Type | 89 octane unleaded gas |
| Gear Ratio | 17:1:1 |
| Handle Color | Black |
| Horsepower | 1.4 |
| Ignition System | Flywheel magneto - CDI system |
| Max Cutting Diameter | 1/2-in Standard |
| RPM | 0-650 Forward/Reverse |
| Spark Plug | NGK BPM8Y |
| Starter Type | Recoil starter |
| Starting System | Standard |
| Torque | 12 |
| Type | Engine Drill |
Manufacturing Details
The following information is subject to change without notice
| Country of Origin | USA |
|---|---|
| Manufacturer Warranty | 5 year consumer |
| Prop 65 Warning |
WARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood. *The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.
|
| Shop USA | Yes |
Dimensions
| Dimensions | 17.72 × 13.39 × 11.42 in |
|---|---|
| Weight | 10.7 lb -- Without drill bit |
