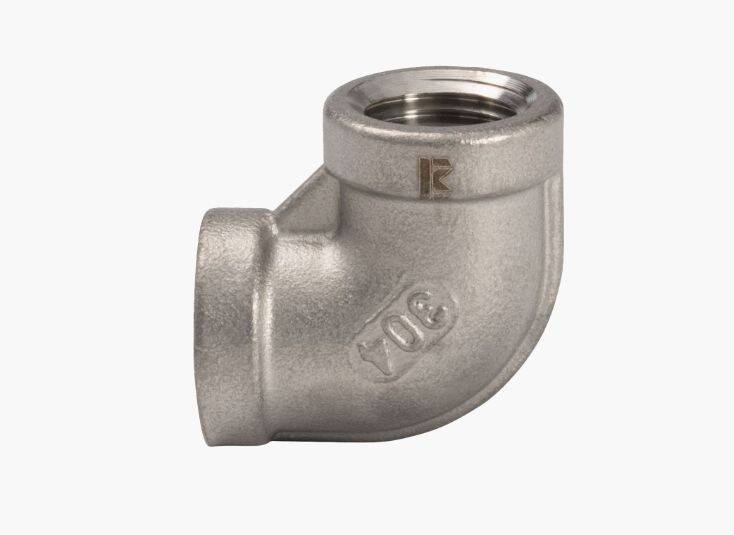

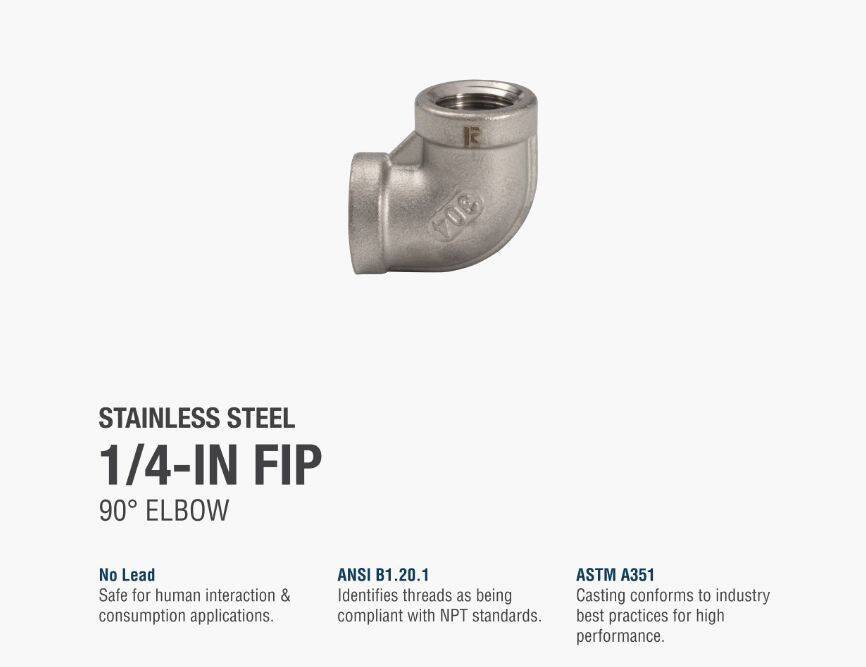

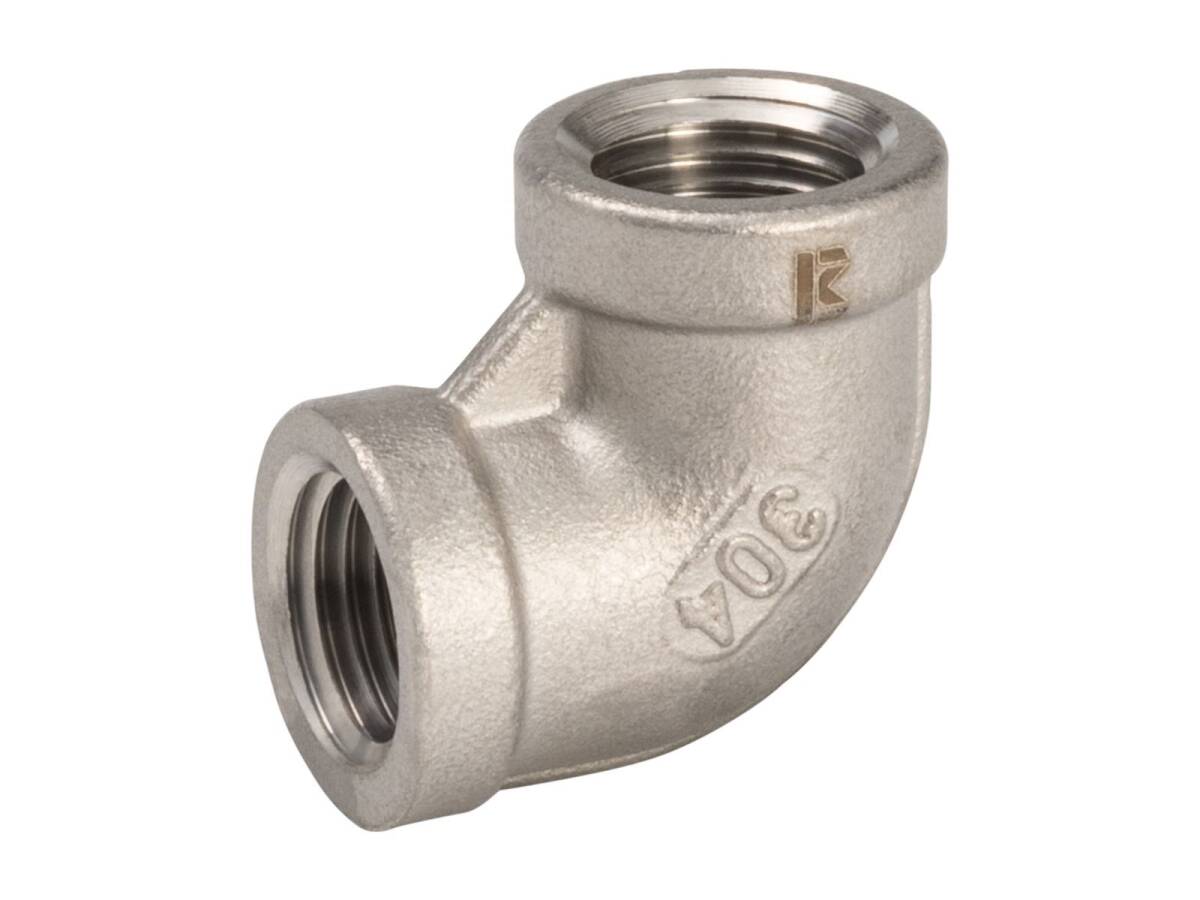

ProLine 1/4 in. FPT x 1/4 in. FPT Stainless Steel Elbow Fitting, 90° - Threaded, 1-Pack
- Mfg.#
- SF-727
- Sku#
- 2639581
* Estimated stock levels as of Thu, Apr 2, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
Elbows provide an excellent method of diverting a plumbing line without the risk of causing kinks in the piping line. Stainless Steel 304 is a trusted material that supports sustainable building movements due to its recycling ability and is increasingly preferred for use in construction. This fitting can withstand a wide range of corrosive materials and chemicals and can be easily cleaned for hygienic environments. A unique feature of stainless steel is the increased strength and durability of this fitting compared to most common brass fittings.
Specifications
General
| Application | Easy to sterilize and clean for hygienic conditions, such as hospitals or restaurants |
|---|---|
| Elbow Angle | 90° |
| Fitting Material | Stainless Steel 304 |

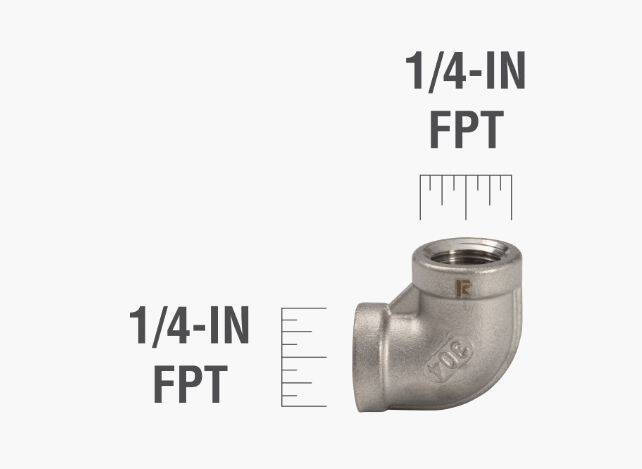

| Inlet Size (Elbows) | 1/4 in. |
| Inlet Type (Elbows) | FPT |
| Max Pressure (PSI) | 300 |
| Max Temperature Rating | 392° F |
| Min Temperature Rating | -4° F |
| Outlet Size (Elbows) | 1/4 in. |
| Outlet Type (Elbows) | FPT |
| Pack Qty | 1 |
| Series | ProLine |
| Thread Type | Threaded |
| Type | Stainless Steel Elbow Fitting |
| Working Temperature Rating | 70° F |
Dimensions
| Height | 1.12 in |
|---|---|
| Length | 1.12 in |
| Weight | 0.08 lb |
| Width | 0.74 in |
Manufacturing Details
The following information is subject to change without notice
| Manufacturer Warranty | 1-Year Limited |
|---|---|
| Prop 65 Warning |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
|
Label Information
| Certification, Codes, Standards | ANSI/ASME B1.20.1,MSS 114,ASTM A351 |
|---|
