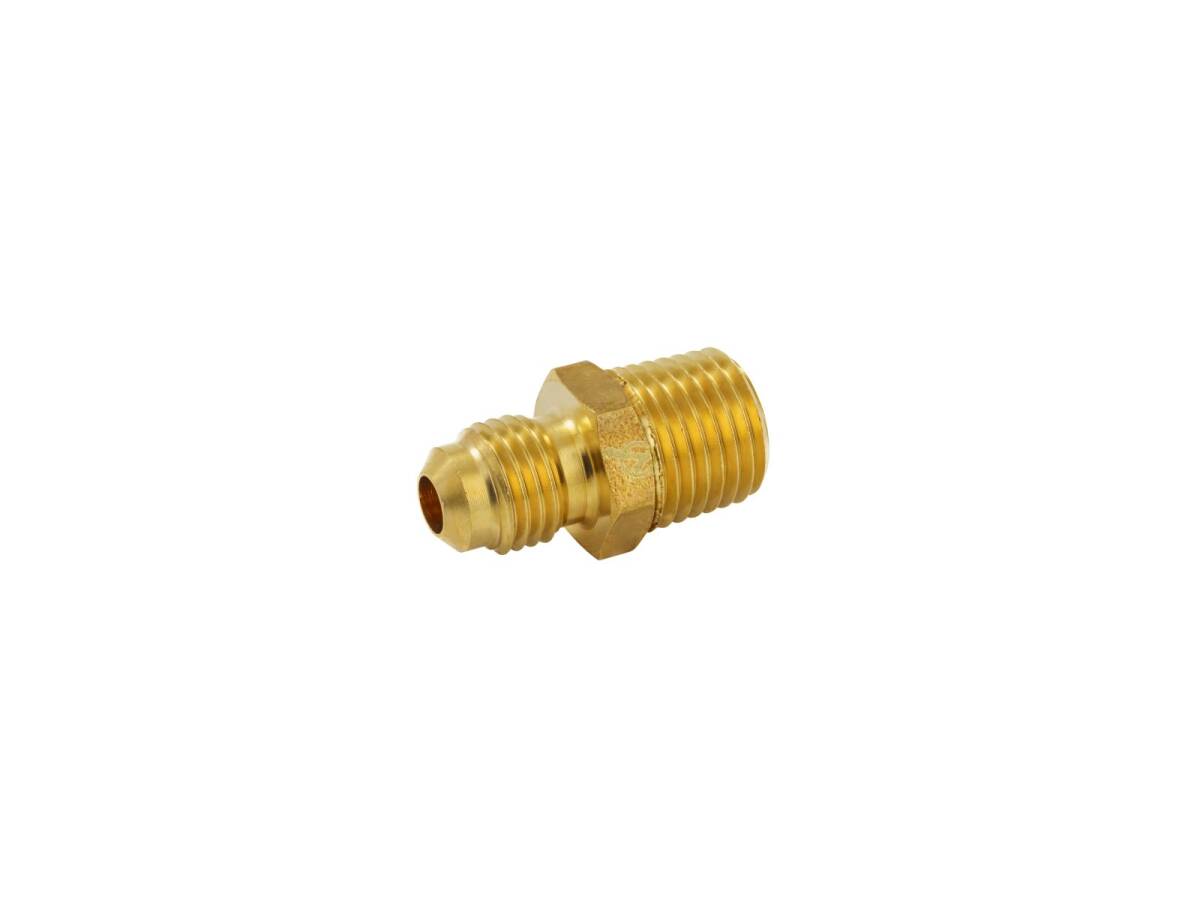

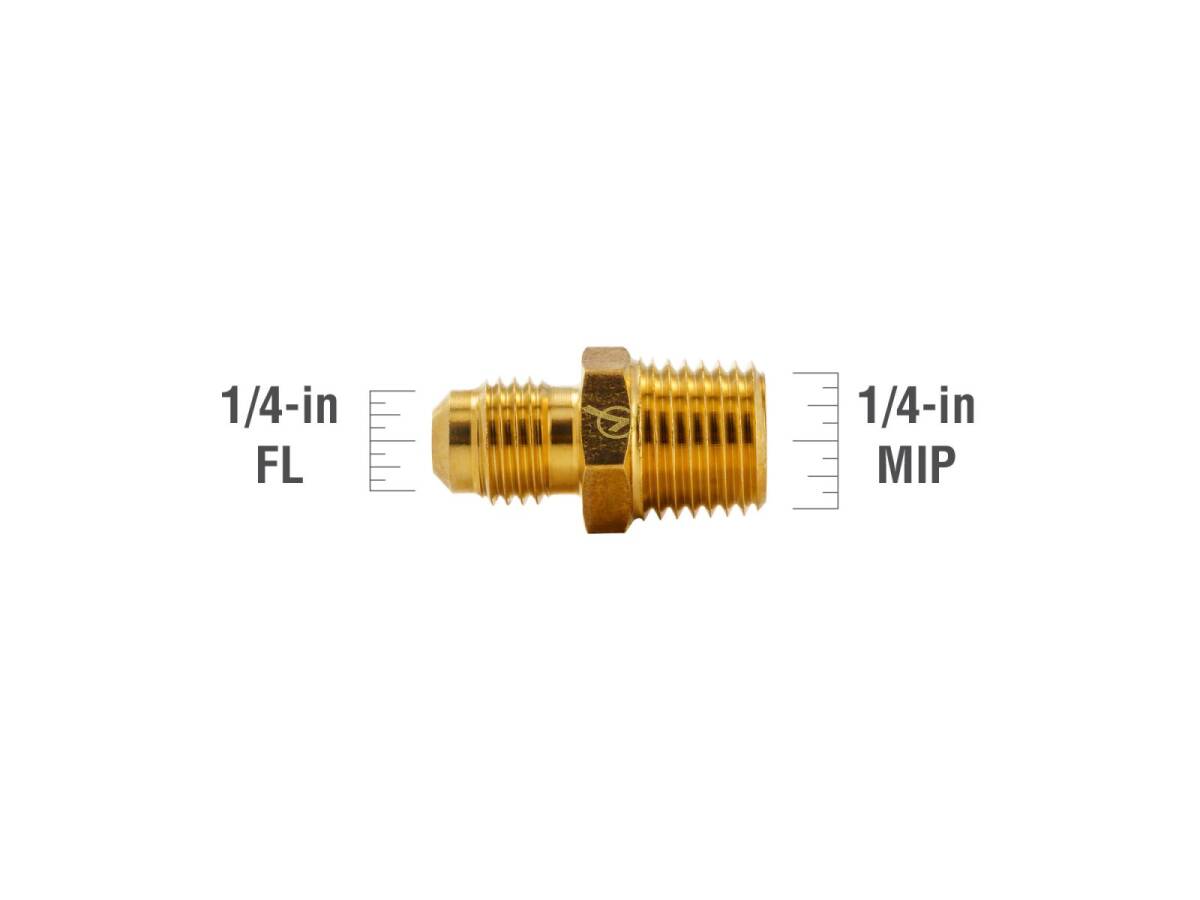

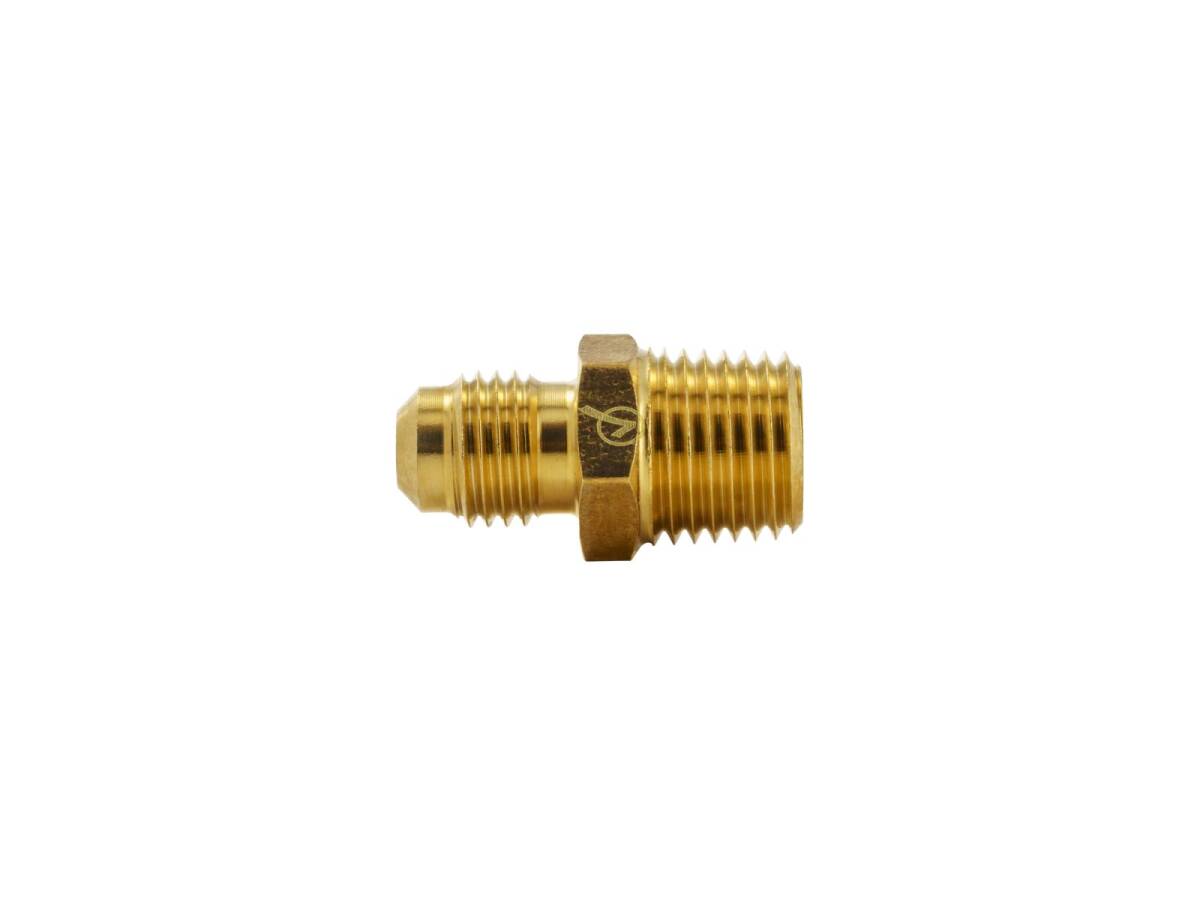

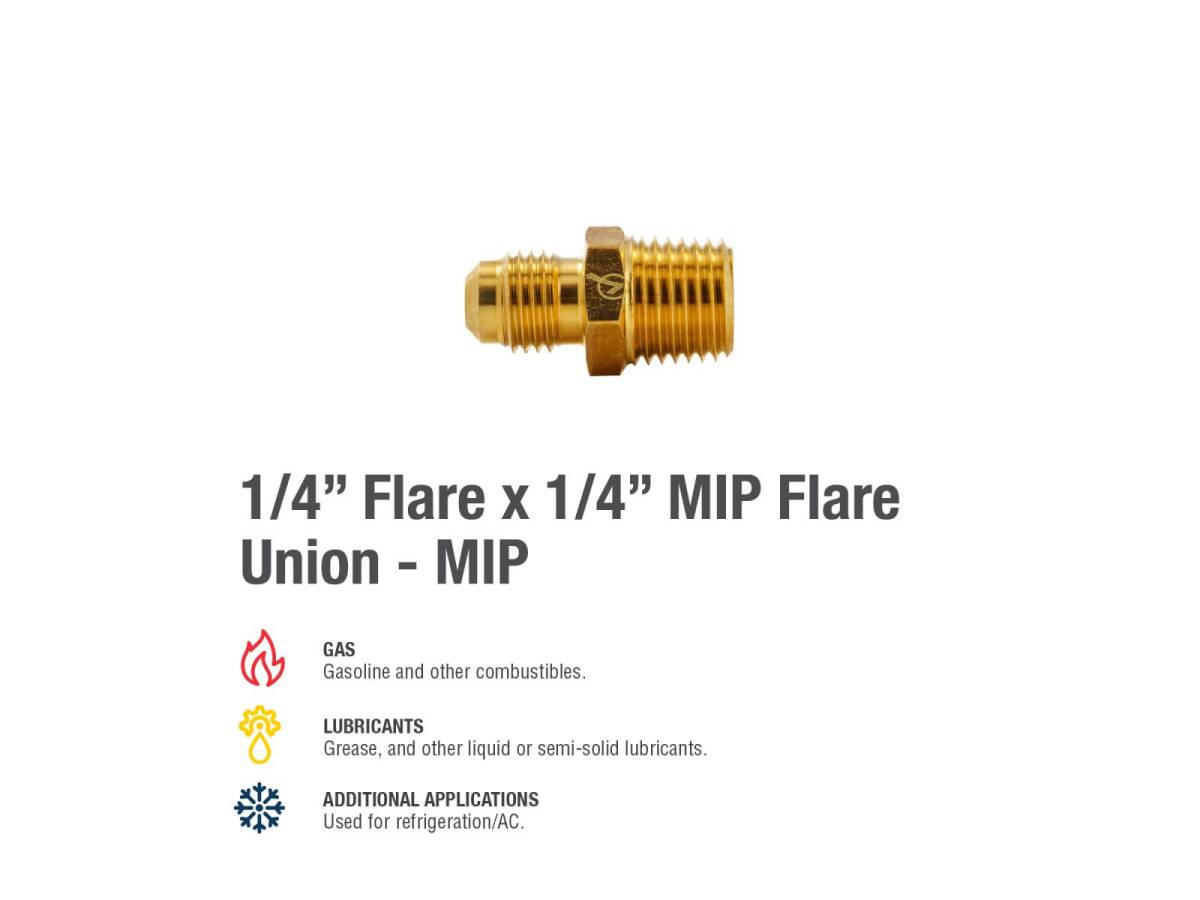

1/4-Inch MIP X 1/4-Inch Flange, Brass Union Fitting
- Mfg.#
- FL-80G
- Sku#
- 2635555
- Links two lengths of tubing into one continuous line
- Constructed of durable, lead-free brass
- Brass is corrosion-resistant and can be used indoors and outdoors
- Applications Include grease, natural gas, refrigeration and AC
- Compatible with aluminum tubing, brass pipe, copper tubing & steel hydraulic tubing
* Estimated stock levels as of Sat, Apr 11, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
Unions connect two lengths of tubing together, further lengthening the plumbing line. Constructed of lead-free brass, brass flare fittings are ideal for grease, natural gas, and refrigeration/ac applications. The brass construction makes this fitting corrosion-resistant and is able to be used indoors and outdoors. Flare fittings can be used in conjunction with aluminum tubing, brass pipe, copper tubing & steel hydraulic tubing.
Nominal information shown.
Specifications
General
| Application | Links two lengths of tubing into one continuous line |
|---|---|
| Connection | Flare X MIP |
| End Connection | Flare |
| Indoor/Outdoor | Indoor/Outdoor |
| Inlet Connection | FLM |
| Inlet Diameter | 0.25 in |
| Material | Lead-Free Brass |
| Max Temperature | 180º F |
| Outlet Connection Size | 0.24 in |
| Outlet Connection Type | MIP |
| Resists | Corrosion |
| Suitable for Use With | Aluminum tubing, brass pipe, copper tubing and steel hydraulic tubing |
| Temperature Range | 32º - 180º F |
| Type | Flare Union |
| Usage | grease, natural refrigeration, AC |
| Working Pressure | 100 psi |
Dimensions
| Height | 0.7 in |
|---|---|
| Length | 1.1 in |
| Nominal Size | 1/4 in |
| Weight | 0.04 lb |
| Width | 0.7 in |
Manufacturing Details
The following information is subject to change without notice
| Manufacturer Warranty | 1 yr Limited |
|---|---|
| Prop 65 Warning |
This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
|
Label Information
| Certification, Codes, Standards | AB 1953 |
|---|
